NTI RACKMUX 15" USB & PS/2 KVM Drawer
RACKMUX-V15
The NTI RACKMUX¨ RACKMUX-V15 is a USB + PS/2 KVM Drawer combines a 15" rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.
NTI RACKMUX Rackmount LCD Features:
- Compatible with USB and PS/2 computers.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large padded wrist-rest (RACKMUX-V15-N)
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Optional mounting bracket available for two-post style telco rack (sold separately)
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position
- Internal cable arm provides proper cable management for sliding the drawer open and closed.
- Equipped with On Screen Display (OSD).
- Front panel security lock.
- Front panel USB port to connect an external USB device, such as a flash drive.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Also available with 17" Active Matrix LCD flat panel VGA monitor (RACKMUX-V17)

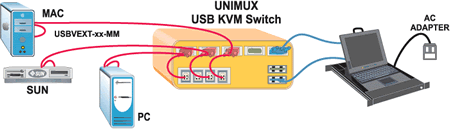

NTI RACKMUX Application Diagram
Included Cables:
-
6-foot 15-pin HD VGA male to male cable included.
-
6-foot USB Type A male to USB Type B male cable included.
-
6-foot dual 6-pin miniDIN male to male keyboard/mouse cable included.
-
6-foot power supply cable included
NTI RACKMUX-V15 Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 19 in. (48 cm.) |
| Depth | *21.9 in. (55.6 cm.), Adj. from 22" to 39" |
| Weight | 26 lbs. (12 kg.) |
| Environmental | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 20 to 90% non-condensing RH |
| Power | |
| Supply | 110 or 220 VAC at 50 or 60 Hz via IEC connector |
| Consumption | 30W |
| Maximum Inrush Current | 30A |
| Monitor | |
| Style | Forward-folding 15" Active Matrix LCD flat panel VGA monitor |
| Video Resolution | 1024x768 |
| Frequency | Horizontal: 31 to 80 KHz Vertical: 55 to 76 Hz |
| OSD Controls | Brightness, Contrast, Phase, Pitch, Horz- and Vert-center Alignment, Zoom and Color Adjustment |
| Brightness | 250 nits |
| Typical Contrast Ratio | 500:1 |
| Supported Protocols | DDC1 and DDC2B |
| Devices | |
| Keyboard | 83-key keyboard with wrist-pad |
| Mouse | 3-button touchpad |
| Connectors | |
| Front Panel | USB 1.1 port to connect external USB devices |
| USB | Female type A (KVM drawer must be connected to a USB-enabled computer) |
| MTBF | 41,704 hrs |
| Regulatory Approvals | CE, RoHS |
*Handle adds an additional 1.5" to the depth when monitor is in closed position
Question: Is this unit still available for sale?
Answer: Thank you for your inquiry,
The NTI Rackmux-V15 console drawer is an active SKU that is available to order. There is a couple of day lead time for shipment.
You can order that unit online, or by contacting your KVM Switches Online sales reprasentative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
Answer: Thank you for your inquiry,
The NTI Rackmux-V15 console drawer is an active SKU that is available to order. There is a couple of day lead time for shipment.
You can order that unit online, or by contacting your KVM Switches Online sales reprasentative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
