Raritan RAV-IP Fiber HDMI KVM Extender Kit, Multi-mode



Recommended replacement: ADDER INFINITY Digital KVM Matrix
Alternative options: Contact Us

Raritan RAV-IPDS-FIBER-MM-EXT is a Multi-mode Fiber HDMI Extender Kit including a RAV-IP Transmitter (RAV-IPDS-ENC), a Receiver (RAV-IPDS-DEC), and two multi-mode dual-fiber SFP transceivers.

Raritan's RAV-IP the most flexible AV-over-IP system with Cat5 and fiber connections for both AV and computer devices. The RAV-IP system enables a wide range of applications through a few basic, yet powerful configurations: (1) Point-to-point extension to extend an AV device or computer to another location, (2) Single-channel video distribution to multiple destinations, and (3) Multi-channel switching of multiple video sources to multiple destinations.

Point to point AV Extension Example
RAV-IP Point-to-point Extension Example

Multi-Channel AV Distribution Example

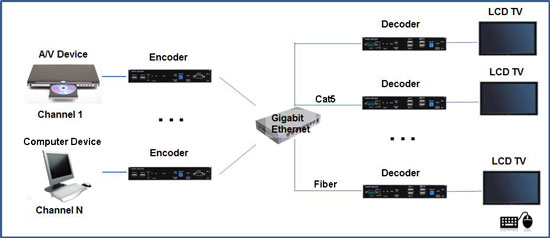

RAV-IP Multi-Channel A/V Distribution Example

  • Works as a networked Matrix KVM, or point-to-point AV / KVM Extender.
  • High quality 3 frame latency with low bandwidth 1080P HDMI-over-IP (JPEG like compression).
  • HDMI in, HDMI out or DVI-I out (digital and analog signals) with audio, USB 2.0, IR, serial and Virtual Media support
  • Supports both Cat5 up to 330ft (100 m) and fiber connections up to 6.2 miles (10 km).
  • Simple Control Options - Switch channels via rotary dial or included remote control; AV devices via IR or serial; Computers via USB keyboard and mouse.
  • Installs out of the box with minimal setup requirement.
  • Easy to expand - just add additional encoders and decoders.
  • Does not require an expensive A/V control system - Uses low cost non-proprietary Cat5/6 cable, fiber, and Ethernet switches.

For more information regarding the full Raritan AV-Over-IP Solution:

Raritan RAV-IPDS-FIBER-MM-EXT Specifications
Video Input Connector1 x HDMI Type A 19-pin, female, lockingN/A
Video Output Connector1 x HDMI Type A 19-pin, female, loopback, locking1 x HDMI Type A 19-pin, female, locking
1 x DVI-I , female (non-HDCP video only)
Audio Line Input1 x 3.5mm mini-stereo jackN/A
Audio Line Output1 x 3.5mm mini-stereo jack, with loopback port1 x 3.5mm mini-stereo jack
Mic InputN/A1 x 3.5mm mini-stereo jack
USB Host Interface1 x USB Type B, female, USB 2.0N/A
USB Device ConnectorsN/A4 x USB Type A, female, 3 x USB 2.0, 1 x USB 1.1
RS-232 Connector1 x DB-9 female1 x DB-9 male
IR Emitter1 x 3.5mm mini-mono jack1 x 3.5mm mini-mono jack
IR Extender1 x 3.5mm mini-stereo jack1 x 3.5mm mini-stereo jack
Ethernet Connectors1 x RJ-45, shielded
1 x SFP slot for Fiber Module (single mode / multimode)
1 x RJ-45, shielded
1 x SFP slot for Fiber Module (single mode / multimode)
Channel Selector16 Channel Rotary Switch or IR Remote16 Channel Rotary Switch or IR Remote
Link Indicator1 x LED, green1 x LED, green
Power Indicator1 x LED, blue1 x LED, blue
USB IndicatorN/A1 x LED, amber
Power Supply5V DC, 3A, locking5V DC, 3A, locking
Unit SpecificationsTransmitterReceiver
HDMI Video ResolutionUp to 1080p@60Hz, 720p 3DUp to 1080p@60Hz, 720p 3D
PC DVI ResolutionUp to 1920x1200@60HzUp to 1920x1200@60Hz
HDMI Audio InputUp to 7.1 ch LPCM, DTS, DolbyUp to 7.1 ch LPCM, DTS, Dolby
CAT5 DistancePoint to Point 330 ft (100 m)Point to Point 330 ft (100 m)
Fiber DistanceMultimode - 1804 ft (550 m)
Single - 6.2 mi (10 km)
Multimode - 1804 ft (550 m)
Single - 6.2 mi (10 km)
RS-232 Baud Rate300 - 230,400 bps
Default 115,200 bps
300 - 230,400 bps
Default 115,200 bps
IR Control Pass Thru20-60Khz, two way IR pass-thru20-60Khz, two way IR pass-thru
Power Adapter5V DC, 3A5V DC, 3A
Power Consumption10 Watts (maximum)10 Watts (maximum)
Operating Temperature32-104°F (0-40°C)32-104°F (0-40°C)
Storage Temperature-4~122°F (-20~50°C)-4~122°F (-20~50°C)
Dimensions7.68" (195mm)  x 1.26" (32mm) x 4.49" (114mm)7.68" (195mm)  x 1.26" (32mm) x 4.49" (114mm)
Weight3.97 lbs. (1.8 kg)3.97 lbs. (1.8 kg)
