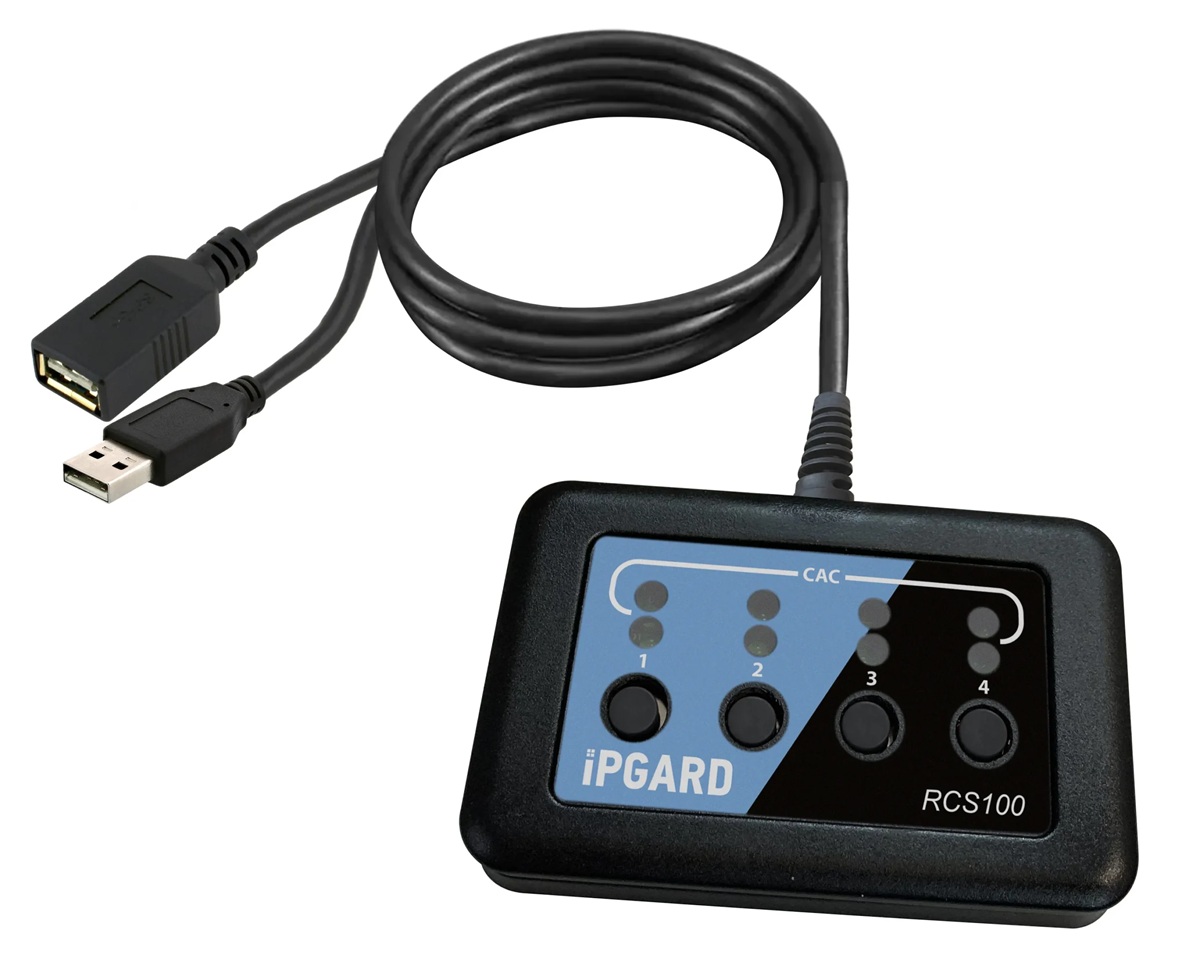

The SmartAVI KVM Remote Control revolutionizes the KVM user experience by reducing workspace clutter and enhancing functionality. By allowing the KVM unit to be neatly placed away from the user's desk, it significantly declutters the workspace. This remote control features a convenient USB connection for keyboard or mouse integration, making it easy to use. It provides a clear and simple way to switch channels and visibly see the channel position, ensuring effortless control.
No need for third-party solutions or programming headaches. The SmartAVI KVM Remote Control is plug-and-play, compatible with both SmartAVI's secure and commercial KVM switches, providing a seamless and efficient user experience.
- Compatible with any new iPGARD or SmartAVI switch from the existing NIAP PP 4.0 Certified Secure KVM and KM line
- Also Compatible with SmartAVI's "SM" Commercial KVM Switches!
- Support for Keyboard or Mouse extension to control the connected PCs
- Easily switch between channels and activate CAC up to 100 ft away from the switch with USB extenders
- Instant synchronization with front panel indicators on the switch
- Up to 4 channels available
- 15 ft USB extension with attached cable and up to 100 ft with USB extenders

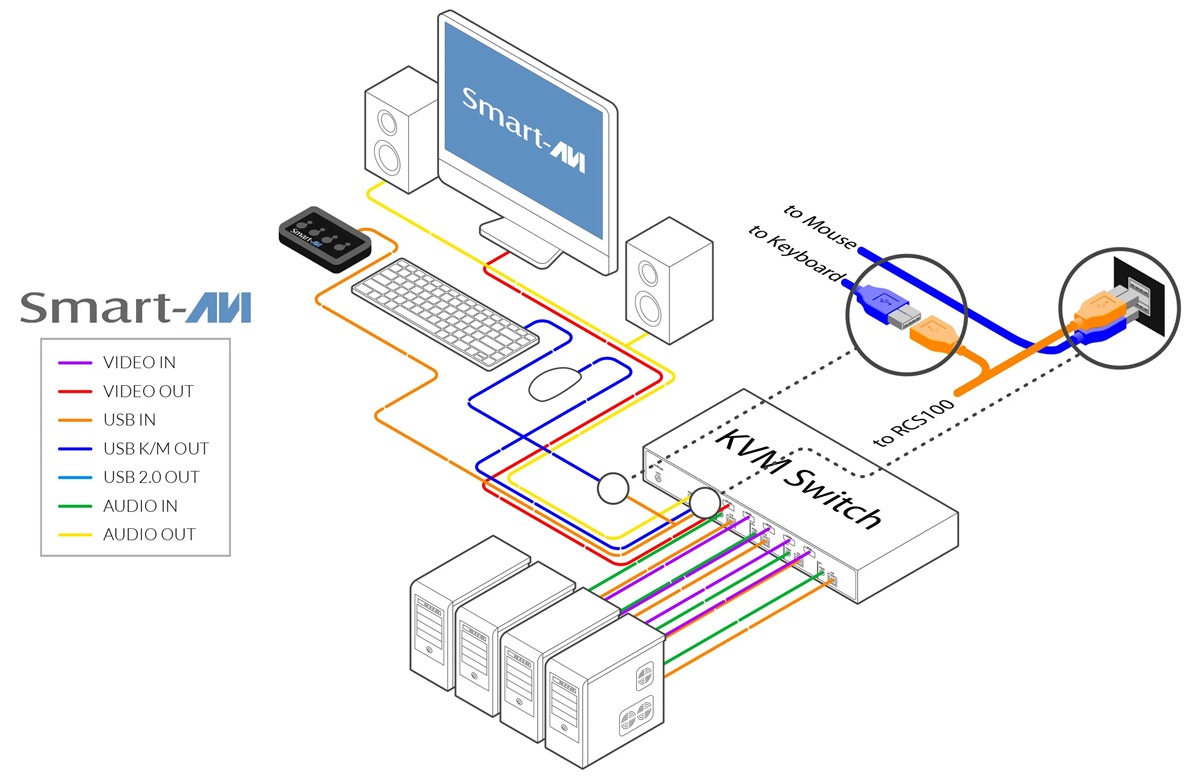

A remote KVM controller that connects to an existing NIAP PP 4.0 secure KVM or SmartAVI SM-series switch and enables keyboard and mouse control from a distance. It supports up to 4 channels, allows switching and CAC activation from up to 100 ft away via USB extender, and requires only a standard USB connection.
RCS-100-S Specifications:
| USB | |
| Signal Type | USB 1.1 and 1.0 keyboard/mouse only |
| USB Type A Inputs | Connection to KVM |
| User Console Output Interface | (1) USB Type-A for keyboard or mouse connection only |
| User Console Output Interface | (1) USB Type-A for keyboard or mouse connection only |
| OTHER | |
| Dimensions | 3.25" L x 2" W x 0.5" H |
| Weight | 0.2 lbs |
| Operating Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% (No Condensation) |

UPC 686911124464
EAN 0686911124464
