The SmartAVI  RGB2VGA is an RGB to DVI/VGA converter.

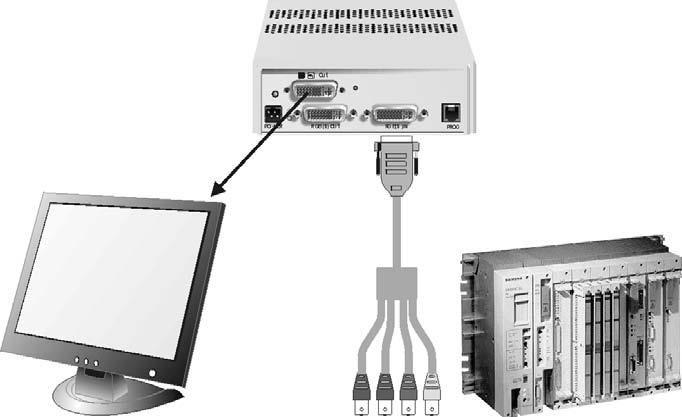

SmartAVI RGB2VGA Diagram

SmartAVI RGB2VGA Features and Benefits:

  • Resolution from 512x256 up to 1280x1024 and respectively HSYNC from 15kHz -85kHz
  • Output Signals--VGA or DVI auto sensing; optional the RGB(S) input signal through additional adaptor
  • Video to DVI/VGA conversion option using an additional adapter
  • EGA to DVI/VGA conversion option using an additional adapter cable
  • Supports the traditional VGA standard and new DVI standard
  • Rackmount options (19"): Mount up to 3 devices in 19"/1U or up to 6 devices in 19"/2U. This saves rack space.
  • Using an additional adapter, it is possible to use the RGB(S) input signal additionally (e.g., for video printer)
  • Using optional adapters, you can also display EGA signals on a VGA or DVI monitor

SmartAVI RGB2VGA Specifications:

Depth 1.61 in (41 mm)
Width 6.69 in (170 mm)
Length 5.24 in (133 mm)
Output Interface DVI, VGA
Output Resolution 1280x1024, 1024x768, 800x600, 640x480 @ 60 Hz
1280x1024, 1024x768, 800x600, 640x480 @ 75 Hz
Power Supply Universal Switchmode PSU (90-240V Input)
UPC / EAN Barcode icon
UPC 813280022811
EAN 0813280022811
