Powered Rack/Chassis w/Dual DVI-D, Audio, USB, CAT6 STP Transmitter, 4 card package

RK-DVX2U-A-TX4S

$2,699.00$2,103.12
Save $595.88
FREE Shipping on orders over $100
smartavi_madeinusa

The 4-Port RK-DVX2U-A Transmitter is the perfect solution for extending dual DVI-D displays, Audio and USB 1.1 devices to a remote location up to 225 feet away. It is the ideal way to consolidate up to 4 workstation computers into one location. It is fully compatible with MAC, PC and LINUX DVI standards. The RK-DVX2U-A features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flash Drives, Printers, Cameras, Scanners, etc. may all be used.

Applications

  • Medical Applications
  • Industrial Work Areas
  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios

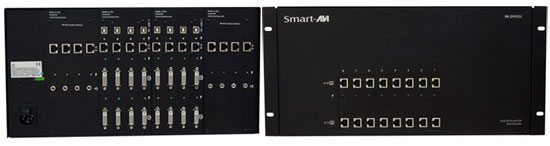

product
Back                                                 Front

Features

  • Supports up to 2 DVI-D single-link sources
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Distance: 225 feet with four CAT6 STP cables
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Automatic DDC Learning
  • Supports all USB 1.1 Devices Transparently
  • (Flash Drives, Printers, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack Mountable Solution
  • Data recovery for digital video
  • Supports 1.5 and 12Mbps data rates
  • Plug-and-play

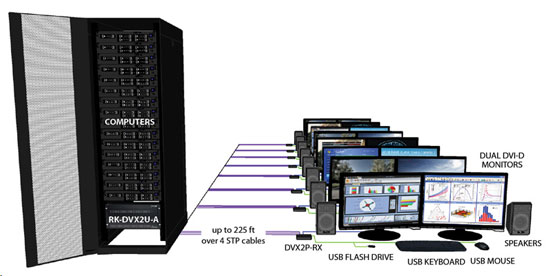

diagram

SmartAVI RK-DVX2U Transmitter Specifications

Mechanical
Height 8.5 in. (21.59 cm)
Width 17 in. (43.18 cm.)
Depth3.25 in. (8.25 cm.)
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)8x (2) DVI-D 29 pin female
Output Interface (RX)(2) DVI-D 29-pin female
ResolutionUp to 1920x1200 @ 60Hz
DDC5 volts p-p (TTL)
Audio Frequency20Hz to 20KHz
Impedance600 ohm
PowerInternal 110-240 VAC
UPC / EAN Barcode icon
UPC 813280022897
EAN 0813280022897
