Cutting-Edge 1U 4K UHD LCD Rack Console Drawer

See more. Manage more. Do more. Without leaving the rack.

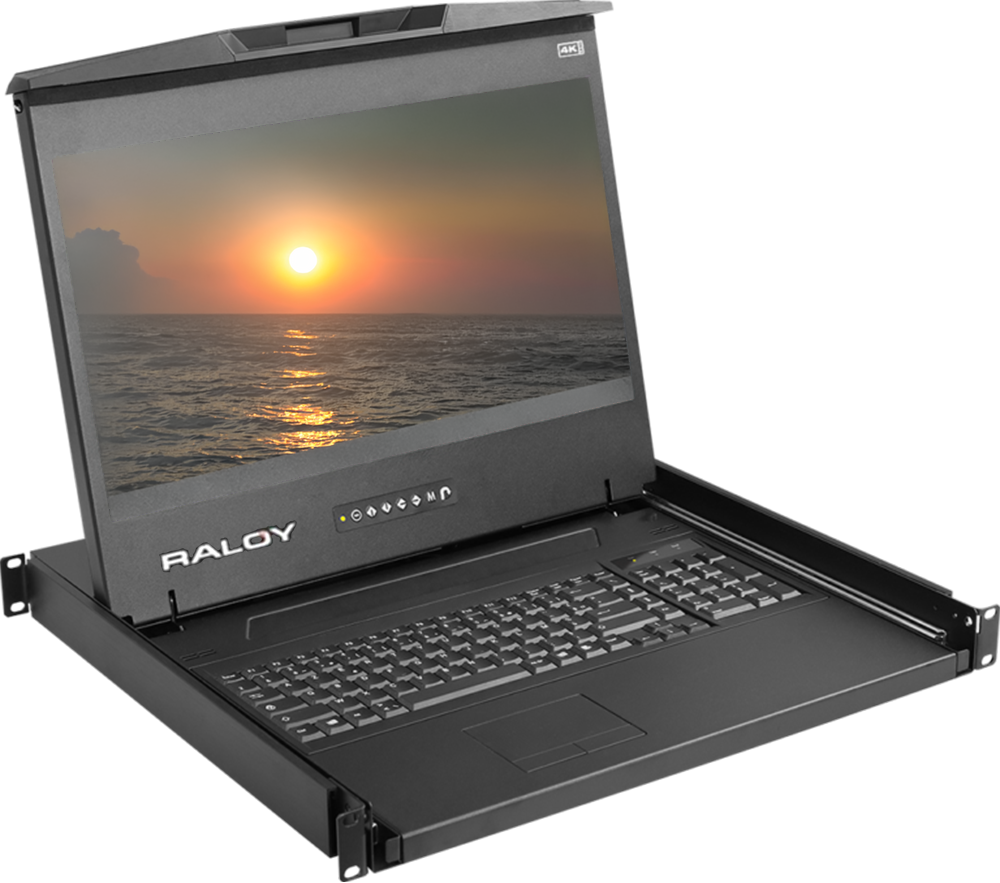

When you need direct, dependable access to servers and IT equipment, the Raloy RK119UHD 1U 18.4" 4K UHD LCD Console Drawer puts everything you need right where the work happens - inside the rack.

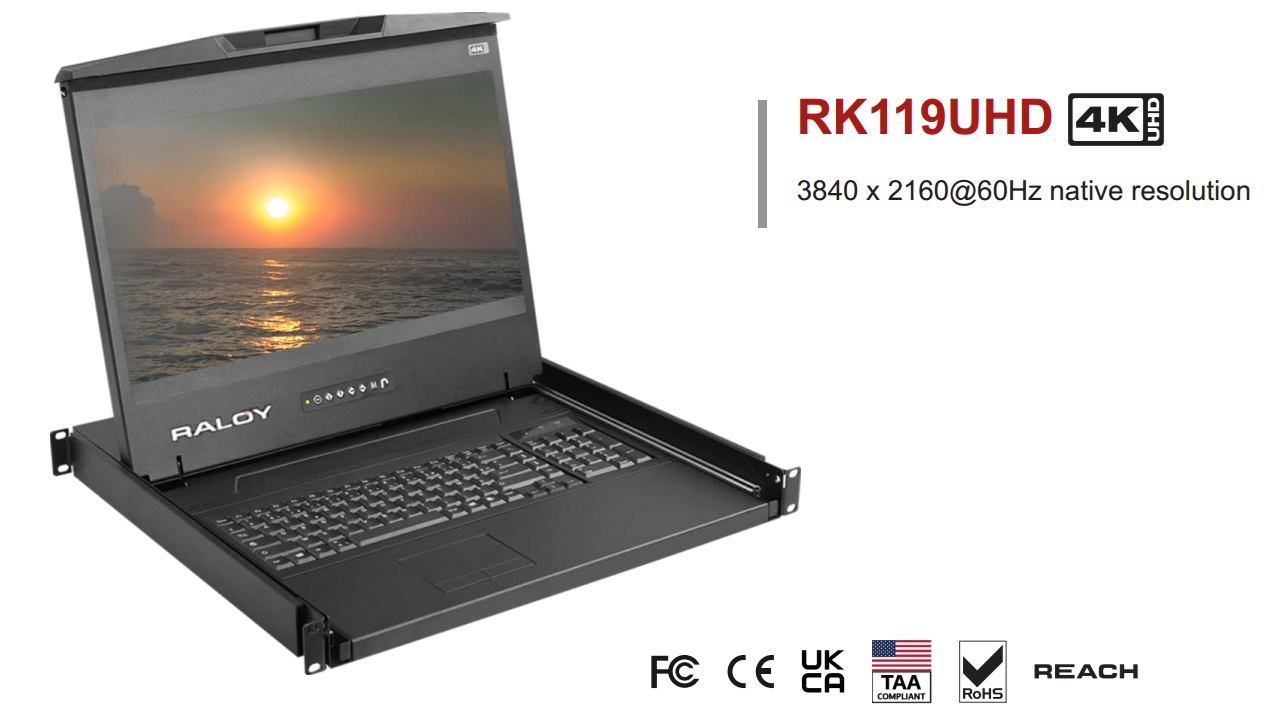

With a stunning 3840 × 2160 4K UHD resolution at 60Hz, the RK119UHD delivers detailed, high-quality visuals for server management, diagnostics, configuration and monitoring. Its integrated 104-key USB keyboard and touchpad provide a familiar, practical control interface without requiring a separate monitor, keyboard and mouse. For those who prefer, a trackball upgrade is available. Contact your KVM Switches Online sales representative for additional keyboard languages and trackball upgrades.

The 4K LCD Rack Console Drawer Designed for Modern Data Centers

Because it occupies just 1U of standard 19" rack space, the RK119UHD delivers full-featured local console access while preserving valuable rack capacity.

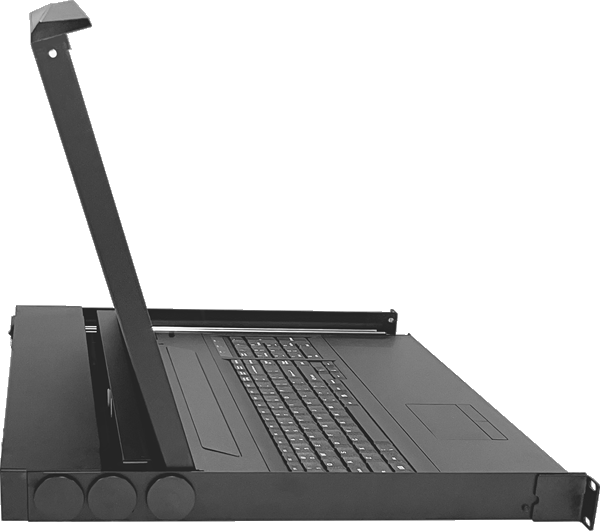

The RK119UHD combines high-resolution performance with a compact 460mm short-depth chassis, making it particularly well suited to modern racks where space is at a premium. Its one-person installation design helps simplify deployment, while the molded front handle and 2-point lock create a clean, professional installation and convenient access when needed.

For environments requiring centralized server management, the RK119UHD can also be configured with an optional integrated 4K 60Hz KVM switch, allowing administrators to control up to eight servers from a single keyboard, mouse and display setup.

RK119UHD 4K Rack Console Features

• 4K UHD at 60Hz - Native resolution of 3840 × 2160 and 1.07 billion colors, the RF119UHD delivers sharp, detailed images for easier server administration and troubleshooting.
• 18.4" LED-backlit LCD - Large enough for comfortable viewing while remaining compact enough for rack deployment and a brightness of 300 nits for clear at-the-rack viewing.
• Compact 1U rack-mount design - Installs in just one unit of standard 19" rack space to maximizes valuable rack real estate while the 460mm short-depth chassis accommodates racks with limited rear clearance and provides greater flexibility when deploying equipment in space-constrained environment.

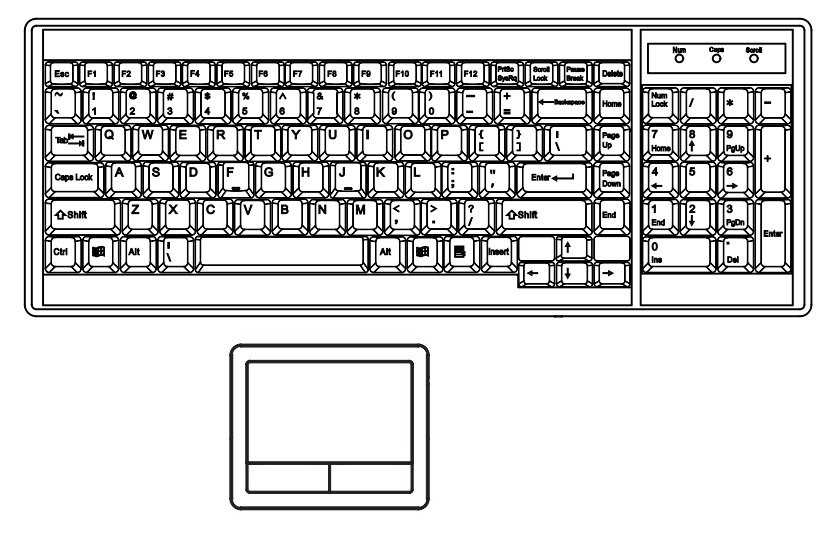

• Integrated keyboard and pointing device - The 104-key USB keyboard and integrated touchpad provide immediate local access without requiring separate input devices.

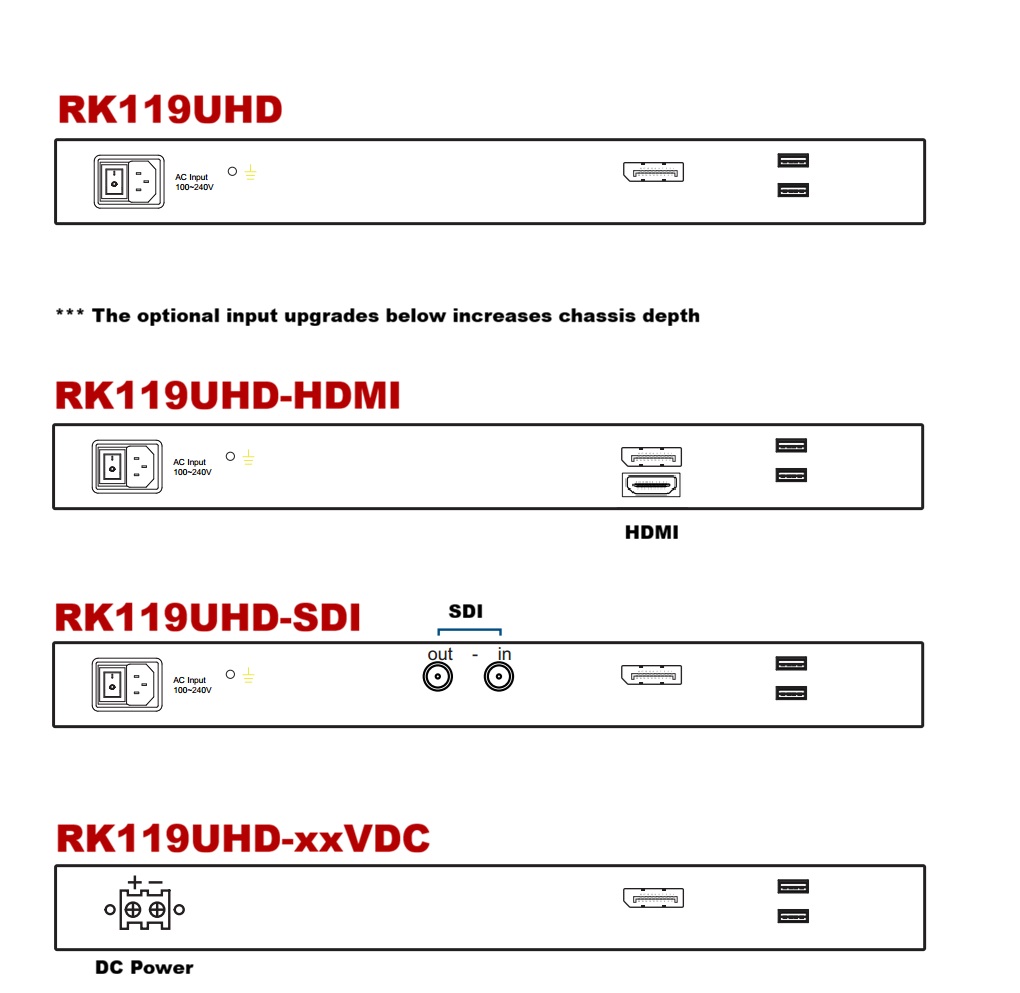

• DisplayPort 1.2 + USB + Speakers - Provides modern connectivity for compatible servers and peripherals with convenient audio capability directly from the rack console.
• Optional integrated 4K KVM - Control up to eight connected servers from one integrated console, reducing equipment clutter and simplifying server access.
• Designed for dependable operation - 30,000-hour MTBF; CE, UKCA, FCC, REACH, RoHS3 and WEEE certifications; TAA compliant; 2-year standard warranty, upgradeable to 5 years.

The Raloy RK119UHD is purpose built for IT professionals who need reliable, high-resolution access to servers without giving up valuable rack space. By combining a 4K display, keyboard, pointing device and optional KVM functionality into a single 1U solution, the RK119UHD helps simplify rack management and puts critical system control directly at your fingertips.

RK119UHD Specifications

UPC 00859058002500
EAN 000859058002500
