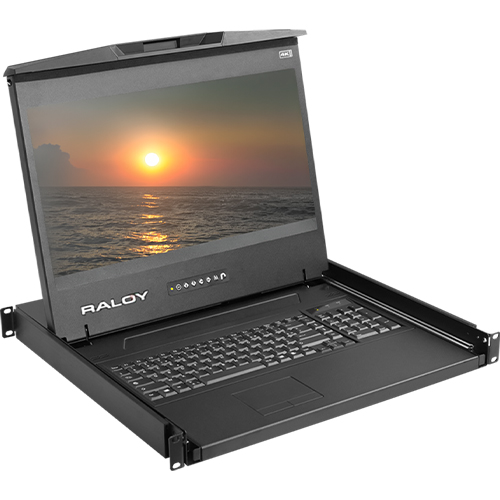

Cutting-Edge 1U 4K UHD LCD Rack Console Drawer with Integrated 8-port 4K KVM

The Raloy RK119UHD-4K-KVM Rack Console pairs the cutting-edge Raloy 4K UHD rackmount LCD console drawer with the premium 8-port 4K @ 60Hz KVM switch, bundled all within 1U of standard 19" rack space for full-featured local console access of up to eight 4K HDMI or DisplayPort servers while preserving valuable rack capacity.

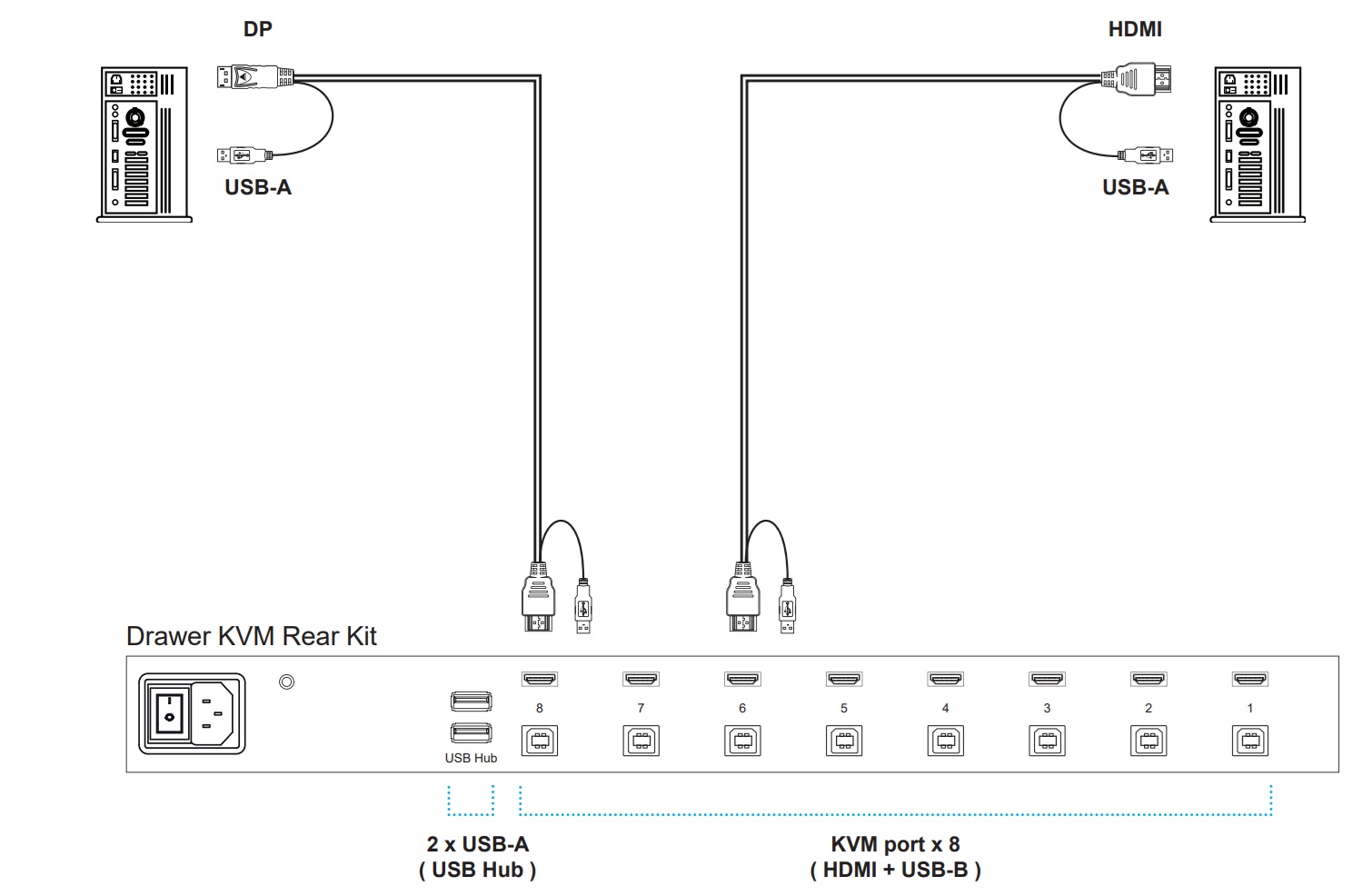

With support for HDMI and/or DisaplyPort server side video inputs, this highly reliable console drawer with integrated 4K KVM switch is engineered for crystal-clear video and high performance switching with video resolutions up to 4K UHD (3840 x 2160) @ 60Hz.  The RK119UHD-4K-KVM includes two additional USB ports to share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and other USB 2.0 devices with any attached servers.  KVM cables are sold separately to accommodate any combination of HDMI/DP servers.

RK119UHD 4K Rack Console Drawer with Integrated 8-Port 4K KVM Switch Features

• Integrated 4K KVM - Control up to eight connected servers from one integrated console, reducing equipment clutter and simplifying server access.
  • KVM ports support resolutions of 4K, 2K, 1080p, and more
  • Two USB hub ports share peripheral devices among computers
  • Multi-platform for PC, server, Blade Server & SUN / MAC

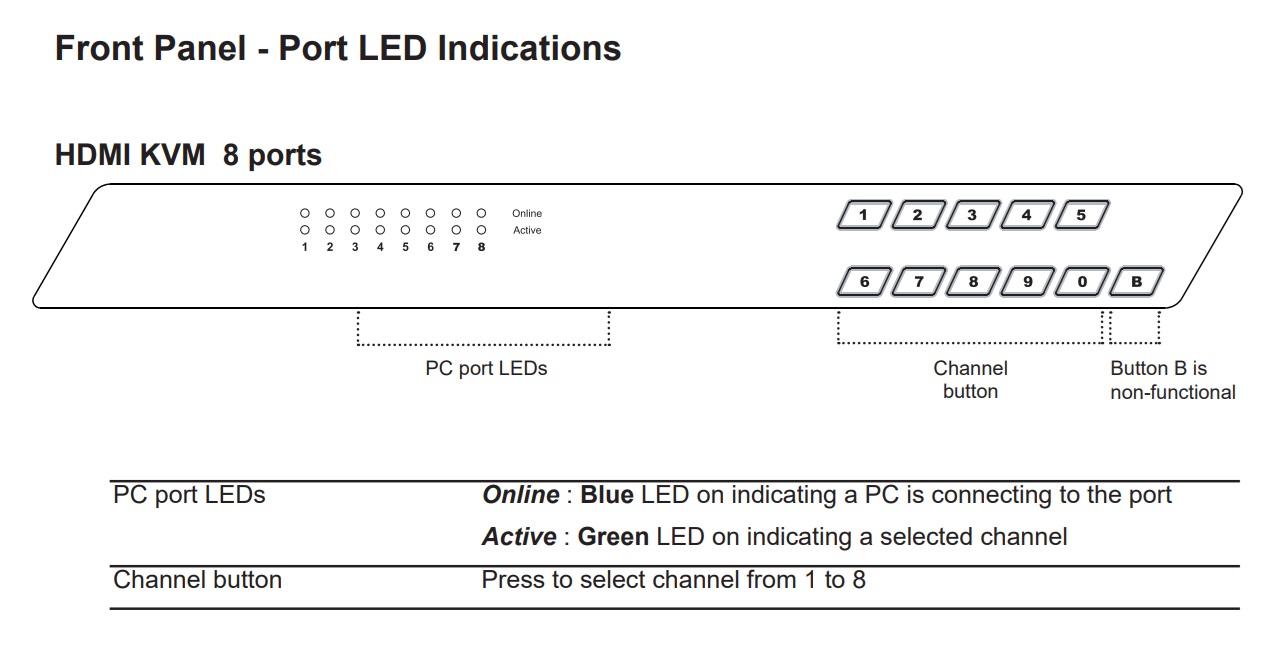

  • Port switching via front buttons & keyboard hotkeys
  • No software or drivers required
• 4K UHD at 60Hz - Native resolution of 3840 × 2160 and 1.07 billion colors, the RF119UHD-4K-KVM delivers sharp, detailed images for easier server administration and troubleshooting.
• 18.4" LED-backlit LCD - Large enough for comfortable viewing while remaining compact enough for rack deployment and a brightness of 300 nits for clear at-the-rack viewing.
• Compact 1U rack-mount design - Installs in just one unit of standard 19" rack space to maximizes valuable rack real estate. With an overall depth of 580mm containing both the console drawer and KVM switch and a mounting distance of 470mm to 800mm, the RK119UHD-4K-KVM provides great flexibility when deploying equipment in space-constrained environments.

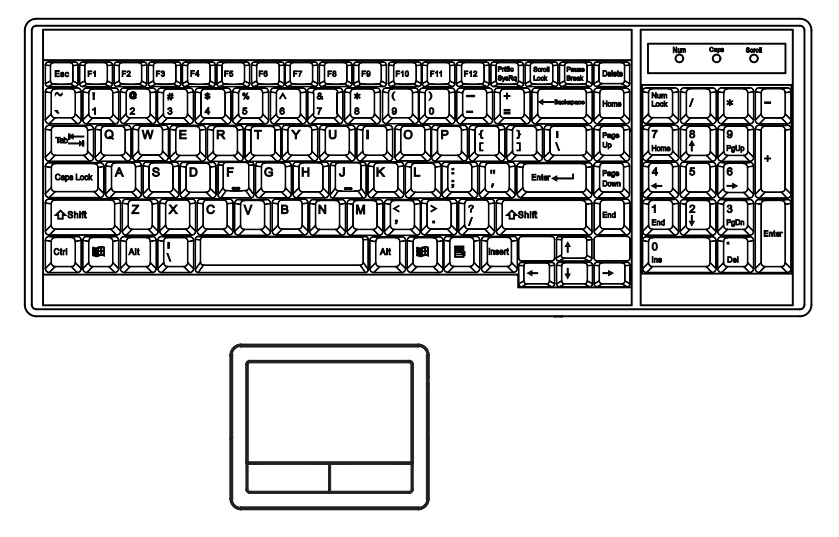

• Integrated keyboard and pointing device - The 104-key USB keyboard and integrated touchpad provide immediate local access without requiring separate input devices.

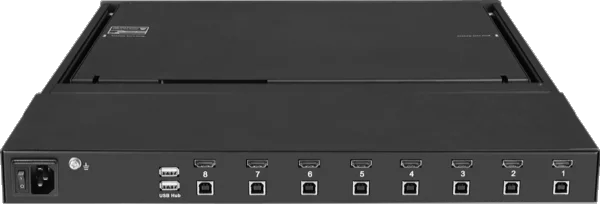

• DisplayPort/HDMI + USB + Speakers - Provides modern connectivity for compatible servers and peripherals with convenient audio capability directly from the rack console.
• Designed for dependable operation - 30,000-hour MTBF; CE, UKCA, FCC, REACH, RoHS3 and WEEE certifications; TAA compliant; 2-year standard warranty, upgradeable to 5 years.

The Raloy RK119UHD-4K-KVM is purpose built for IT professionals who need reliable, high-resolution access for you to eight servers without giving up valuable rack space. By combining a 4K display, keyboard, pointing device and KVM switch into a single 1U solution, the RK119UHD-4K-KVM helps simplify rack management and puts critical system control directly at your fingertips.

RK119UHD-4K-KVM Specifications
