1U 15" Rack Mount Monitor Keyboard Drawer w/ 16-Port PS/2 KVM Switch
RKP115-1601
15" 1U Rackmount TFT Samsung LCD Monitor Keyboard Drawer with Touchpad & 16-Port KVM Switch (comes with 16 6' cables).

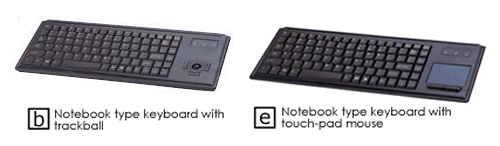

RKP Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.The following keyboard options are available for the RKP115-1601:
AH RKP115-1601 Features
- Unique mechanical design to maximize rack mountable space.
- Adjustable mounting brackets from 390mm to 845mm (15.3in to 33.2in) . (front to rear 19" mounts)
- Black anodized aluminium front panel
- Notebook keyboard with touchpad or trackball supporting multiple languages.
- Built-in on screen display controlled by integral membrane switches
- Standard D-sub 15-pin VGA input connector
- Lock out rails to prevent movement of the keyboard
- Supplied with 12V 5A remote power adapter (single power source)
- Rear rackmount bracket included.
With KVM Switch Only
- Cascade for use up to 128 servers.
- Name servers up to 16 characters long.
- Scan mode - Monitor servers at intervals 5 to 99 seconds.
- High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
- Built-in microprocessor emulation for each port boots up process.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
- Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
- Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
- No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
AH RKP115-1601 Specifications
| LCD | ||
| Panel | Samsung 15" LCD Panel | |
| Screen Type | TFT | |
| Display Area | 304.1(H) x 228.1(V) mm | |
| Contrast Ratio | 300 : 1 | |
| Viewing Angle | 140 ° (H) x 120 ° (V) (Typ.) | |
| Resolution | 1024 x 768 | |
| Pixel pitch | 0.297(H) x 0.297(W) mm | |
| Response Time | Tr=5ms, Tf=20ms (Typ.) | |
| Brightness | 450 cd/m2 | |
| Panel Color | 16.2M | |
| Back Light | 4 CCFTs (Cold Cathode Fluorescent tube) | |
| Video | ||
| Horizontal Synchronization | 48 - 60 KHz (Typ.) | |
| Vertical Synchronization | 60-75 Hz (Typ.) | |
| Input Signal | Analog RGB 0.7Vp-p | |
| Power Management | VESA DPMS | |
| Control | ||
| OSD Control | Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save | |
| External Connection | ||
| Power Input | 12V/5A DC adapter | |
| Video Input | 15-pin D-Sub connector | |
| Product dimension | 43.9(W) x 4.45(H) x 60(D)cm | |
| Packing dimension | 73.5(L) x 57.5(W) x 18(H)cm | |
| Net / gross weight | 24/25 lb / 44.1 lb 11kg / 20kg |
