1U 15" Rack Mount Monitor Keyboard Drawer w/ 8-Port PS/2 KVM Switch

RKP115-801

$939.00

Discontinued
Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

NOTE: Option B is a notebook key with a mini-trackball and Option E is a notebook key with touchpad.

15" 1U Rackmount TFT Samsung LCD Monitor Keyboard Drawer with Touchpad & 8-Port KVM Switch (comes with 8 6' cables).

RKP Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

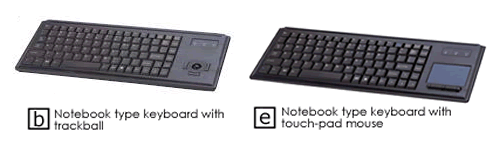

The following keyboard options are available for the RKP115-801:

Rackmount Keyboard Options

RKP115-801 Features

  • Unique mechanical design to maximize rack mountable space.
  • Adjustable mounting brackets from 390mm to 845mm (15.3in to 33.2in) . (front to rear 19" mounts)
  • Black anodized aluminium front panel
  • Two keyboard selections supporting multiple languages.
  • Built-in on screen display controlled by integral membrane switches
  • Standard D-sub 15-pin VGA input connector
  • Lock out rails to prevent movement of the keyboard
  • Supplied with 12V 5A remote power adapter (single power source)
  • Rear rackmount bracket included.

With KVM Switch Only

  • Cascade for use up to 128 servers.
  • Name servers up to 16 characters long.
  • Scan mode - Monitor servers at intervals 5 to 99 seconds.
  • High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
  • Built-in microprocessor emulation for each port boots up process.
  • Support eight characters password protection and search PC server name.
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
  • Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.

RKP115-801 Specifications

  LCD
  Panel Samsung 15" LCD Panel
  Screen Type TFT
  Display Area 304.1(H) x 228.1(V) mm
  Contrast Ratio 300 : 1
  Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
  Resolution 1024 x 768
  Pixel pitch 0.297(H) x 0.297(W) mm
  Response Time Tr=5ms, Tf=20ms (Typ.)
  Brightness 450 cd/m2
  Panel Color 16.2M
  Back Light 4 CCFTs
(Cold Cathode Fluorescent tube)
  Video
  Horizontal Synchronization 48 - 60 KHz (Typ.)
  Vertical Synchronization 60-75 Hz (Typ.)
  Input Signal Analog RGB 0.7Vp-p
  Power Management VESA DPMS
  Control
  OSD Control



Brightness, Contrast, Colour, Clock,
H.Position, V.Position, Phase, Scaling,
Auto config, Input select, Multi window,
Clear EEPROM, OSD adjust, Save
  External Connection
  Power Input 12V/3.3A DC adapter
  Video Input 15-pin D-Sub connector
  Product dimension 43.9(W) x 4.45(H) x 60(D)cm
  Packing dimension 73.5(L) x 57.5(W) x 18(H)cm
  Net / gross weight

24.25 lb / 44.1 lb
11kg / 20kg
