1U 15" Rack Mount Monitor Keyboard Drawer w/ 8-Port USB KVM Switch

RKP115-S801

$1,053.00

Discontinued
Recommended replacement: Raloy RF117HD
Alternative options: Contact Us

The RKP115 is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

The following keyboard options are available for the RKP115-S801:

Rack Mount LCD Keyboard Options

RKP115-S801 Features:

  • 1U 15"  TFT LCD screen
  • 1,024 x 768 with 60 / 70 / 75Hz

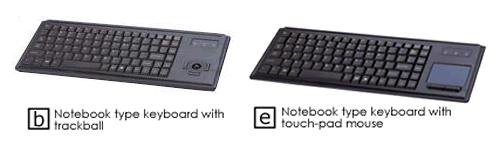

  • Two keyboard selections "e" and "b" support multiple languages
  • Adjustable mounting brackets from 390mm to 845mm (15.3in to 33.2in)
  • Slide rails have fixed position to prevent movement of th keyboard
  • All mounting hardware included
  • 12, 24, 48-volt DC power supply options

Advanced Features with KVM:

  • Cascade for use up to 128 servers.
  • Name servers up to 16 characters long.
  • Scan mode - Monitor servers at intervals 5 to 99 seconds.
  • High Video Quality - Up To 1920x1440, Bandwidth: 200MHz
  • Built-in microprocessor emulation for each port boots up process.
  • Support eight characters password protection and search PC server name.
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
  • Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.

RKP115-S801 Specifications:

Mechanical
Height 1.75 in. (4.44 cm.)
Width 17.4 in. (44.2 cm.)
Depth 23.6 in. (60 cm.)
Weight 33 lbs. (15 kg.)
Package Dimensions
(H x W x D)
7.1 x 23.6 x 30.3 in.
(18 x 60 x 77 cm.)
Package Weight 46 lbs. (21 kg.)
General
Form factor 1U rack mounting on slide-out rails
Color Black
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server-side Interface
HD15 VGA, USB Type A for KB/MS
Rack Mounting Adjustable ranges from 15.3" to 33.2" (390 to 845mm)
Environmental
Operating temperature 0 to 50 Degree Celsius
Storage temperature -25 to 65 Degree Celsius
Relative Humidity 90%, non condensing
Shock 50G peak acceleration
(11ms, half since wave)
Vibration 58~500Hz/ 0.98G
(11min/ cycle)
Power 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
LCD Screen
LCD Manufacturer Samsung
LCD Origin South Korea
Display Size 15 inch diagonal
LCD Type Samsung grade A industrial TFT LCD Panel
Resolution 1,024 x 768 with 60 / 70 / 75Hz
Display color 16.2 M
Brightness 450 cd/m2
Contrast Ratio 400:1
Response Time TR=5/ Tf=20 ms
Pixel Pitch 0.297 (H) x 0.297 (V) mm
Viewing Angle 70/ 70/ 60/ 65 (L/R/U/D)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V Position,
Auto-tune, Recall & Language
Signal Input VGA, Analog RGB
Option Video Input S-video & Composite
LCD MTBF 50,000 hrs
Integrated KVM Switch
KVM port 8 port HD15 female
Port access Channel button or hot keys selectable
Indicators Online (green) and selected (red) status LED
Cascade expansion Up to 128 ports/servers
KB/MS emulation USB 1.1 Compliant, support hot-plugging
Server-side interface VGA HD15, analog RGB, USB type A, support hot-plugging
Support platform MS Windows 2000/XP, Solaris and SCO Unix
KVM Cable "CB" series USB KVM cable with 6, 10, 15 feet option (8- 6ft cables included)
Cascade Cable "CBC" series cascade cable to USB KVM switch (sold separately)
