1U 15" Rack Mount Monitor Keyboard Drawer Short Depth Model with Samsung TFT LCD

RKP1415

$674.00

Discontinued
Recommended replacement: Raloy RNX119
Alternative options: Contact Us

RKP1415 is a combination of keyboard, mouse and monitor into a drawer with features such as short depth design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.
RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems.

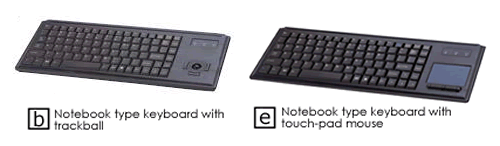

The following keyboard options are available for the RKP1415:

Rackmount LCD Keyboard Options

RKP1415 Features:

  • 1U 15", 17" or 19" TFT LCD screen
  • 440mm deep for 15", 17" or 19" TFT LCD display
  • 480mm deep for 19" LCD display
  • Two keyboard selections, "e" and "b" support multiple languages
  • Adjustable mounting brackets from 390 to 900 mm
  • Slide rails have fixed position to prevent movement of the keyboard
  • All mounting hardware included
  • 12V, 24V, 48V DC power supply option
  • Extra Video (S-Video, Composite) Input option

RKP1415 Specifications:

Mechanical
Height 1.75 in. (4.44 cm.)
Width 17.4 in. (44.2 cm.)
Depth 17.3 in. (44 cm.)
Weight 30 lbs. (14 kg.)
Package Dimension
(H x W x D)
7.1 x 23.6 x 24 in.
(18 x 60 x 61 cm.)
Package Weight 40 lbs. (18 kg.)
General
Form factor 1U rack mounting on slide-out rails, short depth
Color Black
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Support Platform MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel,
SCO Unix and MS DOS
Server-side Interface
HD15 VGA, PS/2 Mini DIN or USB Type A for KB/MS
Rack Mounting Adjustable ranges from 15.3" to 27.5" (390 to 700mm)
Environmental
Operating temperature 0 to 50 Degree Celsius
Storage temperature -25 to 65 Degree Celsius
Relative Humidity 90%, non condensing
Shock 50G peak acceleration
(11ms, half since wave)
Vibration 58~500Hz/ 0.98G
(11min/ cycle)
Power 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
LCD Screen
LCD Manufacturer Samsung
LCD Origin South Korea
Display Size 15 inch diagonal
LCD Type Samsung grade A industrial TFT LCD Panel
Resolution 1,024 x 768 with 60 / 70 / 75Hz
Display color 16.2 M
Brightness 450 cd/m2
Contrast Ratio 400:1
Response Time TR=5/ Tf=20 ms
Pixel Pitch 0.297 (H) x 0.297 (V) mm
Viewing Angle 70/ 70/ 60/ 65 (L/R/U/D)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V Position,
Auto-tune, Recall & Language
Signal Input VGA, Analog RGB
Option Video Input S-video & Composite
LCD MTBF 50,000 hrs
