1U 15" Rack Mount Monitor Keyboard Drawer Compact Keyboard Model
RKP1615
The RKP1615 Series is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.

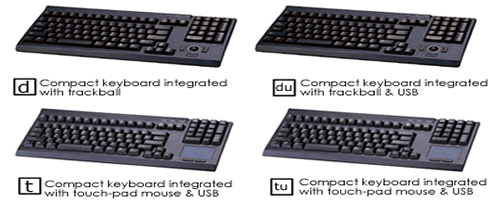

The keyboard options for the RKP1615 are:
RKP1615 Features:
- 1U 15" TFT LCD screen
- Two keyboard selections "d" and "t" support multiple languages
- Lock out rail to prevent movement of the keyboard
- Adjustable mounting brackets from 390 to 900 mm
- All mounting hardware included
- 12, 24, 48-Volt DC power supply options
RKP1615 Specifications:
| Mechanical | |
| Height | 1.75 in. (4.44 cm.) |
| Width | 17.4 in. (44.2 cm.) |
| Depth | 25.6 in. (65 cm.) |
| Weight | 37 lbs. (17 kg.) |
| Package Dimensions (H x W x D) | 7.1 x 23.6 x 33 in. (18 x 60 x 84 cm.) |
| Package Weight | 51 lbs. (23 kg.) |
| General | |
| Form factor | 1U rack mounting on slide-out rails, short depth |
| Color | Black |
| Compatibility | Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs |
| Server-side Interface | HD15 VGA, 6-pin Mini DIN for PS/2 KB/MS |
| Rack Mounting | Adjustable ranges from 15.3" to 35" (390 to 890mm) |
| Environmental | |
| Operating temperature | 0 to 50 Degree Celsius |
| Storage temperature | -25 to 65 Degree Celsius |
| Relative Humidity | 90%, non condensing |
| Shock | 50G peak acceleration (11ms, half since wave) |
| Vibration | 58~500Hz/ 0.98G (11min/ cycle) |
| Power | 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A) |
| LCD Screen | |
| LCD Manufacturer | Samsung |
| LCD Origin | South Korea |
| Display Size | 15 inch diagonal |
| LCD Type | Samsung grade A industrial TFT LCD Panel |
| Resolution | 1,024 x 768 with 60 / 70 / 75Hz |
| Display color | 16.2 M |
| Brightness | 450 cd/m2 |
| Contrast Ratio | 400:1 |
| Response Time | TR=5/ Tf=20 ms |
| Pixel Pitch | 0.297 (H) x 0.297 (V) mm |
| Viewing Angle | 70/ 70/ 60/ 65 (L/R/U/D) |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| Signal Input | VGA, Analog RGB |
| Option Video Input | S-video & Composite |
| LCD MTBF | 50,000 hrs |
