2U 15" Rack Mount LCD Keyboard Drawer, Short-depth, w/ 16-Port USB KVM Switch



Recommended replacement: Raloy RNX119
Alternative options: Contact Us

The AH RKP2415-S1601 is a combination of keyboard, mouse and monitor into a drawer with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control PC system.  The following keyboard options are available for the RKP2415-S1601:

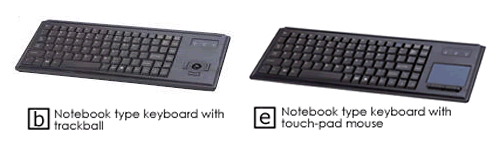

Rackmount LCD Keyboard Options

RKP series provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control connected systems

RKP2415-S1601 Features:

  • 2U 15" TFT LCD screen
  • 1,024 x 768 with 60 / 70 / 75Hz
  • 440mm deep for 15"/ 17" TFT LCD display
  • 480mm deep for 19" LCD display
  • Two keyboard selections, "e" and "b" support multiple languages
  • Adjustable mounting brackets from 390 to 700 mm
  • Slide rails have fixed position to prevent movement of the keyboard & screen
  • All mounting hardware included
  • 12, 24, 48-Volt DC power supply options

RKP2415-S1601 Specifications:

Height 3.5 in. (8.8 cm.)
Width 17.4 in. (44.2 cm.)
Depth 17.3 in. (44 cm.)
Weight 37 lbs. (17 kg.)
Package Dimensions
(H x W x D)
8.7 x 23.6 x 24.4 in.
(22 x 60 x 62 cm.)
Package Weight 51 lbs. (23 kg.)
Form factor 2U short depth, separate slide-out screen & keyboard
Color Black
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Server-side Interface HD15 VGA, USB Type A for KB/MS
Rack Mounting Adjustable ranges from 15.3" to 27.5" (390 to 700mm)
Operating temperature 0 to 50 Degree Celsius
Storage temperature -5 to 65 Degree Celsius
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration
(11ms duration)
Vibration 5~500Hz 1G RMS random vibration
Power 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A)
LCD Screen
LCD Manufacturer Samsung
LCD Origin South Korea
Display Size 15 inch diagonal
LCD Type Samsung grade A industrial TFT LCD Panel
Resolution 1,024 x 768 with 60 / 70 / 75Hz
Display color 16.2 M
Brightness 450 cd/m2
Contrast Ratio 400:1
Response Time TR=5/ Tf=20 ms
Pixel Pitch 0.297 (H) x 0.297 (V) mm
Viewing Angle 70/ 70/ 60/ 65 (L/R/U/D)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V Position,
Auto-tune, Recall & Language
Signal Input VGA, Analog RGB
Option Video Input S-video & Composite
LCD MTBF 50,000 hrs
Integrated KVM Switch
KVM port 16 port HD15 female
Port access Channel button or hot keys selectable
Indicators Online (green) and selected (red) status LED
Cascade expansion Up to 128 ports/servers
KB/MS emulation PS/2, with microprocessor support hot-plugging
Server-side interface VGA HD15, analog RGB and 2 x 6-pin mini DIN
Support platform MS Windows 3.x/95/98/2000/XP/NT4.0, Solaris, Novel,
SCO Unix and MS DOS
KVM Cable "CD" series PS/2 cable with 6, 10, 15 & 33 feet option (16- 6ft. cables included)
Cascade Cable "CA" series cable to PS/2 KVM switch with 2, 6 feet option (sold separately)
