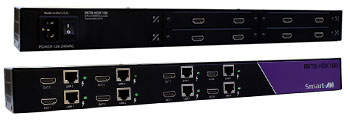

SmartAVI HDMI RACK 8 ports Transmitter over STP CAT5e/6



For upgrade or replacement options: Contact Us

The RKT8-HDX100 is the 8-port transmitter unit. The receiver unit is the HDX-RX100.

The SmartAVI RKT8-HDX100 is an excellent solution for extending HDMI signals to a remote location up to 150 feet away. Consolidate up to 8 workstation computers into one location, which means no more hassle and worrying about multiple devices. With the RKT8-HDX100, up to 8 displays can be extended easily from a rack without the mess or expense of other solutions. Rather than buying multiple extenders for your rack component and needing to find power sources for them all, the NTI HDMI extender is a simple yet powerful solution. It is fully compatible with MAC, PC and LINUX HDMI standards.

SmartAVI RKT8-HDX100 Applications:

  • Home Theater
  • Corporate/Educational Presentations
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic Control/Passenger Information)
  • Educational Environments with Remote Displays

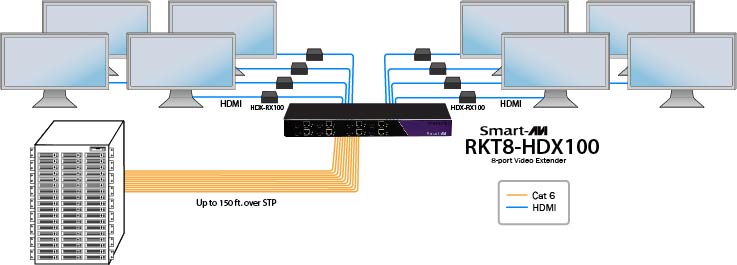

SmartAVI RKT8-HDX100 Application Diagram

SmartAVI RKT8-HDX100 Application Diagram

SmartAVI RKT8-HDX100 Features & Benefits:

  • Supports up to 8 HDMI sources
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Extends up to 150 feet with CAT5e/CAT6 STP cables
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table
  • Compatible with all operating systems
  • Local HDMI output for each port
  • HDMI 1.3 and HDCP compliance
  • Rack Mountable Solution
  • Data receovery for digital video
  • Plug-and-play ready
  • Uncompressed Video

 SmartAVI RKT8-HDX100 Specifications:

Width17 in. (43.18 cm.)
Height1.6 in. (4.1 cm.)
Depth3.25 in. (8.3 cm.)
Weight5 lb. (2.3 kg.)
Resolution1920x1200 @60Hz;
Output Interface (RX)8 x HDMI female
Input Interface (TX)8 x HDMI female
Video InterfaceHDMI
ConnectorHDMI Connector
Maximum Pixel Clock165MHz
Power110-240 VAC
Operating Temperature0-55 °C (32-131°F)
Storage Temperature-20-85 °C (-4-185 °F)
HumidityUp to 95%
