SmartAVI 8-Port HDMI Video Extender System up to 150 feet over CAT5e/6



For upgrade or replacement options: Contact Us

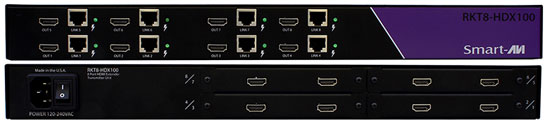

SmartAVI RKT8-HDX100-S Contents:

The SmartAVI RKT8-HDX100-S is an excellent solution for extending HDMI signals to a remote location up to 150 feet away. Consolidate up to 8 workstation computers into one location, which means no more hassle and worrying about multiple devices. With the RKT8-HDX100-S, up to 8 displays can be extended easily from a rack without the mess or expense of other solutions. Rather than buying multiple extenders for your rack component and needing to find power sources for them all, the NTI HDMI extender is a simple yet powerful solution. It is fully compatible with MAC, PC and LINUX HDMI standards.

SmartAVI RKT8-HDX100-S Applications:

  • Home Theater
  • Corporate/Educational Presentations
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic Control/Passenger Information)
  • Educational Environments with Remote Displays


SmartAVI RKT8-HDX100-S Features & Benefits:

  • Supports up to 8 HDMI sources
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Extends up to 150 feet with CAT5e/CAT6 STP cables
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table
  • Compatible with all operating systems
  • Local HDMI output for each port
  • HDMI 1.3 and HDCP compliance
  • Rack Mountable Solution
  • Data receovery for digital video
  • Plug-and-play ready
  • Uncompressed Video

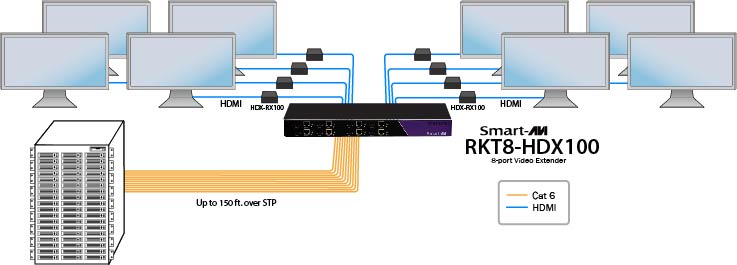

SmartAVI RKT8-HDX100-S Application Diagram

SmartAVI RKT8-HDX100-S Application Diagram

 SmartAVI RKT8-HDX100-S Specifications:

Width17 in. (43.18 cm.)
Height1.6 in. (4.1 cm.)
Depth3.25 in. (8.3 cm.)
Weight5 lb. (2.3 kg.)
Resolution1920x1200 @60Hz;
Output Interface (RX)8 x HDMI female
Input Interface (TX)8 x HDMI female
Video InterfaceHDMI
ConnectorHDMI Connector
Maximum Pixel Clock165MHz
Power110-240 VAC
Operating Temperature0-55 °C (32-131°F)
Storage Temperature-20-85 °C (-4-185 °F)
HumidityUp to 95%
UPC / EAN Barcode icon
UPC 813280019095
EAN 0813280019095
Question: Do you guys have any 8 port HDMI extender/repeater that will work up to 300ft ??
Answer: Thank you for your inquiry. We recently added the NTI VOPEX-C6HD-8HDBT-328, which is an 8-port HDMIextender/splitter with a range of up to 328 feet. You can view that product here:

Depending on your specific needs, there may be different options available. For additional recommendations, please contact your KVM Switches Online representative at 1-877-586-6654 or via our online chat feature to discuss your project in greater detail.
