Icron USB Rover 1650

00-00084G

Discontinued
Replaced by: Icron Rover 2850
Alternative options: Contact Us

The Icron USB Rover 1650 targets low-cost commercial end user applications. It provides all the flexibility of extended range USB in a ready-to-use package. The USB Rover 1650 provides support for a single remote device or hub.  Icron USB Rover 1650 products operate over standard Category 5 UTP cable (the same wiring used in Ethernet). The technology behind the product requires no additional software for either the computer or the target devices.

Icron USB Rover 1650 products are composed of two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer and to connect the remote USB device to the REX unit. Category 5 UTP cabling is used to connect the LEX and REX units over a distance of up to 50 m/164 ft. The Icron USB Rover 1650 is powered from USB and delivers enough power at the remote unit to drive most USB devices.

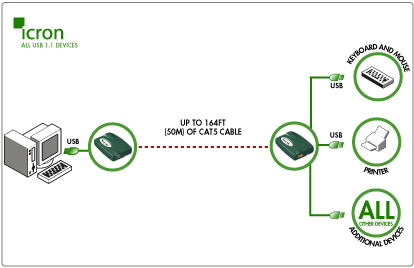

Icron USB Rover 1650 Function Diagram
Icron USB Rover 1650 Function Diagram

Icron USB Rover 1650 Features and Benefits:

  • Extends USB 1.1 connections up to 50m/164 ft
  • Supports standard Category 5 UTP cable interconnect
  • Single port (1650) or two port (2650), Class A device
  • Bus powered. No external power supply required

Icron USB Rover 1650 Specifications:

Mechanical LEX unit REX unit
Height 1.2 in. (3.05 cm.) 1.2 in. (3.05 cm.)
Width 2.8 in. (7.11cm.) 2.8 in. (7.11cm.)
Depth 4.0 in. (10.16 cm.) 4.0 in. (10.16 cm.)
Weight 0.2 Lbs. (0.1 kg.) 0.2 Lbs. (0.1 kg.)
Connectors
Upstream 1 x USB Type B 1 x RJ-45
Downstream 1 x RJ-45 2 x USB Type A
Temperature range 4 C to 40 C
Range (over CAT5 UTP Cable) 165 ft. (50 m.)
# USB ports (at REX) 2
USB device support (connected directly to REX) Any full-speed (12 Mb/s) or low-speed (1.5 Mb/s) device
USB hub support Up to 3 hubs can be connected in series.  Each hub reduces the maximum range by 10 meters.
Maximum power available to USB at REX 300 mA when LEX is supplied with 500 mA; 600 mA when LEX is supplied with 1000 mA
USB cable 6.6 ft. (2 m.)
Regulatory testing FCC, CE Class B
