17" Widescreen Full HD Rackmount Display Panel with Digital TV tuner and Remote
RP-F617TV
The RP-F617TV is a 6U 17.3" Widescreen rackmount LCD monitor with features such as Full HD and Digital TV tuner. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.
Display Features & Benefits
- 6U rackmount 17.3" widescreen LCD
- Full HD LCD display with 1080p resolution
- Digital TV tuner decodes ATSC signal
- HDMI, VGA, Composite ( RCA ) connection
- Green LED-backlit panel technology
- Modern touch controls

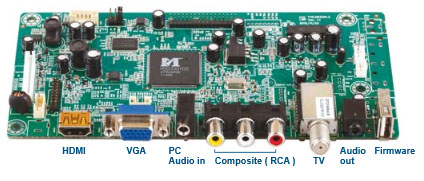

Basic I/O: HDMI, VGA, Composite, Audio and TV w/ Remote controller
| Mechanical | |
| Height | 10.5 in. (26.6 cm.) |
| Width | 18.9 in. (48 cm.) |
| Depth | 1.9 in. (4.8 cm.) |
| Weight | 9.9 lbs. (4.5 kg.) |
| Package Dimensions (HxWxD) | 20.8 x 4.9 x 17.8 inch(529 x 124 x 451 mm) |
| Package Weight | 13.2 lbs. (6 kg.) |
| Environmental | |
| Operating Temperature | 0 to 55°C Degree |
| Storage Temperature | -5 to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| LCD Screen | |
| Display Size | 17.3" Widescreen TFT |
| Resolution | 1920 x 1080 |
| Brightness (cd/m2) | 400 |
| Colors | 16.7 M, 8-bit |
| Contrast Ratio (typ) | 600:1 |
| Viewing angle (H/V) | 160° x 140° |
| Active area (mm) | 382 x 215 |
| Signal Input | ATSC DTV, HDMI, VGA, Composite |
