Rose UltraMatrix Remote Multi-User 8-Port IP KVM (1 Remote/2 Local)

RP2-1R2X8U/2

$2,149.00$1,880.38
Save $268.62
FREE Shipping on orders over $100

The Rose Electronics RP2-1R2X8U/2 is a 8 port multi-user KVM Switch which allows for 1 remote and 2 local users.  UltraMatrix Remote 2 represents the next generation in KVM switches. It not only provides a comprehensive solution for remote server console access, this access can be local or from any workstation on your network over IP.  The UltraMatrix Remote switch can easily be expanded to other KVM switches to make a seamless and truly scalable KVM matrix switch.

The powerful, advanced on-screen menu can be used to configure the unit, name the computers, and much more. When accessing a computer over your network, the Viewer application receives and displays the video and sends back keyboard and mouse data. This process allows you to access the remote computers from anywhere, locally, across your network, or around the world.

Rose UltraMatrix Remote KVM Switch Features:

  • Secure connection to remote computers locally or over IP using any supported web browser and RealVNC viewer
  • RealVNC viewer can be downloaded directly from the unit or RealVNC web site
  • Security system with login, computer access control and data encryption using AES 128 bit encryption
  • Video resolution up to 1600 x 1200
  • Powerful and expandable to 1,000 computers
  • BIOS-level access control, local or remote
  • Advanced on-screen menus make configuration and computer switching easy
  • Multi-lingual menu (English, French, German, Spanish, Italian, and Portuguese)
  • Status screen shows current connections, computer power, plus additional information
  • Supports PS/2, PS/2 wheel, USB, and Sun
  • Supports HV sync, composite sync, and sync-on-green video
  • Serial access for computer switching, unit configuration, flash memory upgrades and reset to factory defaults
  • Flash memory technology allows for fast and reliable upgrades.
  • Rack mountable chassis (1U or 2U)

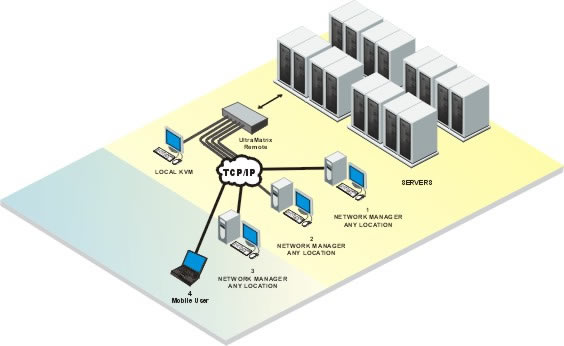

Rose UltraMatrix Remote KVM Switch Diagram
Rose UltraMatrix Remote KVM Switch Diagram

RP2-1R2X8U/2 Specifications:

Mechanical
Height 1.75 in. (4.5 cm.)
Width 16.7 in. (42.4 cm.)
Depth15.2 in. (38.6 cm.)
Weight9.3 lbs. (4.2 kg.)
Environmental0 - 45 °C, 5% - 80% non-condensing RH
Power90-240VAC - Auto switching, 130 Watts
ChassisElectro galvanized steel, black powder coated
Connections
PowerIEC320 standard receptacle
CPU/KVMDB25F
ExpansionDB15M/F
RS232RJ12 (6-pin)
NetworkRJ45
ControlsPower on/off switch
Video bandwidth 150MHz
Indicators
LEDsPower, Select, CPU power
ApprovalsFCC, CE
