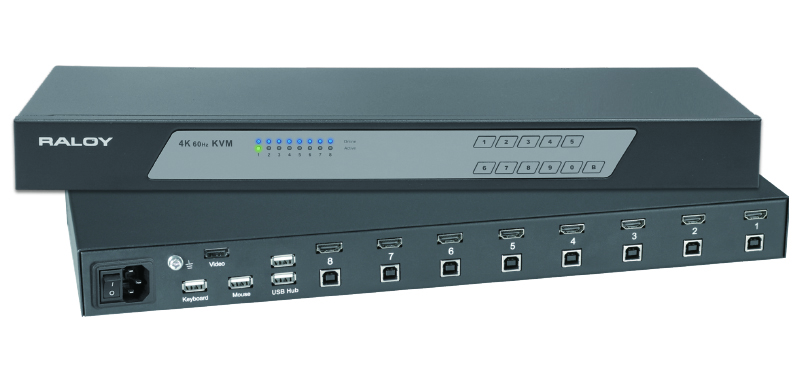

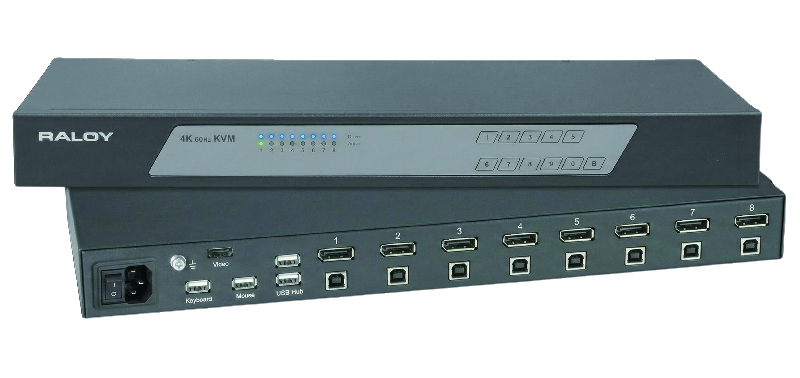

8-port 4K 60 Hz KVM Switch - HDMI or DisplayPort Video with 2 USB Hub Ports
RSA-4KHDMIKVM108
Save $127.00
The Raloy RSA-4K KVM series is a premium 8-port 4K @ 60Hz KVM switch with support for either HDMI or DisaplyPort video inputs. This highly reliable 4K KVM switch is engineered for crystal-clear video and high performance with video resolutions up to 4K UHD (3840 x 2160) @ 60Hz and includes two additional USB ports to share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and other USB 2.0 devices with any attached servers. With no software or additional drivers required, the hot-pluggable RSA-4K KVM series is a true multi-platform, high-performance KVM solution that supports port switching via the Front Panel Push Buttons and Hot Key Combos.
Raloy 4K and 2K KVM Cables (sold separately for the widest compatibility) come in either HDMI / USB or DispalyPort / USB configurations.
- Local console & KVM ports support resolutions of 4K, 2K, 1080p, and more
- Two USB hub ports share peripheral devices among computers
- Multi-platform for PC, server, Blade Server & SUN / MAC
- Port switching via front button & keyboard hotkeys
- Hot pluggable, no software or drivers required
- TAA Compliant
Raloy RSA-4K KVM Series Specifications
| Model | RSA-4KHDMIKVM108 | RSA-4KDPKVM108 |
| Mechanical | ||
| Height | 1.73 in. (44 mm.) | |
| Width | 17.4 in. (442 mm.) | |
| Depth | 6.7 in. (170 mm.) | |
| Package Dimensions (H x W x D) | 5.5 x 19.7 x 15.28 in. (140 x 500 x 400mm) | |
| Chassis | Color: Dark; Material: Steel | |
| Form Factor | 1U rack mounting | |
| Net Weight | 5.7 lbs. (2.6 kg.) | |
| Gross Weight | 9.2 lbs. (4.2 kg.) | |
| Connectivity | ||
| KVM Port | HDMI/USB-B | DisplayPort/USB-B |
| Number of KVM Ports | 8 | |
| Cable Compatibility | RCK-6H: HDMI-USB-B to HDMI-USB-A RCK-6P: HDMI-USB-B to DP-USB-A | RCK-6DP: 6-foot DP-USB-B to DP-USB KVM cable |
| Server-side Video | HDMI 2.0 or DisplayPort | DisplayPort |
| Server-side Resolution | 16 : 9 - max. 3840 x 2160@60Hz 16 : 10 - max. 1920 x 1200@60Hz 4 : 3 - max. 1600 x 1200@60Hz | |
| Server-side KB / MS | 1 x USB-A (for both keyboard & mouse) | |
| Local Console Video | HDMI 2.0 | DisplayPort |
| Local Console Resolution | 16 : 9 - max. 3840 x 2160@60Hz 16 : 10 - max. 1920 x 1200@60Hz 4 : 3 - max. 1600 x 1200@60Hz | |
| Local Console Input Device | 2 x USB type A for keyboard & mouse | |
| USB 2.0 Hub | 2 x USB type A for sharing peripheral devices among multiple computers | |
| Management | ||
| Port switching | Front button & keyboard hotkeys | |
| Expansion (Cascade/Daisy Chain) | N/A | |
| OS support | Windows / Linux / Unix / Mac OS | |
| Environmental | ||
| Operating Temperature | 32 to 131°F (0° to 55°C) | |
| Storage Temperature | -4 to 140°F (-20° to 60°C) | |
| Relative Humidity | 5~90%, non-condensing | |
| Shock | 10G acceleration (11ms duration) | |
| Vibration | 10~300Hz 0.5G RMS random vibration | |
| Power | ||
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Consumption | Max. 10 Watt | |
| Regulation Approval | ||
| EMC | FCC & CE | |
| Safety | CE / LVD & UKCA | |
| Environment | REACH & RoHS3 / WEEE | |
