8-Port USB Hub IP KVM Switch
RSA-HKVM10108
Save $244.00

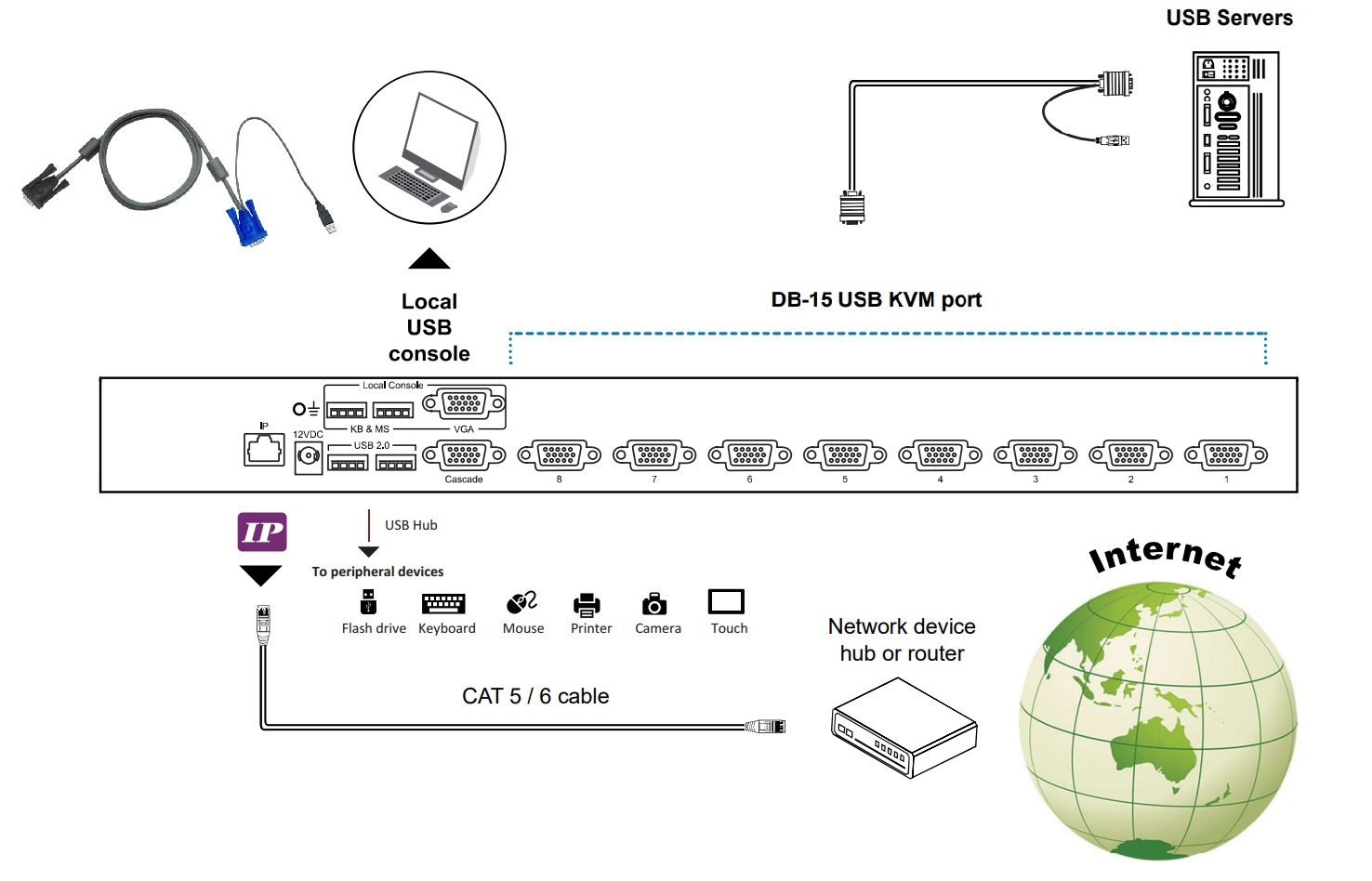

The Raloy RSA-HKVM10108 is a cost-effective 8-Port VGA USB Hub IP KVM switch supporting USB and VGA servers, providing BIOS-level access at the rack or via the internet with two additional USB ports to share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and other USB 2.0 devices with any attached servers. This highly reliable VGA KVM-Over-IP switch supports video resolutions up to 1920 x 1200 and can cascade up to 8 units to control up to 128 servers from a single (K)eyboard, (V)ideo, and (M)ouse user station0 located at the rack and/or over the internet via a Java-free HTML-based interface. With no software or additional drivers required, the hot-pluggable RSA-HKVM10108 is a multi-platform, no-frills IP KVM switch solution that supports port switching via the multilingual OSD, Front Panel Push Buttons, and Hot Key Combos.
The DB-15 KVM Cable (sold separately for the widest compatibility) comes in either the standard USB/VGA configuration or VGA + 2 x PS/2 with lengths of 6, 10, and 15 feet to support a variety of layouts, environments, and legacy equipment.
RSA-HKVM11008 USB Hub Features
- Two USB hub ports share peripheral devices among computers
- Built-in powerful graphic accelerator for high quality video and image via IP
- Enterprise Level IP Authentication
- Utilizes TLS 1.3, AES 128 / 256-bit encryption
- Integration with Active DirectoryŽ, LDAP or RADIUS.
- Strong passwords and granular user / user group permissions.
- Supports HTTPS, SNMP trap, SMTP, IPV6/ IPV4 management protocols.
- BIOS level access and full physical remote control over the connected servers' console (screen, keyboard, mouse).
- High definition video support with resolutions up to 1920 x 1200
- Multi-platform for PC, server, Blade Server & SUN / MAC
- Port switching via OSD, front button & keyboard hotkeys
- Multi lingual OSD men
- Hot pluggable, no software or drivers required
- Cascade up to 8 KVM switches
- TAA Compliant
Raloy RSA-HKVM10108 USB Hub IP KVM Switch Specifications
| Model | RSA-HKVM10108 |
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 6.7 in. (170 mm.) |
| Package Dimensions (H x W x D) | 5.5 x 19.7 x 15.28 in. (140 x 500 x 400mm) |
| Chassis | Color: Dark; Material: Steel |
| Form Factor | 1U rack mounting on dual slide-out rails |
| Net Weight | 5.7 lbs. (2.6 kg.) |
| Gross Weight | 9.2 lbs. (4.2 kg.) |
| Connectivity | |
| KVM Port | DB-15 |
| Number of KVM Ports | 8 |
| Cable Compatibility | RCB-x: VGA USB 2-in-1 KVM cable (6 / 10 / 15 feet) or RCE-x: VGA + PS/2 Combo KVM Cable (6 / 15 feet) |
| Server-side Video | DB-15 VGA |
| Server-side Resolution | 16:9 - max. 1920 x 1080 16:10 - max. 1920 x 1200 4:3 - max. 1600 x 1200 |
| Server-side KB / MS | 1 x USB-A (for both keyboard & mouse) or PS/2 + USB w/ PS/2 adapter |
| Local Console Video | VGA |
| Local Console Resolution | 16:9 - max. 1920 x 1080 16:10 - max. 1920 x 1200 4:3 - max. 1600 x 1200 |
| Local Console Input Device | 2 x USB type A for keyboard & mouse |

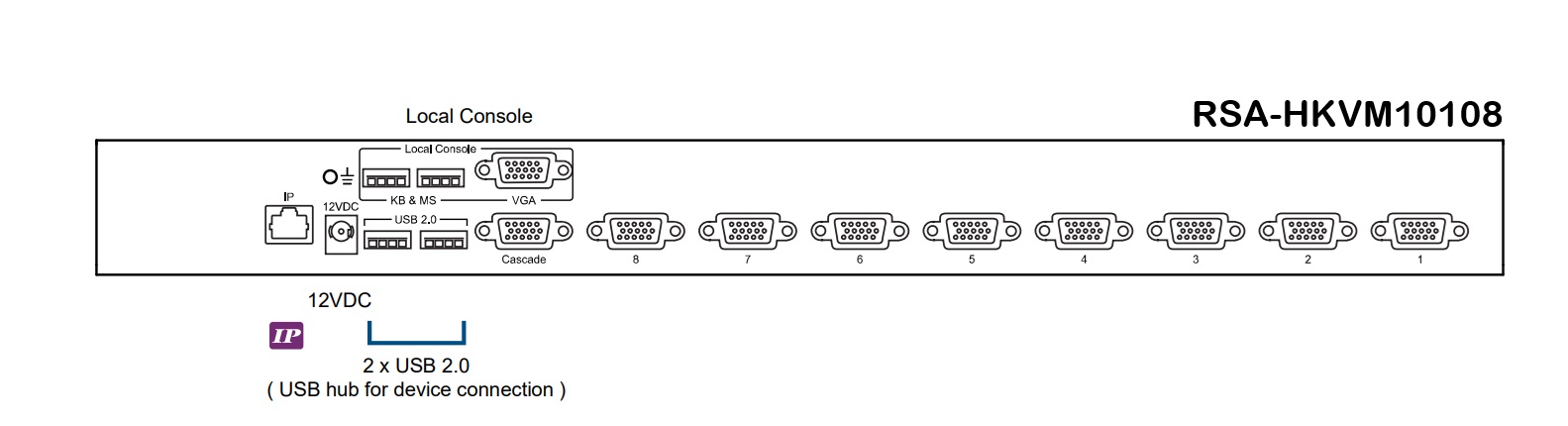

| USB 2.0 Hub | 2 x USB type A for sharing peripheral devices among multiple computers |
| IP Remote Console | |
| Connector | RJ45 Ethernet |
| User management | 15-user logins, 1 x active user |
| Network protocol | DHCP / BOOTP / DNS |
| Security | TLS 1.3, AES, LDAP, Active Directory (AD), HTTPS |
| Browser | Chrome, Firefox, Edge, etc |
| Resolution support | 16: 9 - max. 1920 x 1080 16:10 - max. 1920 x 1200 4: 3 - max. 1600 x 1200 |
| Management | |
| Port switching | OSD, front button & keyboard hotkeys |
| Expansion | 8-level cascade up to 128 servers |
| OS support | Windows / Linux / Unix / Mac OS |
| Environmental | |
| Operating Temperature | 32 to 131°F (0° to 55°C) |
| Storage Temperature | -4 to 140°F (-20° to 60°C) |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 10~300Hz 0.5G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 19 Watt |
| Regulation Approval | |
| EMC | FCC & CE |
| Safety | CE / LVD & UKCA |
| Environment | REACH & RoHS3 / WEEE |
