8-Port USB Hub KVM Switch and Extender - VGA
RSA-HKVM11008
Save $215.00

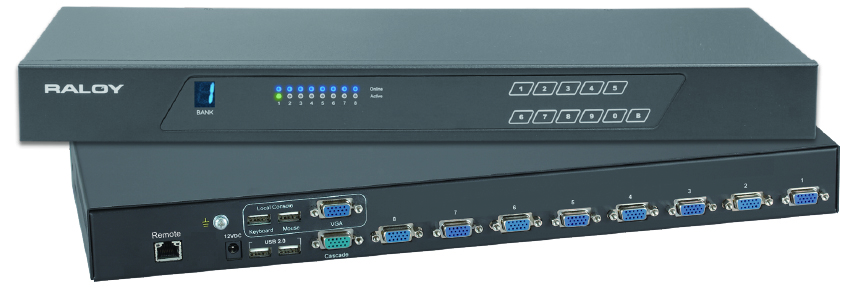

The Raloy RSA-HKVM11008 is a cost-effective 8-Port VGA USB Hub KVM with an integrated extended user station and two additional USB ports to share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and other USB 2.0 devices with any attached servers. This highly reliable USB Hub KVM and extender supports video resolutions up to 1920 x 1200 and can cascade up to 8 units to control up to 128 servers from a single (K)eyboard, (V)ideo, and (M)ouse user station located at the rack and/or extended via CATx up to 490 feet away. With no software or additional drivers required, the hot-pluggable RSA-HKVM11008 is a true multi-platform, no-frills USB Hub KVM extender solution that supports port switching via the multilingual OSD, Front Panel Push Buttons, and Hot Key Combos.
The DB-15 KVM Cable (sold separately for the widest compatibility) comes in either the standard USB/VGA configuration or VGA + 2 x PS/2 with lengths of 6, 10, and 15 feet to support a variety of layouts, environments, and legacy equipment.
RSA-HKVM11008 USB Hub Features
- Two USB hub ports share peripheral devices among computers
- Integrated CAT6 KVM Extender
- Remote user station receiver with (1) RCE-6 Combo KVM cable included
- High definition video support with resolutions up to 1920 x 1200
- Multi-platform for PC, server, Blade Server & SUN / MAC
- Port switching via OSD, front button & keyboard hotkeys
- Multi lingual OSD men
- Hot pluggable, no software or drivers required
- Cascade up to 8 KVM switches
- TAA Compliant
Raloy RSA-HKVM11008 USB Hub KVM Extender Specifications
| Model | RSA-HKVM11008 |
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 6.7 in. (170 mm.) |
| Package Dimensions (H x W x D) | 5.5 x 19.7 x 15.28 in. (140 x 500 x 400mm) |
| Chassis | Color: Dark; Material: Steel |
| Form Factor | 1U rack mounting on dual slide-out rails |
| Net Weight | 5.7 lbs. (2.6 kg.) |
| Gross Weight | 9.2 lbs. (4.2 kg.) |
| Connectivity | |
| KVM Port | DB-15 |
| Number of KVM Ports | 8 |
| Cable Compatibility | RCB-x: VGA USB 2-in-1 KVM cable (6 / 10 / 15 feet) or RCE-x: VGA + PS/2 Combo KVM Cable (6 / 15 feet) |
| Server-side Video | DB-15 VGA |
| Server-side Resolution | 16:9 - max. 1920 x 1080 16:10 - max. 1920 x 1200 4:3 - max. 1600 x 1200 |
| Server-side KB / MS | 1 x USB-A (for both keyboard & mouse) or PS/2 + USB w/ PS/2 adapter |
| Local Console Video | VGA |
| Local Console Resolution | 16:9 - max. 1920 x 1080 16:10 - max. 1920 x 1200 4:3 - max. 1600 x 1200 |
| Local Console Input Device | 2 x USB type A for keyboard & mouse |

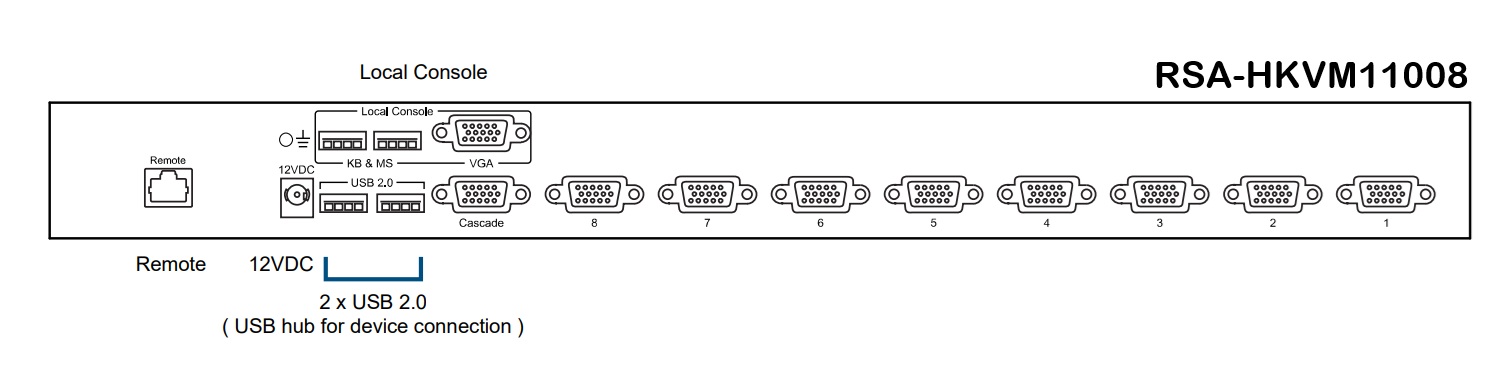

| USB 2.0 Hub | 2 x USB type A for sharing peripheral devices among multiple computers |
| Extended Console | |
| Graphic connector | 1 x DB-15 VGA |
| Resolution support | 16:9 - max. 1920 x 1080 16:10 - max. 1920 x 1200 4:3 - max. 1600 x 1200 |
| Input device | 2 x USB type A for keyboard & mouse |

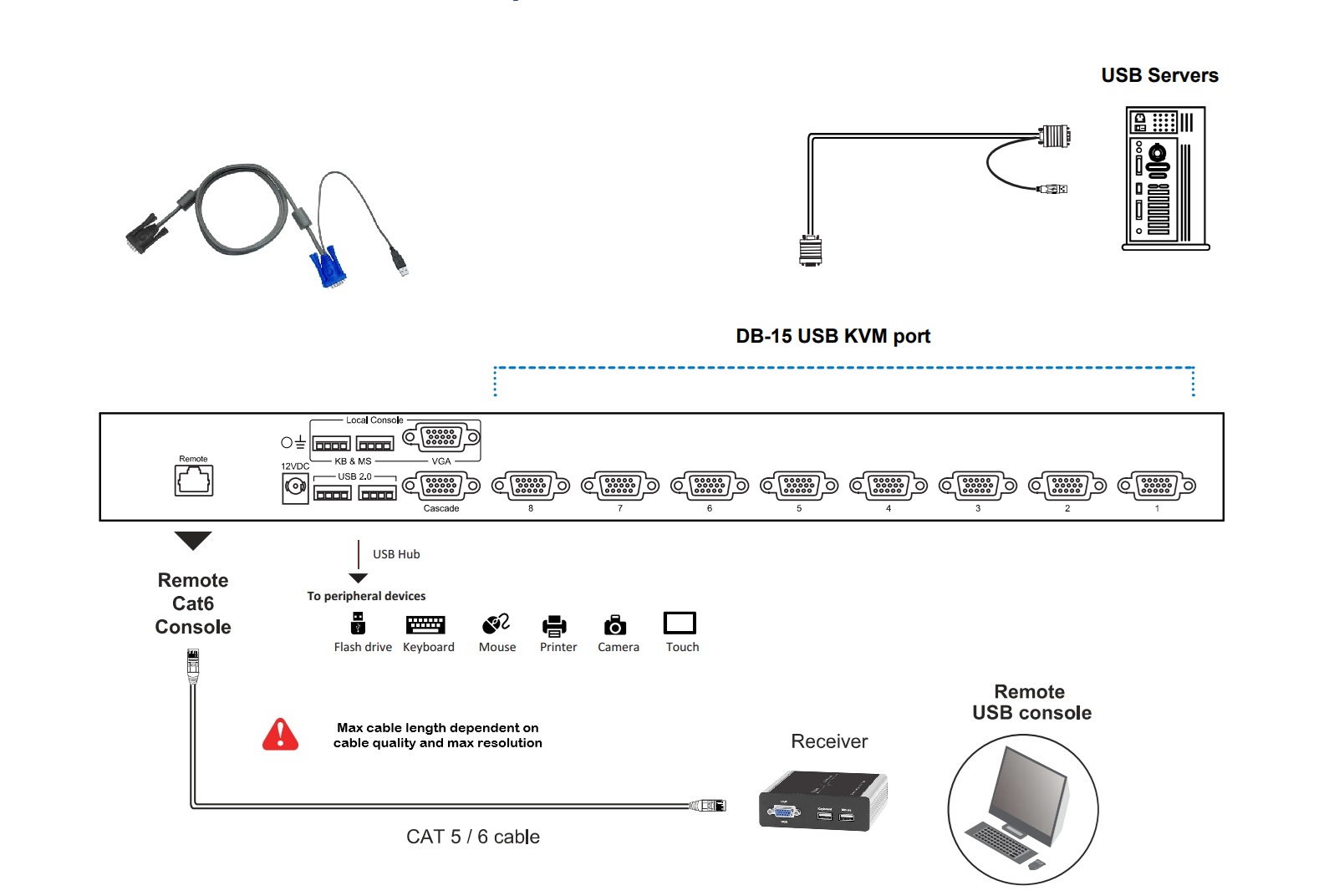

| Remote I/O | RJ45 via Cat5 / Cat5e / Cat6 cable up to 150m |
| Compensation | Auto adjust for cable length |
| Max Distance | Up to 150m dependent on cable quality and Resolution 16:9 - ( 1920 x 1080 ) Max. 50 meters 16:10 - ( 1920 x 1200 ) Max. 50 meters 16:10 - ( 1440 x 900 ) Max. 100 meters 4:3 - ( 1600 x 1200 ) Max. 100 meters 4:3 - ( 1280 x 1024 ) Max. 150 meters |
| Management | |
| Port switching | OSD, front button & keyboard hotkeys |
| Expansion | 8-level cascade up to 128 servers |
| OS support | Windows / Linux / Unix / Mac OS |
| Environmental | |
| Operating Temperature | 32 to 131°F (0° to 55°C) |
| Storage Temperature | -4 to 140°F (-20° to 60°C) |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 10~300Hz 0.5G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 19 Watt |
| Regulation Approval | |
| EMC | FCC & CE |
| Safety | CE / LVD & UKCA |
| Environment | REACH & RoHS3 / WEEE |
