Raritan 2-Port Secure KVM Switch with 4K dual-link DVI - NIAP PP3.0 certified
Raritan RSS-102 is a 2-port secure KVM switch with 4K dual-link DVI, USB, and audio. Raritan Secure Switches (RSS) offer a proven desktop access solution for guarding against cyber intrusion for government and military agencies. The RSS-102 is lab tested and certified to meet the requirements of the latest NIAP Protection Profile for Peripheral Sharing Devices version 3.0. There are four available models, two port and four port, with and without Common Access Card (CAC) authentication. The RSS-102 model supports a single DVI-I (analog or digital) & USB user console with optional audio from the connected computer. The Raritan RSS-102 Secure Switch works in either analog (VGA) or digital video (DVI, HDMI) modes, including 4K Ultra HD, high definition, and standard resolutions.
The NIAP Version 3.0 Protection Profile for Peripheral Sharing (KVM) Switches defines the latest requirements for use of Secure Desktop KVM Switches. These switches allow a user to safely switch between computer systems at different classifications. The new 3.0 Protection Profile (PP_PSS_V3.0) replaces the previous EAL2, EAL4 and Common Criteria regulations with stricter requirements.
- Safely switch between two computers at different security classifications
- High definition digital video up to 4K UHD @ 30Hz resolution
- USB keyboard & mouse - PS/2 with optional adapter
- Surround sound audio - Audio switching is supported via 3.5mm jacks.
- NIAP 3.0 Common Criteria Certified
Supports Digital (DVI/HDMI/DP) or Analog (VGA) video
Raritan RSS-102 Secure Switch supports severs with both analog (VGA) and digital video (dual-link DVI, HDMI, and DisplayPort DP) including 1080P and 4K Ultra HD. Audio is supported via 3.5mm jacks.

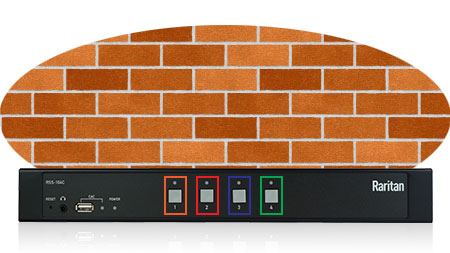

Multi-level Security Defenses (Physical and Logical)
The RSS-102 meets the 3.0 Protection Profile by strict isolation between computers at different classification levels, tamper resistant operation, firmware locked down to prevent unauthorized modification, and automatically clearing keyboard data.
Lab Tested for the NIAP Version 3.0
The RSS-102 is certified to meet all the requirements of the 3.0 Protection Profile for Peripheral Sharing Switches, which defines strict and comprehensive protections for secure desktop access of systems at multiple classification levels along with the safe use of shared peripherals.
Secure USB Device Control
The RSS-102 only connects authorized USB peripherals (keyboards, mice and smart card readers) to prevent inadvertent and insecure data transfers.
|Isolated KVM channels|
Isolated KVM ports - impossible to transfer data between connected computers at different classification levels.
|Internal Power Supply|
Built-in, auto-switching power supply.
|Chassis Intrusion Detection|
If the chassis cover is compromised, the unit becomes inoperable and the LEDs flash.
|Fixed Secure Firmware|
Firmware cannot be reprogrammed to prevent attempts to alter the logic of the switch.
|Automatically Clears Data (Secure Buffer Design)|
For added security, keyboard data is automatically cleared to prevent sharing.
|Port Switching by push buttons only|
KVM switching between connected computers is only by approved means, i.e. no insecure hotkeys.
|Ultra HD/4K Resolution|
Superior video quality. Maximum resolution is - 3840x2400@30Hz.
RSS-102 Package Contents
- (1) Raritan RSS-102
- (1) US Power cord
- (1) User Guide
- (1) Warranty Card - 2 Years
RSS-102 Resources & SupportRaritan RSS-102 Brochure (PDF)
Raritan RSS-102 User Manual (PDF)
Raritan RSS-102 Administrator Manual (PDF)
Raritan RSS-102 Features & Benefits (PDF)
Raritan RSS-102 Frequently Asked Questions (PDF)
Raritan RSS-102 Online Help Guide (Link)
Raritan RSS-102 Support (Link)
Raritan RSS-102 Specifications
|Height||1.75 in. (44.5 mm.)|
|Width||13.14 in. (333.6 mm.)|
|Depth||6 in. (152.4 mm.)|
|Weight||3.53 lbs. (1660 g.)|
|Connections & Indicators|
|Port Selection||Pushbutton Switches (square-shaped)|
|Firmware Upgrade||NOT Supported|
|Power||1 x 3-prong AC Socket|
|Video Resolutions||DVI Dual Link: 2560x1600@60Hz; 3840x2160@30Hz|
DVI Single Link: 1920x1200@60Hz
|Maximum Input Power Rating||100-240V AC (50/60Hz), 1A|
|Maximum Power Consumption||12V DC / 0.295A (3.6W)|
|Operating Temperature||32°F to 104°F (0°C to 40°C)|
|Storage temperature||-4°F to 140°F (-20°C to 60°C)|
|Humidity||0-80% RH , Non-condensing|
|Certifications||NIAP Protection Profile version 3.0|
Safety: UL, CB
EMC: FCC / CE / VCCI Class A
|Mean Time Between Failures (MTBF)||> 100,000 Hours|
|Warranty||2 years standard, an additional 3 years of extended protection is available|
