(1U) 17" High Resolution LED LCD, Drawer w/ Touchpad


FREE Shipping on orders over $100

The Rose RV1-CAKVT17/FHD is a 17" High Resolution LED LCD RackView Drawer. When you want the maximum clarity for your KVM console drawer, RackView High Res fits the bill. At 1920 x 1200, you get a very detailed picture. Of course, in addition to the 17" high resolution folding monitor, there is a touchpad mouse and USB keyboard with a separate numeric keypad. The folding and sliding features ensure easy and quick access while in use, and keep the keyboard and screen from blocking access to rack equipment when the console is not in use.

The video interface features both DVI and VGA. If you want to go all out, then hookup both video inputs and use the picture-in-picture function (PiP). As in a television, you can view two video sources simultaneously usually one at full size and another at a reduced size in a small window. You can however display them side by side as well.

The unit comes standard with a DVI/USB cable. There is no PS/2 keyboard interface in this model. To install RackView, screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView in a rack. This model also has standby on close whereby closing the lid turns the monitor off automatically and puts it in standby mode.

RackView High Res is sure to fulfill your requirements for a high quality video display. It is ideal for industries requiring precision and detail such as military, medical, or broadcast, but it serves equally well in any data center.

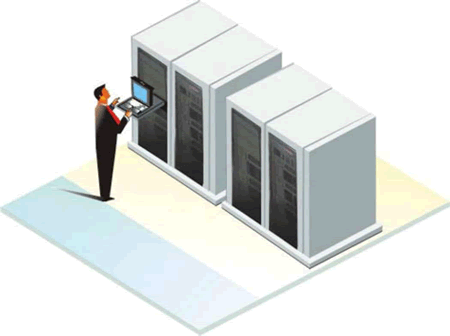

Rose RV1-CAKVT17/FHD Application Diagram

Rose RV1-CAKVT17/FHD Features:

  • High resolution 17" LCD
  • Full size keyboard
  • Resolution up to 1920 x 1200 - VGA or DVI
  • LED backlight saves power
  • Integrated touchpad or trackball mouse
  • USB keyboard/touchpad interface
  • Quick and easy rack mounting installation
  • Closing drawer puts LCD in standby
  • Monitor on-screen menu allows for easy adjustments of color, brightness, contrast, position, phase, clock and language of the display
  • Front panel controls for quick adjustments
  • Easy-glide KVM drawer can be mounted at any height in a standard 19 inch rack

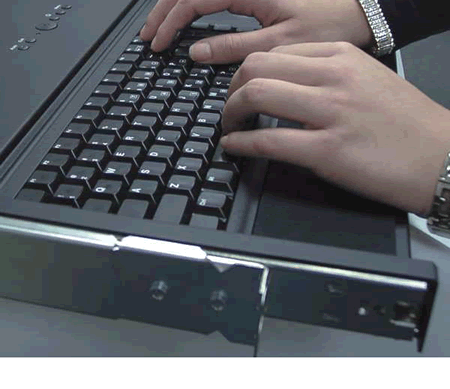

Rose RV1-CAKVT17/FHD Close Up

Rose RV1-CAKVT17/FHD Application Diagram

Rose RV1-CAKVT17/FHD Specifications:

Width 17.4 in. (442 mm.)
Height 1.75 in. (44.4 mm.) 19" 1U model
2.59 in. (65.8 mm.) 2+" 1.5U Touchscreen
Depth 25.6 in. (650 mm.)
Weight 37 lbs. (16.8 kg.)
Resolution 1440 x 900
Color 16.7 Mil
Controls Front Panel
Viewing Angle (H/V) - 160 x 160
Adjustments On-Screen-Display
Keyboard Full size keyboard
Mouse Touchpad
Connectors Video/KBD/Mouse: HD15F
Serial Touchscreen: USB
Power adapter 100-240 VAC 50/60 Hz in/+12VDC, 3.3A out
Environmental 32F - 122F (0- 50C),
5%-90% non-condensing RH
Approvals FCC Class B, CE
