Rose RackView (RV1-KVM19B)
The Rose RackView (RV1-KVM19B) offers the latest, most efficient way to organize and streamline your server rooms and multiple computers. The Rose RackView (RV1-KVM19B) is a rack mountable KVM drawer neatly fitted in a compact pull-out drawer. This easy-glide KVM drawer contains a high-resolution TFT/LCD monitor, a tactile keyboard, and a high-resolution touchpad or optical mouse.  The Rose RackView (RV1-KVM19B) can be placed at any height within a standard 19" rack. This offers the operator the maximum in comfort and takes up a minimum amount of rack space. The front panel conceals the unit when it is not in use.

Rose RackView (RV1-KVM19B) Features & Benefits:

  • The following model features are available:
    1U - 15" TFT/LCD high-resolution monitor 1024 x 768 @ 75Hz
    1U - 17" TFT/LCD high-resolution monitor  1280 x 1024 @ 75Hz
    1U - 19" TFT/LCD high-resolution monitor  1280 x 1024 @ 75Hz
  • DVI and VGA support on 19" models
  • Tactile keyboard with separate numeric keypad
  • Integrated touchpad or optical mouse
  • PS/2 connections
  • USB connections
  • Built-in single or multiple user KVM switch options provide access to as many as 1,000 computers
  • Quick and easy rack mounting installation
  • Supports AT/XT, PS/2, USB, and UNIX computers
  • Front panel conceals unit when it is not in use
  • Full size keyboard for typing comfort
  • Keyboard available in international variations
  • Monitor OSD allows for easy adjustment of color, brightness, contrast, position, and shape of the display
  • Front panel controls for quick adjustments
  • Easy-glide KVM drawer can be mounted at any height in a standard 19 inch rack

Rose RackView RV1-KVM19B

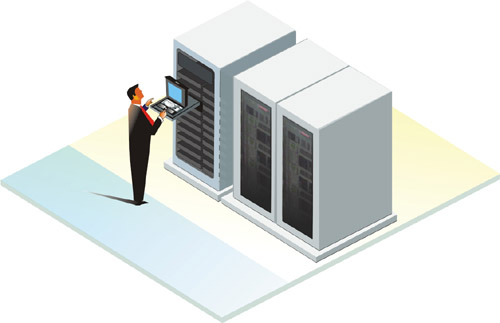

Rose RackView (RV1-KVM19B) Function Diagram

Rose RackView (RV1-KVM19B) Specifications:


15" models- 26"-36"
17" models- 26"-36"
19" models- 33.5"-44.25"


15" models- 36 lbs
17" models- 36 lbs
19" models- 38 lbs

Environmental 32°F - 122°F (0°- 50° C)
20%-85% non-condensing RH

15" models- 1024 x 768 @ 75hz
17" models- 1280 x 1024 @ 75hz
19" models- 1280 x 1024 @ 75hz

Video 15" and 17" models - HD15F
19" models - HD15F, DVI-D
Keyboard PS/2 or USB, Full size tactile keyboard with
separate numeric keypad
Mouse PS/2 or USB, Trackball or Touchpad
Colors 16.7 million
