4-port Secure EAL4+ KVM, Dual Monitor DVI-I (dual-link) - USB 3.0 Peripheral Port (CAC), Audio

SC945-001

$1,437.00$1,014.35
Save $422.65
Ports: 4 Computer Ports
Video Type: DVI-I (DVI or VGA w/ adapter)
Video Output: Dual Monitor
Features: Audio & USB CAC
FREE Shipping on orders over $100

Vertiv Cybex SC945 Brochure (PDF)
Vertiv Cybex SC945 Manual (PDF)

The Cybex SC945 secure desktop KVM is designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NAIP protection profile for peripheral sharing devices version 3.0. The SC945 delivers proven security features such as unidirectional data diode technology, which assures complete network isolation while offering user-friendly, easy switching between sources. A Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers and face recognition devices. Patented emulation technology prevents Display Data Channel (DDC) signal leakage; and guards against signal attacks.

Industry-leading security features are complemented with a range of capabilities and productivity features that make the Cybex SC945 a great investment. Experience true image reproduction with support dual-link DVI-I, which delivers resolutions up to UHD 4K (3840X2160 @ 30), via DVI to HDMI cable. NUM Lock, CAPS Lock and Scroll Lock indicators improve user interaction while maintaining unidirectional data flow from peripherals to PC. Additional usability features include, zero delay switching between connected sources and flexible assignment of audio devices.

The Cybex SC945 KVM switch delivers strong, effective security management designed to tightly control system and network access and deliver transparent security that does not impede user productivity

  • Outstanding security - Designed to meet the requirements of the latest National Information Assurance Partnership (NIAP) Protection Profile V3.0 for peripheral-sharing devices.
  • Support for USB authentication devices - A dedicated peripheral port supports CAC and additional types of authentication devices, such as facial recognition and fingerprint readers.
  • Discrete processing paths - Isolated ports on the switch provide discrete processing paths to each system, preventing data leakage, transfer or crosstalk between adjacent ports.
  • Unique NUM Lock, CAPS Lock and Scroll Lock indicators - While the Cybex series maintains unidirectional data flow, it also provides indicators that alert users when the NUM Lock, CAPS Lock or Scroll Lock is on to improve ease of use.
  • Gain true image reproduction and display flexibility - Cybex KVM switches offer the industry's broadest range of video connections. The SC945 supports dual-link DVI-I, which delivers resolutions up to UHD 4K (3840X2160 @ 30), via DVI to HDMI cable.

         *** PLEASE NOTE: For DVI-D video cards please use Vertiv DVI-D only cables. For VGA video cards please use VAD-28 with Vertiv DVI-I cables

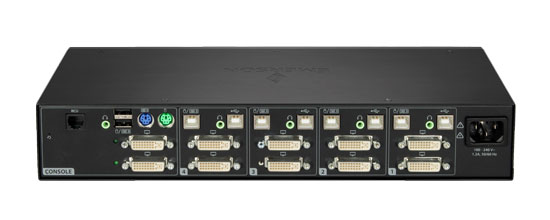

SC945 KVM Back View

SC945 back view

Avocent SC945-001 Specifications:

Mechanical
Height 2.2 in (56 mm)
Width 13.7 in (342 mm)
Depth5 in (125 mm)
Weight3.7 lbs (1.85 kg)
MicrophoneNo
SpeakerYes
Video2 x DVI-I, single-link/dual-link
HDMI and VGA with adapter
MAX ResolutionUHD 4K - 3840X2160 pixels @ 30 Hz (via DVI to HDMI cable)
DVI dual-link - 2560X1600 pixels @ 60 Hz (via DVI cable)
VGA - 2048X1536 pixels
Environmental
Operating Temperature32° to 104°F (0° to 40°C)
Storage Temperature-4° to 122°F (-20° to 50°C)
Humidity0-80% RH, non-condensing
Power
Operating Voltage100 to 240VAC
Power Consumption35W Max Internal
Device Support
CertificationsRCM, EU, FCC Class B, VCCI, c-UL
CAC/DPPYes
Warranty3 Year

Avocent Cybex (by Vertiv) SC945 is also known as SC 945

UPC / EAN Barcode icon
UPC 636430075457
EAN 0636430075457
Question: Hello, will this work on MAC keyboards?
Answer: Thank you for your inquiry,

The Avocent SC945 is fully compatible with MAC keyboards, as long as the keyboard is plugged in using a standard USB connection. Sorry for the delay, we wanted to confirm with manufacturing.

Question: Whats included in the box? Cables, Keyboard, etc...?
Answer: Thank you for your inquiry,

We have confirmed that the SC945-001 package ships with the SC945 KVM unit, the power supply, a power cable, and an user manual. KVM cables can be purchased separately in 6 ft and 10 ft lengths.

Question: We have 4, SC945 KVMs. The output from unit works fine to monitor but, when connected to Epson projector using HDMI, Projector sees no signal. Hooked monitor up to the same output cable going to the projector and it works fine. If I remove the KVM and go directly from the pc to the Epson using the same cables, it works fine. The units sit approximately 30' apart, is cable length an issue?
Answer: Thank you for your inquiry,

It is possible that the 30ft distance is enough to cut off the signal - digital signals like DVI do not degrade, they just cut off when there isn't enough data. You could test this by bringing in the projector closer and trying a shorter cable (3 to 10 ft cable). If cable distance is the problem, you can use either a DVI booster / DVI extender to extend the distance of the cable.

Many newer projectors also require HDCP (High-bandwidth Digital Content Protection) support to function - which unfortunately the SC945 does not support.

While I am currently not aware of a NIAP-certified 'Secure KVM switch' which supports HDCP, if the security certification is not required, you may want to consider the Avocent SV340 instead, which does support HDCP.

Question: Do you have volatility documentation?
Answer: Thank you for your inquiry,

See below for a LOV for all Avocent (by Vertiv) Secure SC-series KVM switches:

Letter of Volatility - Avocent SC Secure KVMs

Please let us know if there is anything else we can help you with!

Question: What is the country of origin for SC945-001
Answer: Thank you for your inquiry,

The Country of Origin (COO) of the Avocent (by Vertiv) SC940-001 is USA.

Please let us know if there is anything else we can help you with!
