HDBaseT DVI-D , USB 1.1 , RS232, CAT5/5e/6 Transmitter

SDX-PLUS-TX

$450.00$350.65
Save $99.35
FREE Shipping on orders over $100
smartavi_madeinusa

Using HDBaseT technology, the SDX-Plus DVI extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive Cat5e/6 cable. HDBaseT technology is superior to older DVI extenders that require special Cat6 shielded cable to go a short distance. The SDX-Plus also has USB keyboard and mouse, RS-232 and IR extension, giving you the ability to control your displays or devices remotely.
*Transmitter Only.

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio
  • PC KVM Extension

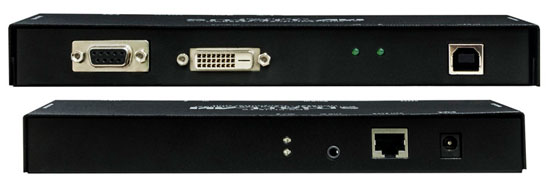

product

Features

  • Extends DVI-D up to 400 feet (120m) from the source
  • Data recovery for digital video
  • Supports up to 1920x1200 digital video resolution
  • Automatic DDC Learning
  • USB Keyboard and Mouse
  • Uncompressed Video HDBaseT
  • RS-232 extension allows for remote control of displays
  • External power adapter for transmitter and receiver unit
  • Plug and play

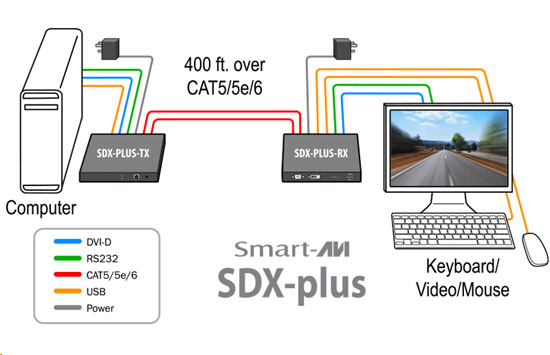

diagram

SmartAVI SDX-Plus Transmitter Specifications

Mechanical
Height 1  in. (2.54 cm)
Width 8.25 in. (20.95 cm.)
Depth3.62 in. (9.19 cm.)
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)(1) DVI-D 29-pin females
Output Interface (RX)(1) DVI-D 29 pin female
ResolutionUp to 1920x1200 @ 60Hz
Up to 4K/2K (3840x2160) @30Hz
DDC5 volts p-p (TTL)
USB Signal TypeOHCI/UHCI (USB 1.1)
PowerExternal 100-240 VAC/5VDC3A @20W
UPC / EAN Barcode icon
UPC 813280023139
EAN 0813280023139
