SmartAVI Video/Audio/IR Point to CAT5 Point Eextender System

SLI-100S

$249.00

Discontinued
Recommended replacement: SmartAVI HDC-VX
Alternative options: Contact Us

The SLI-100 allows the extension of Composite Video, Stereo Audio and Infra-Red control signals via a single Category 5 twisted pair cable using a unique method of transparent data transfer.

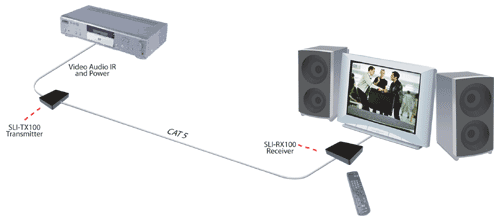

SLI100 Diagram



SmartAVI SLI100 Features and Benefits:

  • Uses easy to install, inexpensive CAT5.
  • Output reaches up to 1000 feet.
  • Supports PAL, NTSC and SECAM.
  • Video 100 MHz Bandwidth.
  • Video cable compensation.
  • Sends Composite Video, Stereo Audio, IR and Power signals over single CAT5.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Remote Units come with Buffered Outputs.
  • Compact Enclosure.
  • Optional power supply for remote unit.
  • Fully compliant with standard modulated IR and the latest IRDA.
  • Fully transparent path for all protocols and data transfers.

    SmartAVI SLI100 Specifications:

    Range
    AV+IR over CAT5 UTP 333m (1000 ft)
    Remote Control Range 6 m (18 ft) 60 deg
    Video Input
    Signal type NTSC/PAL/SECAM Composite Video 1V p-p
    Bandwidth 100 MHz
    Impedance 75 Ohm
    Connector RCA, Female
    Audio Input
    Signal Type Stereo Audio
    Bandwidth 15 MHz, 0 dB
    Impedance 100 Ohm
    Connector 3.5 mm mini jack, Female
    Video Output
    Signal Type NTSC/PAL/SECAM Composite Video
    Bandwidth 100 MHz
    Impedance 75 Ohm
    Connector RCA, Female
    Audio Output
    Signal Type Stereo Audio
    Bandwidth 15 MHz, 0 dB
    Impedance 100 Ohm
    Connector 3.5 mm mini jack, Female
    IR Input
    Signal Type 30-100 kHz modulated IR
    Connector 3.5 mm mini jack, Female
    Power 5 x 2.1mm 12VDC 500mA
    Dimensions 2.5"x 2.5" x 1.0" (85 x 84 x 35 mm)
    Weight 1 lb (0.3 Kg)
  •
