SmartAVI UXGA/Audio/RS232/IR Point to Point CAT5 Extender System

SLX-200S

$425.00

Discontinued
Recommended replacement: SmartAVI XTPRO
Alternative options: Contact Us

The SmartAVI SLX-200 enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.  Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors and/or speakers.  The SLX-200 can also be used in educational presentations to multiple locations, in schools and in other training facilities.

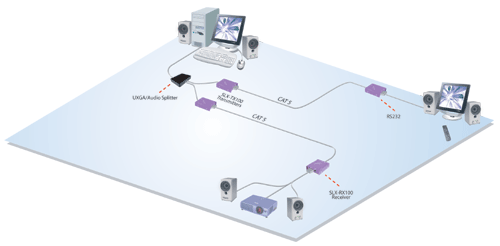

SLX200 Diagram



SmartAVI SLX-200 Features and Benefits:

  • Support Dual Screens
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Output reaches up to 1,000 feet (300 m).
  • Supports high resolution clear video up to 1600x1200.
  • 300 MHz Bandwidth.
  • Sends high-resolution UXGA, Stereo Audio and power signals over single CAT-5.
  • Compatible with VGA, XGA, Sun, MAC and SGI signals.
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in lightning, power surge and transient protection.
  • Remote Units come with Buffered Outputs.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact Metal Case Enclosure.
  • Optional power supply for remote unit.
  • Inline power up to 300 m.
  • Support RS232 (or IR)

    Video
    Bandwidth 150MHz
    Analog signal level 1Volt
    Impedance 75 ohms
    Connector High density HD15
    Format VGA/SVGA/XGA/UXGA/RGBHV/RGsB
    Sync TTL Horizontal Sync Range: 15 to130
    KHz Vertical Sync Range:30to120 Hz
    Audio
    Bandwidth 20KHz
    Signal level 0dB
    Impedance 10K ohms
    Connector 3.5mm jack socket
    System Cable
    Type Cat5 UTP EIA 568A
    Connector RJ45
    Power
    Requirements 24V DC @500mA
    Connector 5 x 2.1mm DC jack
