NTI VEEMUX 64x32 CAT5 Audio/Video Matrix Switch via CAT5 to 1,000 Feet

SM-64X32-C5AV-1000

$30,425.00$27,977.01
Save $2,447.99
FREE Shipping on orders over $100

The VEEMUX¨ Audio/Video Matrix Switch routes audio and video inputs from many video sources to multiple displays (projectors, monitors, etc.) and speakers via inexpensive CAT5/5e/6 cable. It is capable of connecting to as many as 64 video inputsources via transmitters and 32 video ouput displays via receivers with a maximum extension of 1,000 feet between the transmitters and receivers. In addition to the remote inputs/outputs, the switch features one direct-connect VGA and stereo audio input/output for every 16 remote RJ45 connectors.

The audio/video signal from a single input can be routed to one or more destinations. Each image will be as crisp and clear as if directly connected to the original source. Buffered video outputs and digital transmission of audio signals ensures integrity is maintained throughout the system.

Features:

  • Configure and control the switch through Ethernet, serial port, front panel buttons, or Infrared remote control.
  • Matrix Control Software with Graphical User Interface is included.
  • Supports resolutions up to 2048x1536 using NTI's 1,000' extenders and 1920x1440 using NTI's 600' extenders.
  • Inputs and outputs can be named.
  • Video quality adjustment is done automatically at every connection change, or can be forced via the front panel or web interface.
  • Equipped with Liquid Crystal Display (LCD) for front panel operation.
  • A digital VU-meter shows the audio levels of the selected input.
  • Each output provides one video signal and one stereo audio signal.
  • Each input can be independently connected to any or all outputs with no image degradation
  • No loss of audio or video quality between the transmitters and receivers.
  • VGA, S-Video and HDTV transmitters and receivers can be supported on the same VEEMUX unit.
  • VGA inputs only work with VGA outputs, S-Video inputs only work with S-Video outputs, and HDTV component video inputs only work with HDTV component video outputs.
  • The 1,000' transmitters will work with 600' receivers, and vice versa.
  • The maximum extension is 600 feet between the transmitter and receiver.
  • For resolutions at different lengths, refer to the 600' extender resolution chart.
  • The VGA video from units with audio and/or RS232 can be routed to each other and to video-only units.

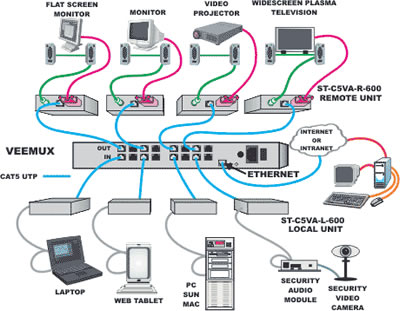

NTI VEEMUX Audio Video Matrix KVM Switch Diagram
NTI VEEMUX Audio Video Matrix KVM Switch Diagram

 Specifications:

Mechanical
Height 7 in.
Width 19 in.
Depth 24.08 in.
Environmental
Operating Temperature 32°F to 100°F (0°C to 38°C)
Storage Temperature -20°F to 140°F (-30°C to 60°C)
Relative Humidity 17 to 90% non-condensing RH
Power
Operating Voltage 110 or 220 VAC
Power Frequency 50 or 60 Hz via IEC connector
Power Consumption 20W
Cables VGA + Audio Extenders to 600 feet Distances & Resolutions for CAT5/5e/6/6a Cables (not included)
Video Female 15-pin HD connectors
One direct-connect input connector for every 16 RJ45 connectors
Use the DIP switch to select between the direct-connect input or remote RJ45 input for port 16, 32, 48 and 64.
One direct-connect output connector for every 16 RJ45 connectors.
Splits signal with corresponding remote output (ports 16, 32, 48 and 64)
1920x1200 video resolution with no degradation.
Impedance: 100 Ohms
Audio 3.5mm stereo audio jacks
  One direct-connect input connector for every 16 RJ45 connectors
  Use the DIP switch to select between the direct-connect input or remote RJ45 input for port 16, 32, 48 and 64.
  One direct-connect output connector for every 16 RJ45 connectors.
  Splits signal with corresponding remote output (ports 16, 32, 48 and 64)
  Drives 8-Ohm speakers.
  Unbalanced gain: user defined.
Frequency response: 20 Hz to 20 kHz, +/-0.5 dB.
Total harmonic distortion + noise: 0.01% at 1kHz.
  200 mW RMS of continuous power per output.
  When switching ports, audio mutes until video has been synchronized.
