8-Port Serial Console

SN9108

$1,193.00$1,081.65
Save $111.35
FREE Shipping on orders over $100

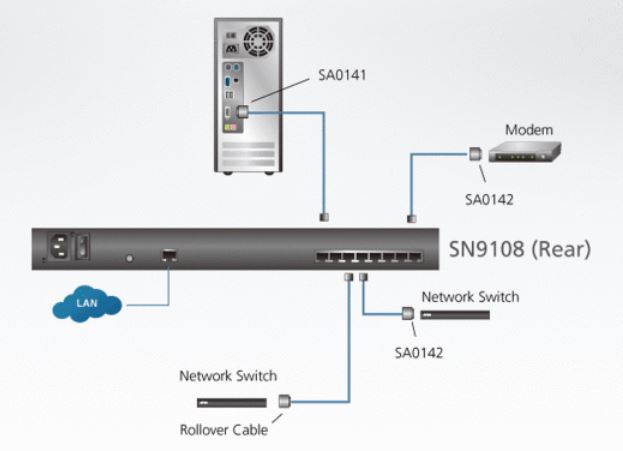

The SN9108 serial console server integrates cutting edge technologies to provide secure serial device access and management for data centers. This 8-port serial console server offers both in-band and out-of-band remote serial console access to servers and network devices via a direct Telnet/SSH client and applet viewer. SN serial console servers work in tandem with ATEN's Power Over the NET remote power management systems. Both can be utilized through ATEN's CC2000 software to provide centralized serial device access and integrated power management. With their comprehensive features, the SN Series helps to maximize IT productivity, increase scalability and reduce operational costs with easy remote management of serial devices.

Product Features and Benefits

  • In-band Ethernet access of serial devices
  • Browser access with an intuitive GUI
  • Serial operating modes - Real COM, TCP Server, TCP Client, UDP, Serial Tunnel and Virtual Modem
  • 128-/256-bit SSL encryption for Real COM, TCP Server, TCP Client, Serial Tunnel and Virtual Modem
  • System configuration via web browser, Telnet/SSH client and local console
  • Comprehensive logging and event notification
  • Firmware upgradeable
  • SSH and SSL support
  • Supports CA certificates
  • Configurable user permissions for port access

Package Contains

  • 1x SN9108 Serial Console Server
  • 1x Power Cord (AC model)
  • 1x Mounting Kit
  • 1x Lok-U-Plug
  • 1x Lok-U-Plug Installation Tool
  • 1x Foot Pad Set (4 pcs.)
  • 1x Software CD
  • 1x User Instructions
Serial Connections8
Connectors
Serial8 x RJ-45 Female
LAN1 x RJ-45 Female
Power1 x 3-prong AC socket
Switches
Reset1 x Recessed Pushbutton
Power1 x Rocker Switch
LED's
Serial Port Status8(Green)
10 / 100 / 1000 Mbps1(Red / Orange / Green)
Power1(Blue)
Power Consumption110V/10.6W; 220V/11.7W
Environment
Operating Temperature32-122°F (0-50°C)
Storage Temperature-4-140°F (-20-60°C)
Humidity0-80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight6.9 lbs. (3.13 kg)
Dimensions(L x W x H)17.2 x 8.6 x 1.7 in. (43.72 x 21.76 x 4.40 cm.)
UPC / EAN Barcode icon
UPC 672792403385
EAN 0672792403385
