NTI ST-2C5V-L-600 CAT5 VGA Video Extender / 2-Port Splitter (Transmitter)

ST-2C5V-L-600

$150.00$137.93
Save $12.07
FREE Shipping on orders over $100

The NTI XTENDEX (Remote & Local Unit) Extender broadcasts VGA video locally and remotely up to 300/600 feet away from a computer using CAT5/5e/6 cable. Each video extender consists of a local unit connected to a computer or the output of an NTI switch, and a remote unit connected to a monitor or the input of an NTI switch.

Features

  • Supports local and remote VGA monitors.
  • Built-in surge protection.
  • Available with optional stereo audio or RS232 control.
  • Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.

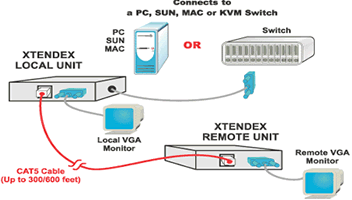

NTI XTENDEX (ST-C5V-600) (Remote & Local Unit)

NTI XTENDEX Diagram




NTI XTENDEX

Specifications:


Host Connection
  Supports a PC, SUN, MAC or NTI Switch.
  Male 15-pin HD connector for computer connection.
  Optional RS232 support - female 9-pin D connector (ST-C5V-600 only).
  Optional stereo audio support - 3.5mm stereo plug.
Local Access
  Crisp and clear 1920x1440 video resolution.
  Female 15-pin HD connector for local VGA monitor.
  Optional RS232 support - male 9-pin D connector (ST-C5V-600 only).
  Optional stereo audio support - 3.5mm stereo jack.
  Use an optional VGA adapter to connect S-Video or RCA displays.
Power

Power consumption:
10W
  110 or 220 VAC at 50 or 60 Hz via AC adapter (Included).
Cables
  CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Dimensions
  WxDxH (in): 3.5x3.1x1.2
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature:  -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Regulatory Approvals
  CE

Remote Unit
  Supports resolutions up to 1920x1440; refer to the resolution charts below for resolutions at different lengths.
  Female 15-pin HD connector.
  Optional 3.5mm stereo audio connection.
  Optional male 9-pin D connector for RS232 (ST-C5V-600 only).
  Use an optional VGA adapter to connect S-Video or RCA displays
Video Adjustment Quality
  video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.
Power

Power consumption:
10W
  110 or 220 VAC at 50 or 60 Hz via AC adapter (Included).
Dimensions
  WxDxH (in): 3.5x3.1x1.2
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Regulatory Approvals
  CE


Options:

Stereo Audio:
Stereo audio can be heard both locally and remotely.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70 dB.
Input impedance: 10k Ohms.
Line level output; supports multimedia speakers.
Maximum I/O levels: 3.1Vp-p (line level).

RS232 Control:
Supports TXD, RXD, DTR, DSR, CTS and RTS.
Baud rate up to 56000.
Support for a touch screen monitor.
