NTI HDTV Component Video + Digital Audio Extender via CAT5 up to 600 ft
ST-C5CMPDA-600
The NTI XTENDEX ST-C5CMPDA-600 HDTV + Digital Audio Extender transmits YPbPr component video and analog or digital audio up to 600 feet away from a component video device (DVD, CD, satellite receiver, etc) using CAT5/5e/6 cable.The ST-C5CMPDA-600 video extender consists of a local unit that connects to a component video device and also supplies audio/video to a local display and speakers, and a remote unit that connects to a TV or monitor and speakers.
NTI XTENDEX ST-C5CMPDA-600 Features and Benefits:
- Sharpest and clearest video quality over CAT5 of any manufacturer.
- Easily transmit a high-definition component video signal to a projector in the ceiling by using compact CAT5 cable instead of bulky cable bundles.
- Send high quality video signals from the DVD player in your basement to the great room upstairs.
- Supports local and remote TVs/monitors/projectors and speakers.
- Supports 480i (interlaced), 480p (progressive), 720i, 720p, 1080i, and 1080p formats.
- Supports coax S/PDIF, DTS Digital Surroundª, and Dolby Digitalª 5.1 digital signals.
- Built-in surge protection.

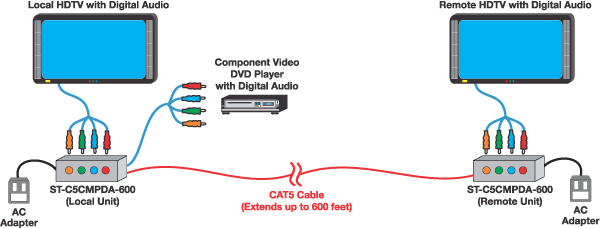

NTI XTENDEX Wall Mount VGA + Stereo Audio Extender Diagram
(ST-C5CMPDA-600 depicted here)
NTI XTENDEX ST-C5CMPDA-600 Package Content:
- 1 XTENDEX ST-C5CMPDA-600 Local Unit
- 1 XTENDEX ST-C5CMPDA-600 Remote Unit
- 2 120VAC or 240VAC at 50 or 60Hz-9VDC/1.0A AC Adapters
- 1 User manual
NTI XTENDEX ST-C5CMPDA-600 Specifications:
| Mechanical | Local Unit |
| Height | 4.5 in. |
| Width | 4.5 in. |
| Depth | 1.4 in. |
| Remote Unit | |
| Height | 1.2 in. |
| Width | 3.5 in. |
| Depth | 3.1 in. |
| Environmental | |
| Operating Temperature | 32 to 100°F (0 to 38°C) |
| Storage Temperature | -20 to 140°F (-30 to 60°C) |
| Local Unit | |
| Connectors | 1 x 15-pin HD for computer connection; 1 x 3.5mm stereo audio jack |
| Resolution | Up to 1920 x 1440 |
| Remote Unit | |
| Connectors | 1 x 15-pin HD connector; 1 x 3.5mm stereo audio jack |
| Resolution | Up to 1024 x 768 at 500 ft (CAT5); Up to 1600 x 1200 at 300 ft (CAT5); Up to 1920 x 1440 at 100 ft (CAT5) |
| Stereo Audio | |
| Output | Line level; supports multimedia speakers |
| Frequency Response | 20 Hz to 20 kHz, +/- 1 dB |
| Signal-to-Noise Ratio | 76 dBA |
| Stereo Crosstalk | -70 dB |
| Input Impedance | 10k Ohms |
| Total Harmonic Distortion & Noise | 0.017% |
| Power | |
| Local Unit | 110 or 220 VAC, 50/60 Hz via AC Adapter |
| Remote Unit | Powered from local unit |
