NTI XTENDEX KVM Extender
ST-C5KVM
The NTI XTENDEX (ST-C5KVM) KVM Extender allows one keyboard, monitor and mouse to be placed up to 1,000 feet from a computer using CAT5 UTP cable. The XTENDEX (ST-C5KVM) KVM Extender by NTI consists of a local unit that connect to a computer or server, and a remote unit that connects to a monitor, keyboard and mouse.
NTI XTENDEX (ST-C5KVM) Features & Applications
- Provides video output to a local monitor.
- Sharpest and clearest VGA of any manufacturer.
- Compatible with NTI switches.
- Keep-alive keyboard/mouse emulation for flawless operation.
- Automatic quality equalization control compensates for image quality loss over long cables.
- Built-in surge protection.

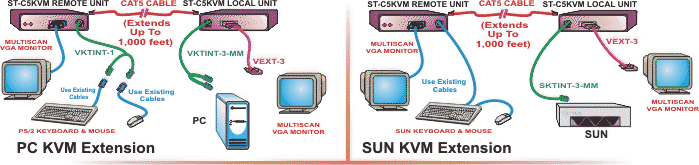

NTI XTENDEX KVM Extender
(ST-C5KVM) Diagram
NTI XTENDEX KVM Extender (ST-C5KVM)
Specifications:| Local Unit | |
| Supports PS/2 PC and legacy SUN. | |
| Male 15-pin HD connector for host computer. | |
| Female RJ45 connector for CAT5/5e/6 cable. | |
| Female 15-pin HD connector for local VGA monitor. | |
| Supports Separate and Composite TTL level sync. | |
| Power | |
| 110 or 220 VAC at 50 or 60 Hz via AC adapter. | |
| Power Consumption | 5W. |
| Cables | |
| 3-foot VEXT-3 VGA cable included. | |
| 3-foot VKTINT-3-MM PS2 mouse keyboard cable included. | |
| 1-foot VKTINT-1 8-pin miniDIN to dual 6-pin miniDIN adapter cable included. | |
| 3-foot SKTINT-3-MM SUN mouse keyboard cable included. | |
| Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included). | |
| Video Adjustment Quality | |
| Automatically adjusts the video quality to compensate for varying lengths of CAT5 cable. | |
| Environmental | |
| Operating temperature: | 32°F to 100°F (0°C to 38°C). |
| Storage temperature: | -20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH. |
| Regulatory Approvals | CE |
Warning!
The ST-C5KVM is not designed to be connected to an Ethernet card, Ethernet router,
hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices
connected to the Ethernet may result.
| Remote Unit | |
| Female 15-pin HD connector for monitor. Female 8-pin miniDIN connector for keyboard and mouse. | |
| Female RJ45 connector for CAT5/5e/6 cable. Crisp and clear 1024x768 resolution at 1,000 feet. | |
| Higher resolution supported at shorter distances. | |
| Supports PS/2 and SUN devices. Keyboard and mouse must be of the same platform. | |
| Compatible with all standard 2-button PS/2 mice as well as the following: | Alps Glidepoint Touchpad. |
| Cirque Glidepoint Touchpad. | |
| IBM Scroll Point mouse. | |
| Kensington Orbit Trackball. | |
| Logitech (and other) 3-button mice. | |
| Microsoft Ballpoint mouse. | |
| Microsoft IntelliMouse. | |
| SUN 3-button mice are supported. | |
| Power | |
Power consumption: | 10W |
| 1110 or 220 VAC at 50 or 60 Hz via AC adapter. | |
| Environmental | |
| Operating temperature: | 32°F to 100°F (0°C to 38°C). |
| Storage temperature: | -20°F to 140°F (-30°C to 60°C). |
| Operating and Storage Relative Humidity: | 17 - 90% non-condensing RH. |
| Regulatory Approvals | CE |
