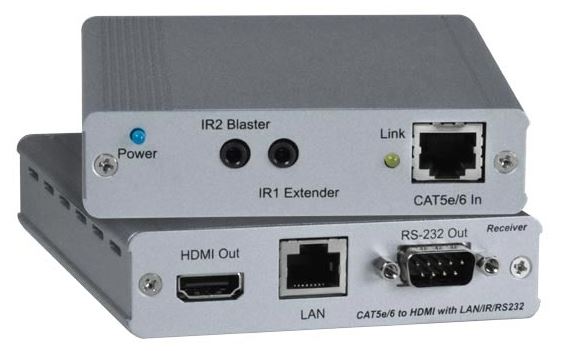

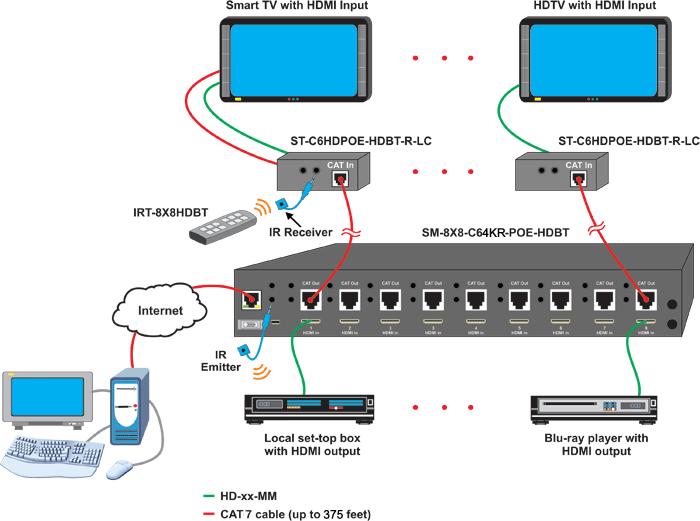

This receiver enables remote access for the SM-8X8 NTI systems. This unit supports Ultra-HD 4Kx2K resolutions to 4096x2160, HDTV resolutions to 1080p, and computer resolutions to 1920x1200
|Video Output||Supports Ultra-HD 4Kx2K resolutions to 4096x2160, HDTV resolutions to 1080p, and computer resolutions to 1920x1200 One female HDMI output connector.|
One female RJ45 HDBase-T connector for sending/receiving high definition video, audio, IR, Ethernet and DDC signals.
Two female 3.5mm ports for connecting an IR transmitter or receiver.
One female Ethernet port for connecting a network device such as a 100Base-T router, hub, smart TV, or smart Blu-Ray player.
|Dimensions W x D x H||4.02" x 4.53" x 0.98" (102 x 115 x 25mm)|
|Power||Powered by matrix switch via Power over Ethernet (PoE).|
Power consumption: 7W.
|Environmental||Operating temperature: 32 to 104°F (0 to 40°C)|
Storage temperature: -4 to 140°F (-20 to 60°C)
Operating/storage relative humidity: 20 to 90% non-condensing RH.
|Regulatory Approvals||CE, FCC, RoHS, TAA|
