2-port desktop KVM, DisplayPort 1.2 & Audio

SV220D-001

$655.00$462.35
Save $192.65

Discontinued
For upgrade or replacement options: Contact Us

Video: DisplayPort
Ports: 2 Computers
Output: Single Monitor

Avocent Vertiv SV220D Datasheet (PDF)
Avocent Vertiv SV220D Brochure (PDF)
Avocent Vertiv SV220D Manual (PDF)

The Avocent SV220D desktop KVM switch helps bring order to the desktop. Whether managing a small office/home office or a multimedia desktop at a large organization, the SV220D provides users with instant access to up to two computers - all through a single monitor, keyboard and mouse.

The SV220D also provides unique productivity features to help users work more efficiently across systems. Managed Copy and Paste enables effortless transfer of data from one system to another; and this function can be customized to limit the formats and types of data that can be transferred. Advanced video support provides a native Display Port connection with video resolutions up to UHD 4K (3840x2160 @ 30). Additional usability features include, zero delay switching between connected sources and flexible assignment of audio devices.

The Avocent SV220D KVM switch is a cost effective productivity solution designed to: Increase productivity with simple, rapid access to systems, Gain true image reproduction and display flexibility with support for UHD 4K displays, and Reduce costs with fewer peripheral purchases and easier IT maintenance

  • Advanced video support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible.
  • Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
  • Independent audio switching lets users freeze audio while simultaneously working on a different system.
  • Instant mouse and keyboard switching via emulation assures zero delay when switching between systems.
  • * DP++ (DP Dual Mode) requires use of an externally powered DP++ adapter. Graphics source must be DP++ compliant.

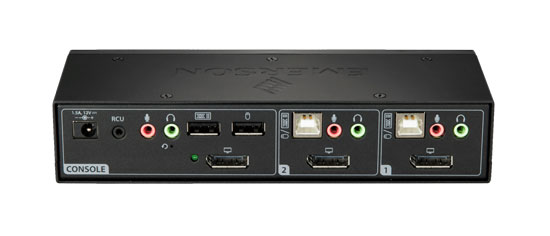

    SV220D KVM Back View

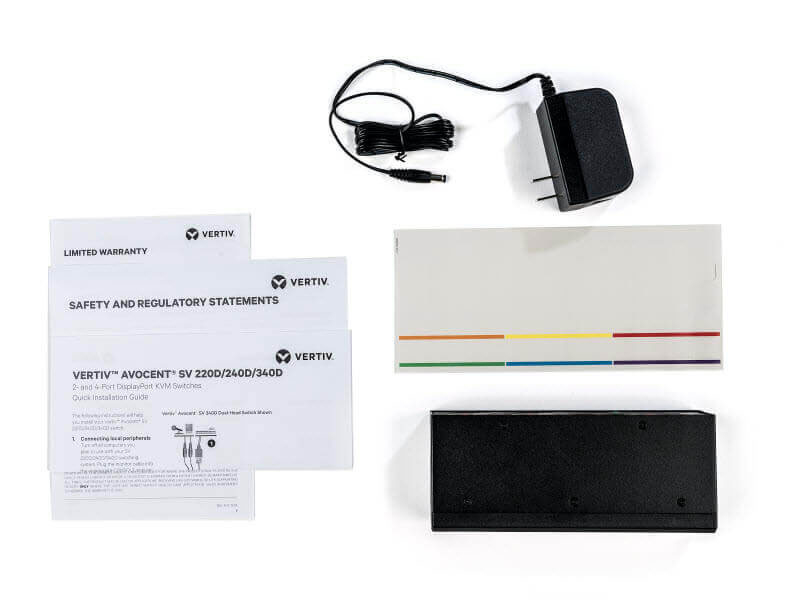

    sv220D back viewAvocent Vertiv SV220D What's Included? Package contents

    Avocent SV220D-001 Specifications:

    Mechanical
    Height 1.4 in (35 mm)
    Width 7 in (177 mm)
    Depth2.4 in (61 mm)
    Weight1 lbs (0.5 kg)
    MicrophoneYes
    SpeakerYes
    VideoDisplay Port 1.2
    MAX ResolutionUHD 4K resolutions up to 3840x2160 @ 30 Hz
    Environmental
    Operating Temperature32° to 104°F (0° to 40°C)
    Storage Temperature-4° to 140°F (-20° to 60°C)
    Humidity0-80% RH, non-condensing
    Power
    Operating Voltage100 to 240VAC
    Power Consumption12V DC, 1.5A (maximum) power adapter with center-pin-positive polarity
    Device Support
    CertificationsRCM, EU, FCC Class B, VCCI, c-UL
    USB Peripheral PortsNo
    Warranty3 Year

    Avocent Cybex (by Vertiv) SV220D is also known as SV 220D

    UPC / EAN Barcode icon
    UPC 636430075600
    EAN 0636430075600
Question: Your desc: "Instant monitor, mouse and keyboard switching via emulation" - does this item actually have DP emulation (EDID)?
Answer: Thank you for your inquiry,

Since DisplayPort is a data signal connection instead of a typical video signal, most manufacturers including Avocent have not implemented DP video emulation. It is typical to notice a couple of second delay during switching with the SV220D.

However, SmartAVI did recently came out with a new switch series (D2H-4P-S / D2H-4P-Duo-S / D2H-4P-Quad-S) that emulates HDMI video signal over a DisplayPort connection.

Thank you for the feedback, I will fix that bullet based on the product family asap.

If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.

Question: Do the SV220D and SV240D support lower resolutions at higher refresh rates than @30 Hz, such as 2560x1600 @60 Hz?
Answer: Thank you for your inquiry,

The maximum resolution that the Avocent SV220D & SV240D support at 60Hz is 3840x2160 @ 60Hz. So 2K (2560x1600) would also be supported at 60Hz.

If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative. Sorry for the delay and thank you for your patience as we updated KVMSO to a new format.

Question: Does the SV220D have USB 3 or 2 port? The description says USB 3.0 but the ports in the image are not blue like on the SV240D.
Answer: Thank you for your inquiry,

The SV200-series uses USB 2.0 ports for the keyboard and mouse connections, and USB 3.0 for the USB peripheral ports. However, the SV220D does not feature USB peripheral ports like like its sibling the SV240D. I have updated the product page to reflect this on next publish - my apologies for any inconvenience.

If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.

Question: Does this support mst for daisy chaingin of monitors?
Answer: Thank you for your inquiry. As long as the monitor and attached computers meet the requirements, this device should support Daisy Chaining of DP monitors.

Question: My switch keeps losing connection to the number 2 port. Is there a way to reset this device?
Answer: Thank you for your inquiry,

We are sorry to hear of the issue you are experiencing. Let's get you in touch with Vertiv's Technical Support team to trouble shoot your environment to see what may be causing that issue. Please feel free to reach out to Vertiv Technical Support at +1 888 793 8763 or click the "Email Contact" link here to fill out a technical support form.

Please let us know if there is anything else we can ever help you with!
