Avocent SwitchView IP KVM Over IP



The upgrade for this product is the Avocent SVIP1020-001.

Remotely control your computer or KVM switch with the Avocent SwitchView IP (SVIP1010-AM)Avocent's SwitchView IP (SVIP1010-AM) adds economical remote access capability to existing KVM switches. With secure, browser-based access, you can have BIOS-level, console access to multiple servers anywhere, anytime.

Avocent SwitchView IP (SVIP1010-AM)

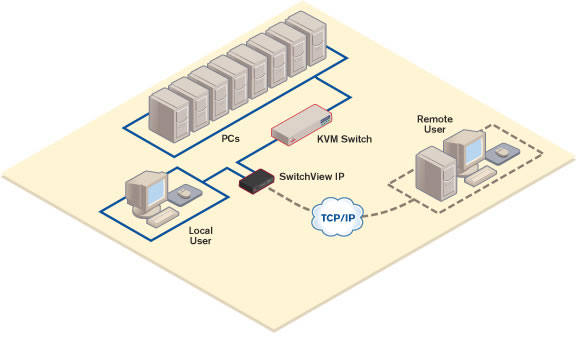

Avocent SwitchView IP (SVIP1010-AM) Function Diagram

Avocent SwitchView IP (SVIP1010-AM) Features and Benefits:

  • BIOS level access to servers via a standard IP connection
  • Adds IP remote access to existing KVM switches
  • Browser-based access to your server from any location
  • 128bit SSL encryption ensures secure remote connection
  • Flash upgradeable for quick updates

Avocent SwitchView IP (SVIP1010-AM) Specifications:

Height 1.0 in. (2.54 cm)
Width 4.5 in. (11.3 cm)
Depth 7.75 in. (19.68 cm)
Weight 2 lbs. (0.91 kg) without cables
Operating Temperature 32 to 149 degrees F (0 to 65 degrees C)
Storage Temperature Humidity: 80%, non-condensing
Operating Voltage 12 v DC
Power Frequency 3 W
Input 10.5 W maximum (120 v, 60 Hz)
Supported Hardware
Computers PS/2
Monitor VGA compatible, Local Port Maximum: 1280 x 1024 @60Hz
Peripherals Standard PS/2 keyboard connection, Standard PS/2 mouse connection
Approved Agency FCC part 15B, EN55022 Class A, EN55024, EN6100-3-3
