Cyclades-TS100 1-port console server



Recommended replacement: Aten SN3101
Alternative options: Contact Us

Cyclades TS100 Serial Server (TES0061)

Cyclades' branch office management solutions are powerful, yet highly compact console servers used to connect serial devices to a TCP/IP network.

The Cyclades-TS100 (TES0061) use their PowerPC dual CPUs to transfer data from their 10/100BT Ethernet interface to their RS-232/RS-485 (software selectable) serial interface and vice-versa, enabling communication between the serial device and the network. All Cyclades' branch office management solutions support SSH v2 (Secure Shell) for a high degree of security in data connections.

Unlike other console server equipment designed with proprietary software technologies, the Cyclades-TS100 (TES0061) leverage Embedded Linux and other Open Source software. Users have the flexibility and power to customize their operation, modifying or adding features as needed.

Cyclades' branch office management solution have all the power and functionality necessary to take network connectivity to the next level.

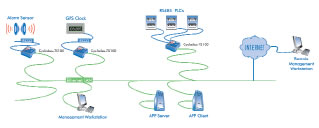

Cyclades TS100 Function Diagram (TES0061)
Cyclades TS100 Function Diagram (TES0061)1)

TS100 Cyclades TES0061 Applications:

  • Branch Office Management

  • Server and Network Management

  • Facilities Management

  • Console Management

  • Retail Automation

  • IP enabling of Legacy Serial Devices

Cyclades TS100 (TES0061) Features and Benefits

  • Operating System: Linux

  • Accessibility:  In-Band (Ethernet) and Out-of-band (Dial-up modem) support

  • Security:  SSH v1 and v2; Local, RADIUS, TACACS+ and LDAP Authentication; Token-based strong authentication (SecurID); Local backup user authentication support; PAP/CHAP authentication (for dial-up lines); IP Packet and Security Filtering; User Access Lists per port; System Event Syslog

  • Console Management:  Sun break-safe (Solaris Ready Certified); Break Over SSH support; Off-line data buffering - Local or Remote (NFS/Syslog); Timestamp for data buffering; Unlimited number of simultaneous sessions; Simultaneous access on the same port (port sniffing); Clustering (central access to multiple console servers); Event notification (email, pager, SNMP trap)

  • Port Access: Directly by TCP port, IP address or server name; Telnet/SSH with menu; HTTP/HTTPS

  • System Management: Configuration wizard for first time users; Command Line Interface (Linux Shell); Web Management Interface (HTTP/HTTPS); SNMP

  • Cabling: CAT5 compatible adapters for simpler cabling (sold separately)

  • Upgrades: Upgrades available on FTP site, no charge; Flash upgradeable; TFTP support for network boot

  • Customization: Cyclades Development Kit (CDK) available for custom applications, no charge

  • Additional Protocols Supported: DHCP for dynamic IP address assignment; PPP/SLIP for dial-up; NTP for time server synchronization; RFC2217 support for remote serial port access

Cyclades TS100 (TES0061) Specifications




Dimensions TS100: 2.8 x 3.4 x 1.2 in (7.0 x 8.5 x 3.0 cm) (standard 35mm DIN-rail based, 4 module width)



Operating Temp

Operating Temperature 50°F to 112°F (10°C to 44°C)

Storage Temp

Storage Temperature -40°F to 185°F (-40°C to 85°C)


5% to 90% non-condensating



Operating Voltage & Power Supply

Internal 100-240VAC, 50/60 Hz, 28W max (TS1000)

Supported Hardware



MPC855T (PowerPC Dual-CPU)


32MB RAM / 4MB Flash (TS100/TS800)


1 Ethernet 10/100BT on RJ45
1 RS232 Console on RJ45
RS232 Serial Ports on RJ45


FCC Part 15, A
EN55022, A
EN55024 (TS1000/TS2000/TS3000)
UL 1950 (TS1000/TS2000/TS3000)
Solaris Ready

Question: Hello do you have 2 units on stock of the Part #TES0061-001
Answer: Thank you for your inquiry. Unfortunately, the TES0061 has been discontinued and we do not have any stock. Please give us a call at 1-877-586-6654 to discuss alternatives.
