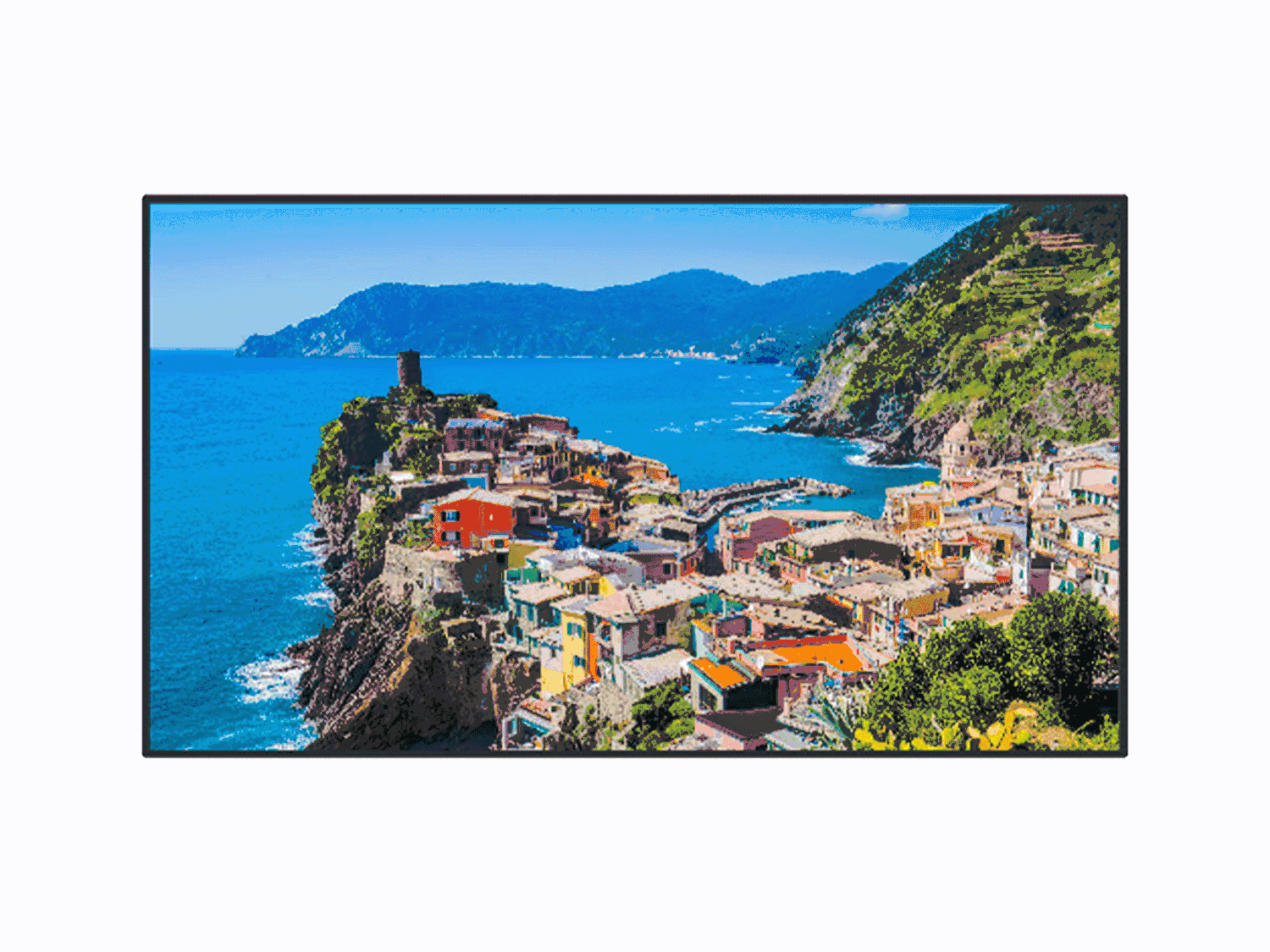

Panasonic 75" 4K UHD LED LCD Standard Indoor SDM Display

TH-75EQ2W

$4,289.00$3,557.00
Save $732.00
Panel Size: 75in
FREE Shipping on orders over $100

Panasonic TH-75EQ2W
75" 4K UHD LED LCD Standard Indoor SDM Display 500 cd/m

Large 75" 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.


Panasonic TH-75EQ2W Features

  • Easy to connect peripherals (camera/speaker) directly to display
  • Increased input type and number of available inputs
  • Function slot for increased functionality
  • Higher visibility due brightness typically found on higher end products
  • Installation flexibility - portrait and tilt supported

TH-75EQ2W Resources

Panasonic TH-75EQ2W Specifications

Display
Panel Size 74.5-inch (1892.7 mm)
Aspect Ratio 16:9
Effective Display Area (W x H) 1649.6 x 927.9 mm (64.94" x 36.53")
Resolution (H x V) 3840 x 2160
Brightness (Typ) 500 cd/m
Contrast Ratio 5000:1
Response Time 9.5 ms
Viewing Angle (Horizontal/Vertical) 178°/ 178° (CR≧10)
Panel Surface Treatment Anti-glare type (Haze 25 %)
Terminals
HDMI In TYPE A Connector x 3 (HDCP2.2 supported)
PC In/Audio In (L/R) Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1
Serial D-sub 9-pin x 1, RS232C Compatible
Audio Out Stereo Mini Jack (M3) x 1
LAN RJ45 x 1, RJ45 10BASE-T/100BASE-TX
USB Type A: DC 5 V/1 A, USB 3.0 is supported,
Type A: DC 5 V/2 A, USB 2.0 is supported,
Type C: max ~ 60W (Power Delivery compatible), USB2.0 is supported, DisplayPort Alternate mode compatible
SLOT SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A
Audio
Built-in Speaker 20 W [10 W + 10 W]
Electrical
Power Requirements AC 110-240 V 50 Hz / 60 Hz
Power Consumption 385 W
Power off condition Approx. 0.3 W
Standby condition Approx. 0.5 W
Mechanical
Dimensions (W H D) 1684 x 962 x 96 mm (66.28" x 37.87" x 3.76")
Weight 37.3 kg (82.2 lbs.)
Bezel width 14.9 mm (0.59") (T/R/L/B)
Wall-hanging pitch VESA Compliant 600 x 400 mm (23.6" x 15.8"), M8
Orientation Landscape/Portrait
Tilting Angle 0 - 20 degrees forward/backward with landscape/portrait setting
Operating time 18 h/day
Operating environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude.
Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
