Rose Electronics 16-Port multi-platform, single-user KVM over IP Switch

UER-1R16UB/2

$2,699.00$2,361.63
Save $337.37
FREE Shipping on orders over $100

Rose UltraView Remote KVM UER-1R16UB/2
The Rose UER-1R16UB/2 represents the latest state-of-the-art technology in KVM access and CPU switching over IP. The UER-1R16UB/2 is today's solution for remote server management. The simple-to-use on-screen menu of the UltraView Remote provides fast and easy access to any computer, locally, over your network, or from anywhere in the world. This makes for easy management of your computer system. The Rose UltraView Remote UER-1R16UB/2 can connect to 16 computers or servers. As your business expands, so can the UltraView Remote. All models are expandable. Regardless of your KVM needs, you will find that the UltraView Remote family of IP KVMs can meet your system growth requirements. When the time comes to add more computers, rest assured that the UltraView Remote can be easily expanded by chaining the units together. You can expand the UltraView Pro to 256 computers (when chaining 16-port versions). The Rose UltraView Remote Multi-Platform supports PC, Apple ADB, Sun, USB, and UNIX computers in a mixed environment.

Rose UltraView Remote KVM (UER-1R16UB) Features & Benefits:

  • Uses UltraCable for superior cable management with lengths up to 100 feet
  • Video resolution up to 1600 x 1200
  • On-screen menu for configuration and computer selection
  • Security system with configuration and user passwords prevents unauthorized configuration and user access
  • Up to 4 remote users can connect to the remote user port simultaneously. Users connected to the remote user port share all functions
  • Switch computers using simple keyboard commands, using the on-screen menu, or a serial input to the RS232 port
  • Multi-platform model converts PC, UNIX, Apple, or Sun keyboard and mouse data to any platform, Multi-Platform models also support audio or serial pass through (Touchscreen)
  • Built-in daisy-chaining to support up to 256 computers
  • Pre-configuration feature allows installation without powering down servers or computers

Rose UltraView Remote KVM (UER-1R16UB)

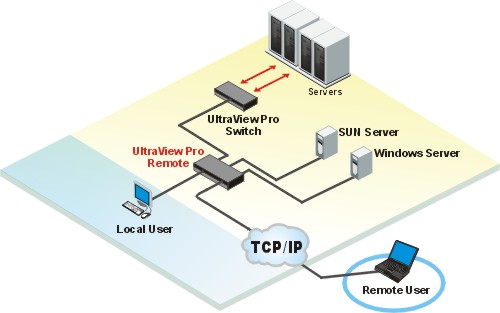

Rose UltraView Remote KVM (UER-1R16UB) Function Diagram

Rose UltraView Remote KVM (UER-1R16UB) Specifications:

Mechanical
Height 3.50" / 9.0cm
Width 16.7" / 42.4cm
Depth15.2" / 38.6cm
Weight14 Lbs. (6.4 kg.)
Environmental0°-45°C, 5%-80%
non-condensing RH
PowerAuto Switching, 90 - 240 VAC, 60 watts
Connectors

Power: IEC 320 standard receptacle
CPU/KVM connector: DB25 female
RS232: RJ12 (6-pin)
Network: RJ45

Other

Video Bandwidth 150 MHz
Video sync Accepts HV, composite, and sync-on-green

Approved Agency FCC, CE
