USB-C Dual-Head DisplayPort/HDMI Docking Station, Driverless, TAA & BAA Compliant
UK12PHC-N
Save $125.00
High Sec Labs UK12PHC-N all-in-one universal USB-C Docking Station is the ideal peripheral connectivity solution for modern computers. USB-C is a single connector allowing the transfer of Video, USB, Power and Network. HSL's innovative DP/HDMI combo connector, dual-monitor docking station leverages the flexibility of USB-C creating an easy to use solution connecting devices to HSL's KVMs or a work station with support for high data transfer speeds over LAN, fast charging for connected devices and USB ports for peripheral devices.

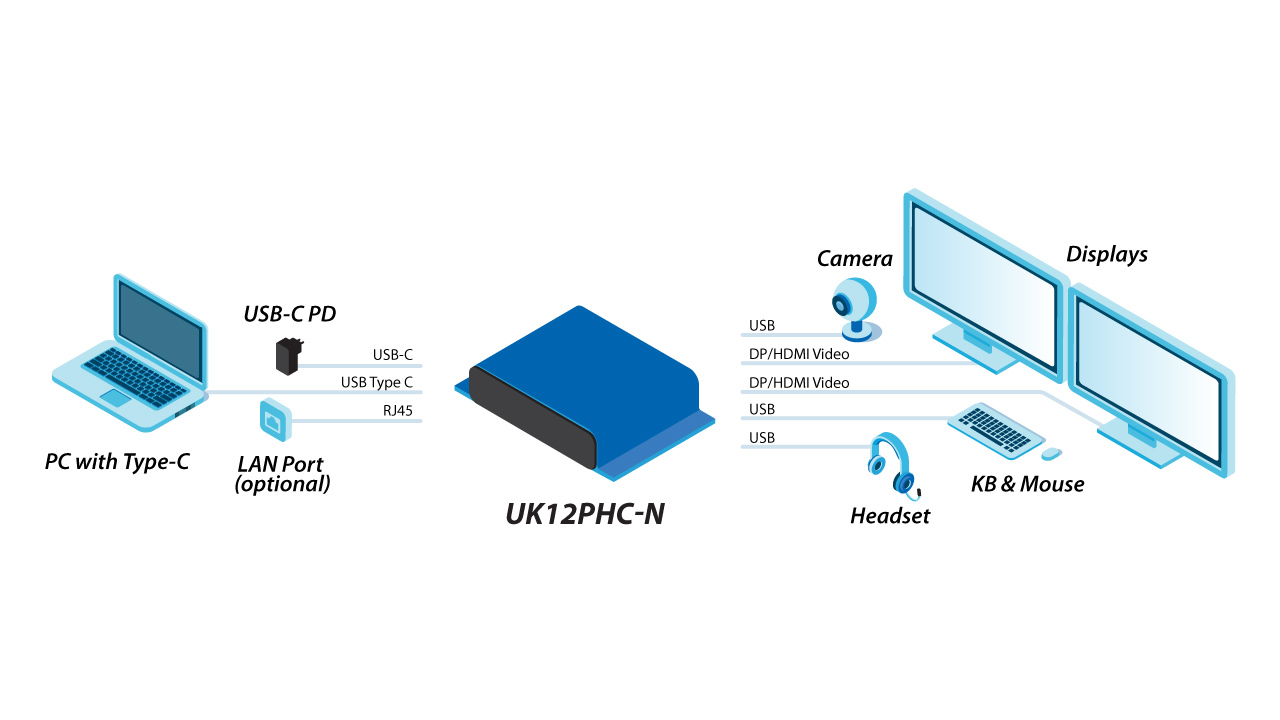

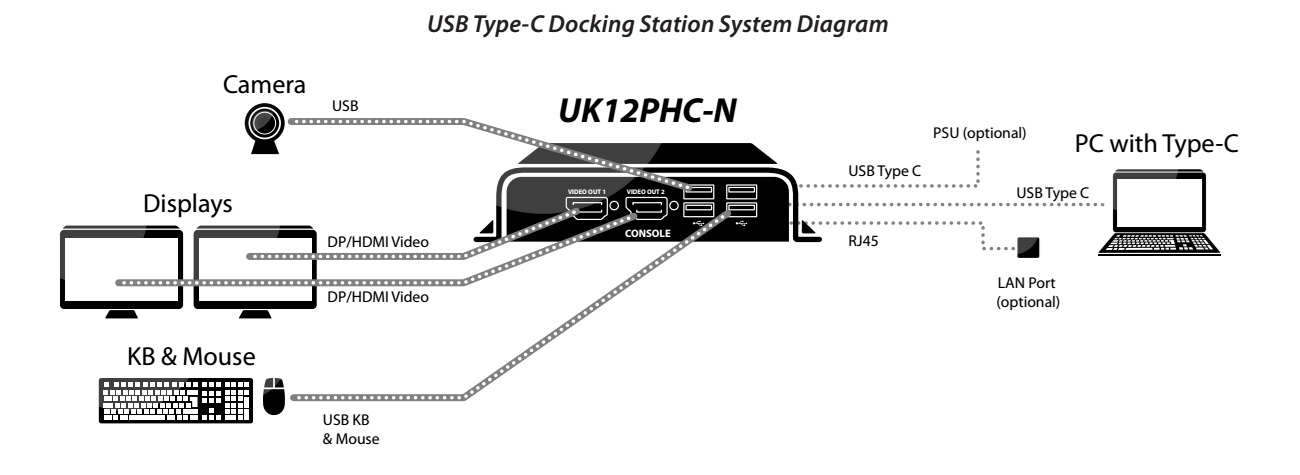

The UK12PHC-N USB-C Docking station is universal and driverless, making it compatible with any operating system (Windows/Mac/Linux) with USB-C connectivity supporting DisplayPort Alt Mode and Power Delivery and can be easily integrated with HSL's rich portfolio of KVM switching solutions. The desktop docking station includes four Type A USB ports for a wide range of computer peripherals along with a LAN interface and support for a dual monitor workstation using two innovative combo HDMI /DisplayPort connection ports.
UK12PHC-N USB-C docking Station Features and Benefits
- Made in the USA: TAA and BAA compliance assuring the highest supply chain security and quality.

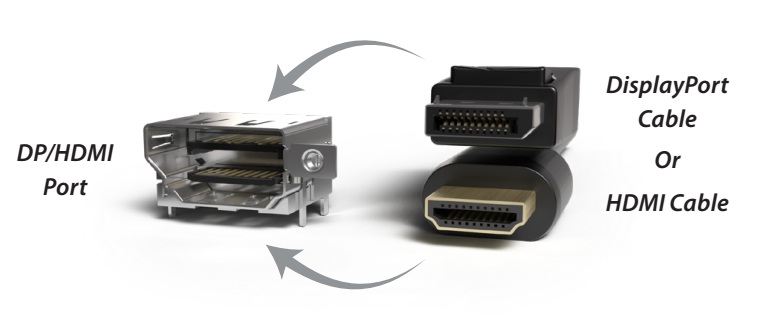

- Unique Dual DP\HDMI connector: Provides flexible connections and the dynamic use of displays with two dual connectors allowing both DP and HDMI.
- Driverless, USB-C Connectivity with 100W Power Delivery (PD 3.0): No driver installation required to access 100W Power Delivery (PD 3.0). The best docking station for all Windows OS laptops with a USB-C port supporting DisplayPort Alt Mode and Power Delivery.
- Numerous Video Ports: With two HDMI\DisplayPort ports, the user can select the right connections and resolutions for their needs. Resolutions supported vary by the device connected but are up to 4K 60HZ for single head connections and 4K 30HZ for dual head connections.
- Rugged Design: Specifically designed for under the table mounting.
UK12PHC-N Package Contents
- (1) USB-C Dual Video Driverless Docking Station
- (1) Driverless 100W Power Delivery (PD 3.0), charger
- (1) 2-year standard warranty
UK12PHC-N Resources
Dual-Head USB-C Docking Station Datasheet (PDF)
USB-C Docking Solution brochure (PDF)
High Sec Labs UK12PHC-N Specifications
| Mechanical | |
| Dimensions | 145 x 105 x 28 mm 5.8 x 4.2 x 1.1 inches |
| Weight | 0.3 kg (0.64 lbs) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Operating: 20 to 80% non-condensing Storage: 10 to 90% non-condensing |
| Features | |
| Input Interface (Host) | LAN + Type-C |
| Output Interface (Video) | DP/HDMI Dual-head 4K30Hz DP/HDMI Single-head 4K60Hz |
| USB | USB 2.0 4-Port HUB |
| Charging | PD 3.0 compliant up to 100W |
| General Info | |
| Supported OS | Windows, Linux, Mac |
| Made In | TAA, BAA compliant |
| Product life-cycle | 10 years |
| Warranty | 2 Years |
The UK12PHC-N USB-C Dual Video Driverless Docking Station is also known as the CPN30833.
