Rose UltraLink Quad Remote Access over IP. Four Users, LAN, WAN



For upgrade or replacement options: Contact Us

The Rose Electronics UltraLink UL-QV3 is a Digital KVM Over IP unit with Quad access which allows you to access your computers and servers locally or across your network.

The UltraLink is easy to install and configure. Connect the unit, assign an IP address, install the remote viewer software, and it's ready to use.  The sophisticated scaling feature allows you to position any size image of your server's video anywhere on your screen. With this feature, you can monitor servers while working on other tasks in another window.  Network workstations can connect to multiple UltraLinks and display each connection in a separate viewer window.

The dual access IP KVM model contains two completely independent units in a rack mountable chassis. Typically, the dual and quad models are connected to a KVM switch. This provides multiple users remote access to the servers.

Rose Digital KVM IP Features:

  • Local KVM port for configuring the UltraLink and direct local access to the computer or KVM switch
  • Connect to a remote computer, server, or KVM switch directly or over a network
  • Resolution up to 1280 x 1024 @ 75hz
  • Solid-state embedded unit for maximum reliability
  • Compatible with all Rose Electronics KVM products and most other KVM devices
  • Easy to install and configure
  • Scaling of computer images reduces the amount of data sent and permits fast screen updates over slow links (Modes: scaled, scrolled, or full-screen)
  • Password security prevents unauthorized configuration and access
  • User ID and password required for remote access
  • Remote client application is simple to install, use, and requires no licensing
  • Front panel shows power and current connected input port (Network, serial, or local KVM)

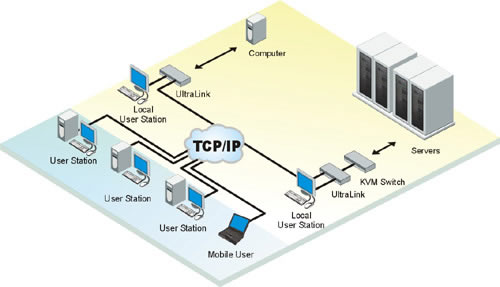

Rose UltraLink Digital KVM IP Application Diagram
Rose UltraLink Digital KVM IP Application Diagram

Rose UL-QV3 Specifications:

Height 3.50 in. (8.90 cm.)
Width 16.7 in. (42.4 cm.)
Depth 9.7 in. (24.6 cm.)
Weight 11 lbs. (5 kg.)
Environmental 0°- 45°C / 32°- 113°F,
5 - 80% non-condensing RH
Power Auto Switching, 90 - 240 VAC, 130 watts
Power IEC 320 standard receptacle
Local KVM Video - HD15F, Keyboard - MD6F, Mouse - MD6F
Switch or computer DB25F
Ethernet port RJ45
Serial port DB9M
Video Bandwidth 150Mhz
Chassis Electro galvanized steel, black powder coated (top cover)
Controls Power On / Off Switch
Indicators LEDs: Power, Net, Serial, Local, Ethernet link,
10/100MB Ethernet speed
Approvals FCC, UL, cUL, TUV, CE, VCCI
