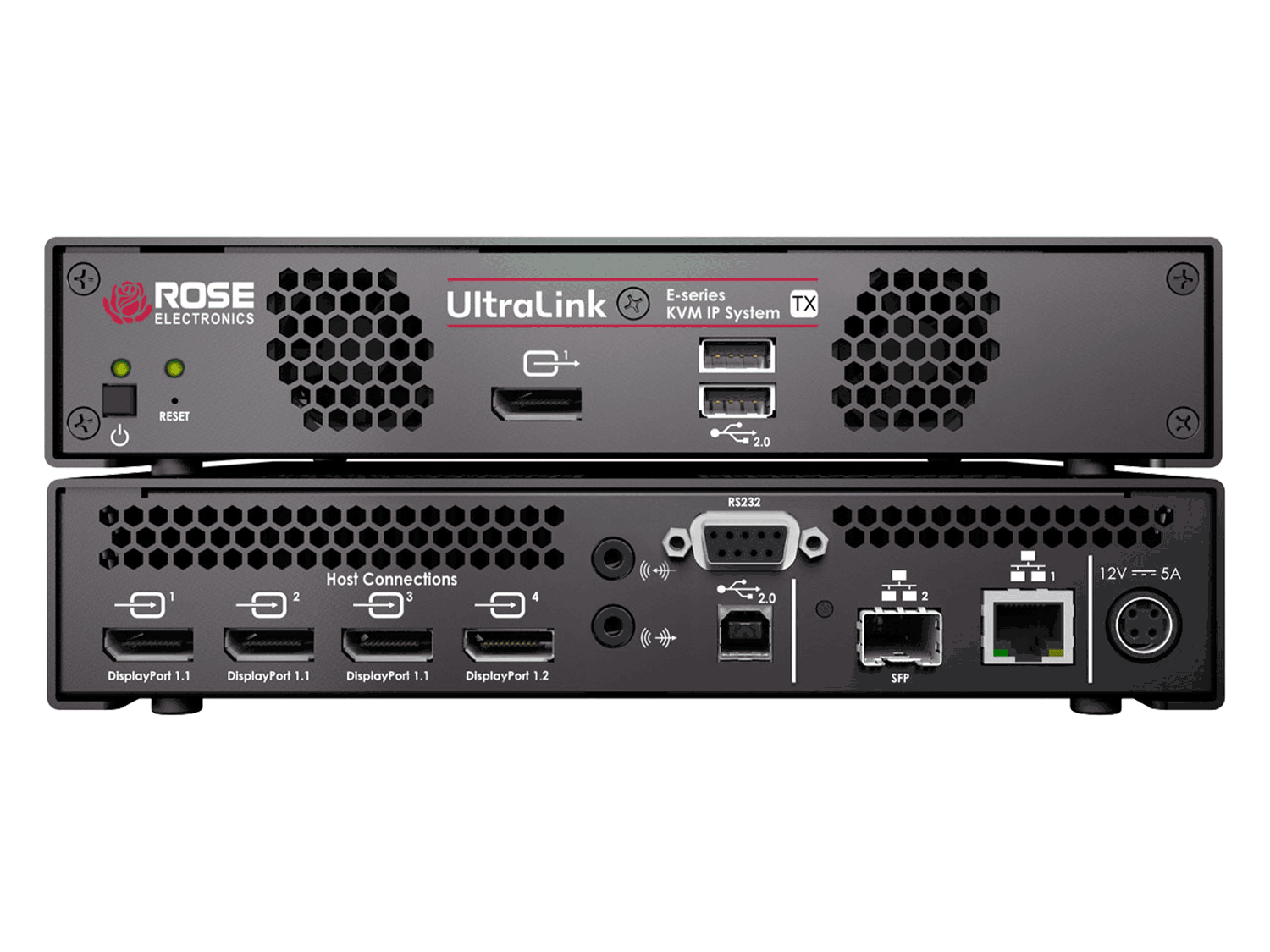

4-Port Transmitter unit, 3 DisplayPort 1.1 and 1 DisplayPort 1.2, 6 USB type-A, resolution up to 4K/60 4:4:4

ULE-TXA4

$3,499.99$2,974.99
Save $525.00
FREE Shipping on orders over $100

About Rose UltraLink E-series

UltraLink E-series

The UltraLink E-Series is a scalable, highperformance KVM and AV extension and switching system. You may run them point-to-point-as an extender by connecting transmitter and receiver units directly together with CAT6 or fiber.

As a distributed matrix switching system, the UltraLink E-Series transmitters and receivers are connected to video sources, computers, displays, and peripherals as well as a standard 1Gbps Ethernet switch with CAT6 or fiber. Secure switching operation is easily controlled through the provided system manager software or through hot keys and OSD with thumbnail preview.

This robust system delivers DisplayPort 1.2 4K60 single-head video, 4K30 dual-head video, or 1080p quad-head video in 4:4:4 color with digital embedded audio. Accompanying signals include analog stereo audio in and out, USB 2.0, and RS232.

The UltraLink E-Series system is designed for simple installation, secure encrypted connectivity, reliable performance, scalable flexibility, and intuitive operation. This product is suitable in a wide range of applications such as control rooms, network operation centers, healthcare facilities, military and government sites, transportation venues, broadcast studios, and industrial environments.

E-series ULE-TXA4 Features & Benefits

  • Available in 2-port or 4-port as compact transmitter/receiver units or PCIe transmitter cards for installation in a PC chassis
  • USB 2.0 works with standard keyboard and mouse as well as flash drives and other devices
  • Low network bandwidth simplifies and lowers the cost of network installation
  • Video is encrypted for increased security
  • Seamless switching function presents new video instantly
  • OSD provides user login and switching capability with thumbnail preview function
  • Based on user login, access to computers or type of USB device can be restricted
  • USB keyboard and mouse can be programmed for shared access or single user only
  • Programmable hot keys allow switching with simple keyboard sequences
  • Integrates with existing networking equipment and standard Gigabit Ethernet infrastructure
  • Compatible with Microsoft® Active Directory Services for user authentication, and with SNMP for remote monitoring
  • Rack mount and HDMI or VGA converter options available

E-Series ULE-TXA4 Networked Mode

E-series ULE-RXA4 Networked Mode

E-Series ULE-TXA4 Point-to-Point Mode

E-series ULE-RXA4 Point-to-Point Mode


E-series ULE-TXA4 Applications

  • The UltraLink E-Series can be deployed as a point-topoint extender or as a networked matrix switch on a Gigabit Ethernet network.
  • The UltraLink E-Series can support a dual-head or quad-head work station over a single CAT6 or fiber cable with single keyboard/mouse control.
  • Create a scalable KVM matrix switch over IP and add single, dual, or quad-head work stations as required with any user able to switch to any host PC, subject to configured access permissions.

Security Features

  • Non-reprogrammable ROM
  • Active Anti-tamper switches
  • Long-life internal Anti-tampering battery
  • External tamper-evident seals
  • Keyboard, Mouse and Video emulation
  • Absolute isolation - No data leakage between ports
  • Certified by NIAP, the latest Common Criteria (Protection Profile for Peripheral Sharing Switch Version 3.0)

DATA SHEET

MANUAL

Rose E-series ULE-TXA4 Technical Specifications

Description
Dimensions WxDxH 8.53" x 7.45" x 1.68" (1RU)
DisplayPort 1.1 Ports 1, 2, 3
DisplayPort 1.2 Port 4
Resolution (Maximum) 1 x 3840x2160 @ 60Hz
2 x 3840x2160 @ 30Hz
2 x 2560x1600 @ 60Hz
3 x 1920x1200 @ 60Hz
4 x 1920x1080 @ 60hz
Color Space YUV 4:4:4/RGB 8:8:8
DP (In) Connectors 4 x DP
DP (Out) Connectors 1 x DP (local)
Audio (In) Connectors 1 x 3.5mm
Audio (Out) Connectors 1 x 3.5mm
Digital Audio Uses embedded digital audio through DisplayPort on transmitters. The receiver units have the option to de-embed the digital audio and convert to analog audio.
Serial RS-232 1 x DB9 (F)
USB2.0 1 x USB-B (2.0)
2 x USB-A(2.0)
Network port 1 x RJ45 TX
1 x SFP cage (accepts optional MM/SM module)
Networking Interface 1000 Base-T Ethernet
CAT6 Cable Distance Up to 328ft, 100 meters
Multimode fiber cable OM2, OM3, OM4 (50/125µm) 1894ft, 550 meters, OM1 (62.5/125µm) 902ft, 275 meters
Singlemode fiber cable OS1, OS2(9,125µm): 3.10 miles, 5 Km
External power adapter Input: 100V to 240V AC, 50/60Hz Output: +12V DC, 5A
Output Connector DIN 4-pin female locking connector
Typical power 44W
Controls Status LED indicators. On/Off and recessed reset button
Laser emissions 850µm laser compliant to 21CFR, subpart J, Class 1 (MM fiber only)
Operating Temperature 32°F-104°F (0°C-45°C)
Storage Temperature -40°F-158°F (-40°C-70°C)
Operating Humidity 20 to 80% non-condensing
Storage Humidity 5 to 95% non-condensing
Compliance Class A: CE, FCC, ICES-3, KC, RCM, VCCI
