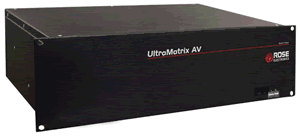

UltraMatrix Audio/Video, 16x32 AV Matrix Switch, VGA

UMA-16VX32V

$14,999.00

Discontinued
For upgrade or replacement options: Contact Us

The Rose UMA-16VX32V is an UltraMatrix Audio/Video, 16x32 AV Matrix Switch, VGA. It switches video and audio from any input to any output. The UMA-08VX08V-A1 supports resolutions up to 1600 x 1200 along with supporting VGA, SVGA, XGA, RGBHV, SOG, and more. It records up to 50 macros for switching/playback.  This product is designed especially for control rooms, audio/video presentations, security centers and many other digital media applications. It It easily connects any video / audio source to any video / audio output using the switching matrix software. It records your video and audio switching scheme and save it in a macro for on demand use. This product also displays the switching matrix panel and where the source and destination cross, click on that point and the video and audio are instantly switched.

Rose UMA-16VX32V Features:

  • Extends the monitor and speakers up to 100 feet from the unit
  • Supports all video formats
    (VGA / SVGA / XGA / RGBHV / SOG and others)
  • Video bandwidth of 200MHz
  • Supports resolutions up to 1600 x 1200
  • Save and playback up to 50 different Macro routing sequences
  • Click and switch intuitive software for audio and video switching
  • Add additional units to increase the number of monitors (up to 64)
  • Windows based software control for quick and easy switching

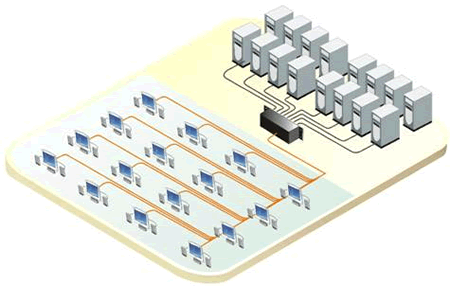

Rose UMA-16VX32V Application Diagram

Rose UMA-16VX32V Application Diagram

Rose UMA-16VX32V Specifications:

Mechanical
Width 19 in. (48 cm.)
Height 5.24 in. (13.3 cm.)
Depth 11.3 in. (28.6 cm.)
Weight 20 lbs. (7.5 kg.)
Resolution Up to 1600 x 1200
Bandwidth 200 MHz
Video
Input Signal 1 Volt pk-pk
Input Impedance 75
Ouptut Impedance 100
Audio
Freq. Response 20 Hz to 20 KHz +/- 0.5dB
Signal 15KHz 0 dB unbalanced, 100
Connectors Video- HD15F
Audio- 3.5mm stereo audio jack
Power 16 x 16 - 90-230 VAC IEC, 1A 50/60 Hz
8 x 8 90-230 VAC, 3A 50/60Hz to
5VDC power adapter
