The NTI UNIMUX USB KVM switch (UNIMUX-USBV-4O) allows a user to control up to 4 USB computers with one USB keyboard, USB mouse and VGA monitor. The NTI (UNIMUX-USBV-4O) USB KVM switch comes standard with On Screen Display and Rack Mount Kit. The dedicated internal microprocessors of the NTI (UNIMUX-USBV-4O) USB KVM switch emulate keyboard & mouse presence to each attached CPU 100% of the time so all computers boot error-free.
Features of the NTI UNIMUX USB KVM switch (UNIMUX-USBV-4O):
- NTI's patented true autoboot USB switching - all attached USB PCs, MACs and SUNs can be booted simultaneously.
- Compatible with USB-enabled PCs.
- Compatible with SUN Blade 100, SUN 1000, SUN Ray, SUN Fire 280R, SUN Fire V20z, and other USB-enabled SUN computers.
- Compatible with MAC G4/G5 and Xserve. Supports MAC soft (keyboard) power-on.
- Crisp & clear 1900x1200 video resolution.
- Fully compliant with USB standards (1.0, 1.1).
- USB MAC and SUN start-up keys are supported.
- SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
- Available with RS232 Control option.
- Supports international keyboard layouts in auto-detection mode.

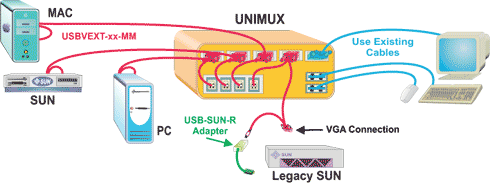

NTI UNIMUX USB KVM switch Diagram
|NTI UNIMUX USB KVM switch |
Female 15-pin HD and female USB Type B connectors.
Supports SUN Blade 100, SUN Blade 1000, SUN Ray, SUN Fire 280R, and SUN Fire V20z.
Supports PCs with USB-enabled OS (Win 98/2000) and USB ports.
Supports PCs with USB-enabled BIOS (legacy USB support) and USB ports.
Supports MAC G4/G5 and Xserve.
Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R.
Crisp & clear 1900x1200 resolution.
Female 15 pin HD connectors.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 MHz.
|110 or 220 VAC at 50 or 60 Hz via AC adapter for 2-, 16- and 32-port models (included).|
|11 or 220 VAC at 50 or 60 Hz via IEC connector for 4 and 8-port models.|
|Female USB Type A connectors.|
|Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse|
|Keyboard & mouse are hot-pluggable.|
|Supports two USB devices directly connected. Supports up to eight USB devices using USB hubs (not included).|
|Operatig temperature:||32°F to 100°F (0°C to 38°C).|
|Storage temperature:||-20°F to 140°F (-30°C to 60°C).|
|Operating and Storage Relative Humidity:||17 - 90% non-condensing RH.|
|Not available on 2-port switches|
|Use the keyboard to command the switch box to select ports or configure the SCAN delay.|
|Front Panel Interface|
|Touch a button and be connected to a computer, or change modes of operation.|
|LEDs indicate currently selected port and mode of operation.|
|On Screen Display (OSD)|
|Select computer by name with the On Screen Display (OSD) option. Not available on 2-port switch.|
|Use keyboard or mouse o operate the switch from menus superimposed onto the monitor.|
|Shows names of computer on cascaded switches up to 152 ports.|
|Names can be up to 12 characters long.|
|Power status of each computer is displayed.|
|Helps screens assists user with the OSD.|
|Modify the size and position of the OSD.|
|OSD is built into the switch no need to install additional hardware or software.|
|OS and software-independent.|
|Advanced security included wit OSD option.|
|Each user password can be up to13 characters long, and each switch can store up to 63 users.|
|Administrator can enable or disable all security features and select which computers each user can access.|
|Once security is enabled, an user or administrator must login in order to access any of the computers connected to the switch.|
Also known as the NTI UNIMUX-USBV-40
