8-Port High Density VGA USB KVM Switch w/ Additional Transparent USB Connectors


Save $92.93
FREE Shipping on orders over $100

The UNIMUX High Density VGA USB KVM Switch allows a user to control up to 8 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard and mouse presence to each attached CPU 100% of the time so all computers boot error-free.

Product Features

  • The High Density Switch saves rack space
    • 8-port switch is 1RU in height.
    • Rackmount kit included.
  • Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.
  • Compatible with USB computers (PC, SUN and MAC).
  • Crisp and clear 1920x1200 (WUXGA) video resolution.
  • Equipped with OSD, RS232, and Ethernet.
  • High quality steel construction.
  • Flash upgradeable.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • USB Support:
    • Two transparent USB ports
    • Supports any two USB 1.1 (low/full speed) devices, in addition to keyboard and mouse, such as a touch screen monitor, interactive white board, or CAC card reader.
    • USB only switches - no VGA video.

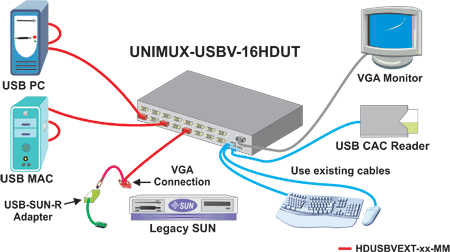

Product Use Diagram

Product Specifications

HostsFemale 15-pin HD connectors.
Supports USB computers with VGA video.
Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R.
MonitorCrisp and clear 1920x1200 resolution.
One female 15-pin HD connector.
A multiscan VGA monitor is required to display the different video outputs from different platforms.
Bandwidth is 150 MHz.
Power110 or 220 VAC at 50 or 60 Hz via IEC connector.
Dimensions W x D x H16.66" x 7.58" x 1.75" (without supplied rackmount kit)
19" x 7.58" x 1.75" (with supplied rackmount kit)
EnvironmentalOperating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -4 to 140°F (-20 to 60°C)
Operating/storage relative humidity: 20 to 90% non-condensing RH.
K/M DevicesTwo female USB Type A connectors for keyboard and mouse.
USB DevicesTwo additional transparent female USB Type A connectors for USB 1.1 (low/full speed) devices - USB touch screen monitor, CAC card reader, interactive whiteboard, barcode scanner, etc.
Regulatory ApprovalsCE, RoHS, TAA
WarrantyTwo Years
