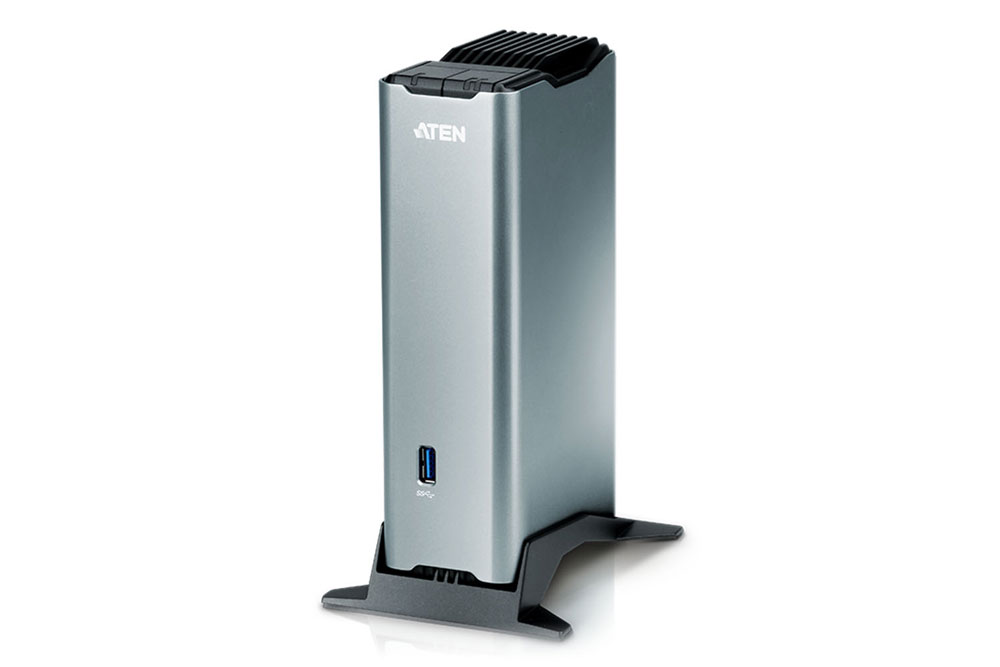

2-Port Thunderbolt 2 KVM Switch / Docking Station



For upgrade or replacement options: Contact Us

Model: Thunderbolt 2

The new Aten US7220 Thunderbolt 2 KVM Docking Station is a dual-computer KVM Switch / docking station for your workspace. You can share Thunderbolt devices, a dual-monitor setup and USB peripherals through a single cable, directly to two computers.

The US7220 enables two Thunderbolt 2- enabled computers to share peripherals with ultra-high 20 Gbps data transfer rates. As a KVM sharing switch it allows you to easily switch the keyboard, video, mouse and peripherals between two computers with the push of a button. With the ability to daisy-chain up to five Thunderbolt devices, the US7220 connects up to 11 peripherals including Thunderbolt monitors and video capture devices; plus USB drives, printers, high-definition cameras, keyboards, mice and more.

The ATEN Thunderbolt 2 KVM Docking Station is the ideal choice for those who want the flexibility of laptop computing - with the performance, sharing and high-definition/dual-monitor capabilities of a full workstation.

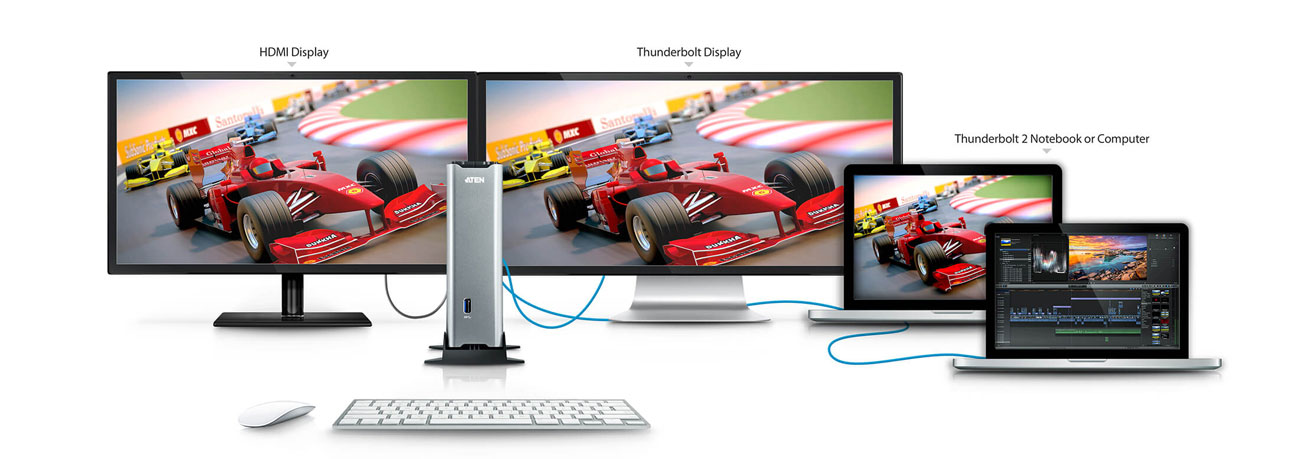

Aten US7220 Application Diagram

Features & Benefits

  • Thunderbolt 2.0 compliant with data transfer rates up to 20 Gbps
  • Connect 11 devices to a laptop through a single Thunderbolt cable*
  • Two Thunderbolt ports connect two Thunderbolt hosts
  • One Thunderbolt port connects a Thunderbolt device and daisy-chains up to 5 additional devices
  • Gigabit Ethernet port
  • HDMI port supports an additional HDMI display
  • Supports three USB 3.1 Gen 1 ports with data transfer rates up to 5 Gbps
  • Two USB 2.0 ports with data transfer rates up to 480 Mbps
  • Supports high-definition audio signals with Dolby and DTS pass-through via Mini TOSLINK; and 2.1 channel audio via 3.5 mm audio cable
  • Analog/Digital audio line-in and line-out
  • Supports HDMI 1.4b with 4K (UHD) resolution
  • Supports DisplayPort 1.2 with 4K (UHD) resolution
  • eSATA port for storage devices

Note: Additional Thunderbolt cable sold separately.

Aten US7220 industry's first Thunderbolt 3 KVM Switch Docking Station

Introducing the industry's first Thunderbolt 3 KVM Switch Docking Station

ATEN's US7220 leads the way as a flexible, forward-thinking solution that leverages state-of-the-art technology to allow you to keep pace with the ever-increasing high-performance demands of your digital media work environment.

Aten US7220 Dual Monitor Thunderbolt 2 KVM Switch

Natively supports two 4K displays

The ATEN Thunderbolt 2 Sharing Switch natively supports two 4K displays - one HDMI and one Thunderbolt - so you can simultaneously enjoy astounding video quality at ultra-high resolutions and an unrestricted dual-view multimedia experience with blazing data transfer speeds, whether you are watching videos, editing digital media, designing graphics - anything that demands high-definition visuals.

  • Blazing-Fast Data Transfer Speed

    Blazing-Fast Data Transfer Speed

    Delivering faster-than ever access to all your digital media storage, high-speed file transfers and simultaneous dual-view 4k video output, the US7220 consolidates powerful throughput, video output and charging at state-of-the-art speeds that make sharing hardware resources with another Thunderbolt-enabled computer effortless and convenient.

  • All Your Devices Connected in a Digital Hub

    All Your Devices Connected in a Digital Hub

    The ATEN US7220 Thunderbolt 2 KVM Docking Station also serves as a stylish docking station with expandability that makes it the ideal connectivity hub for any Thunderbolt setup. In addition to the two 4K displays, two Thunderbolt-enabled computers can directly share up to 11 devices and peripherals via the US7220, while up to five additional devices can be daisy-chained from a single Thunderbolt port.

  • Better Clarity and a More Natural Sound

    Better Clarity and a More Natural Sound

    Feel every beat of your music from your multi-channel surround sound speakers by connecting them onto US7220 via an optical TOSLINK cable. Delivering the lossless audio experience not only to your ears but the masterpiece you are composing.

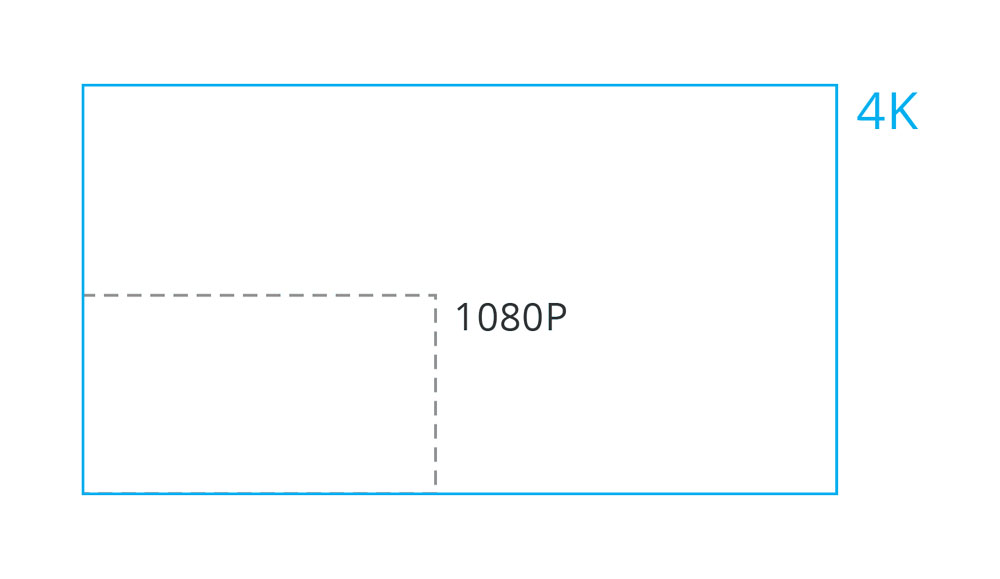

Aten US7220 4K Video vs 1080p Video

Immerse Your Visuals with More Details

The ATEN Thunderbolt 2 Sharing Switch's dual-view display functionality immerses you in the precise colors and fine details of 4K. The next generation of image quality for high definition video, 4K delivers four times as much detail as 1080p Full HD resolutions.

US7220 Diagram

Aten US7220 Diagram Rear

Aten US7220 Package Contents

Whats Included In the Box? Aten US7220 Package Contents

  • (1) US7220 Thunderbolt 2 KVM Docking Station
  • (1) 3ft / 1m Thunderbolt Cable
  • (1) AC Power Adapter
  • (1) Vertical Stand
  • (1) User Instructions
  • (1) 2-Year Warranty

Aten US7220 Specifications

Computer Connections2 Thunderbolt Computers
Device Connections5 Max. (via Thunderbolt Daisy-Chaining)
Computer2 x Thunderbolt 2.0 Female (Black)
Device1 x Thunderbolt 2.0 Female (Black)
3 x USB3.1 Gen1 Type A Female (Blue)
2 x USB2.0 Type A Female (Black)
1 x E-SATA Female (Black)
LAN Ports1 x Gigabit Ethernet Female (Black)
Audio Inputs1 x Stereo / Mini Toslink Jack Female (Black)
Audio Outputs1 x Stereo / Mini Toslink Jack Female (Black)
Power Jack1
Video Output1 x HDMI Female
1 x Thunderbolt / Mini DisplayPort Female*
Port SelectionPort selection button x2
Video ResolutionSingle View:
Mini DisplayPort or Thunderbolt Monitor - 3840*2160@60*
HDMI Monitor- 3840*2160@30

Dual View:
Thunderbolt Monitor- 3840*2160@60
HDMI Monitor - 3840*2160@30

*The US7220 supports either HDMI or Mini DisplayPort, but not both.
Power ConsumptionDC12V:6.78:226BTU
Package Contents1 x 1m Thunderbolt 2.0 Cable
1 x Power Adapter
1 x Vertical Stand
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
Weight0.78 kg ( 1.72 lb )
Dimensions (L x W x H)5.70 x 9.75 x 19.19 cm
(2.24 x 3.84 x 7.56 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
