USB 2.0/1.1, CAT5 Transmitter

USB2M-TX

$149.00$116.10
Save $32.90
FREE Shipping on orders over $100
smartavi_madeinusa

SmartAVI's USB2-Mini Transmitter extends standard USB (Universal Serial Bus) 2.0 signals up to 150 feet using a single Cat5e/6 cable. The USB2-Mini Transmitter supports all USB 2.0 high-speed devices, from keyboards to printers, and will operate on Windows¨, Mac and Linux¨ operating systems. An integrated four-port hub allows for multiple devices to be connected to the USB2-Mini at once. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2-Mini.

Applications

  • Digital Signage
  • Home Networking
  • Remote USB Connections
  • USB Device Sharing
  • USB Electronics Devices
  • Security Systems
  • KVM Extension

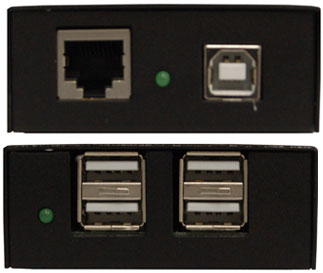

usb2mini

Features

  • Supports all USB 2.0 and 1.1 Devices Transparently (Flash Drives, Printers, Scanners, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Works on Windows, Mac and Linux Operating Systems
  • Integrated Four-Port Hub
  • Bus-Powered Local Unit
  • Power Adaptor for Remote Unit
  • Plug-and-Play

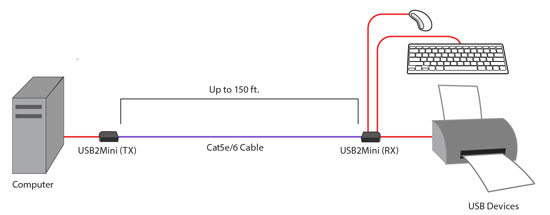

diagram

SmartAVI USB2-MINI Transmitter Specifications

Mechanical
Height 1.5 in. (3.81 cm)
Width 3.37 in. (8.55 cm.)
Depth3.37 in. (8.55 cm.)
Range over Cat5/6150 ft
USB Fixed Data Rate480 Mbps
USB Version Compatibility2.0 and 1.1
USB Connector Type (TX)(1) Type B
USB Connector Type (TX)(4) Type A
UTP Signal TypeLVDS
UTP Connector Unshielded RJ-45
Power 5V DC @ 2mA
Power Connector2.1mm DC jack (center+ve)
UPC / EAN Barcode icon
UPC 813280023719
EAN 0813280023719
