  • USB2NANO-TXS - SmartAVI USB2NANO Transmitter - Click To Enlarge

USB 2.0/1.1 Extender Link Transmitter

USB2NANO-TXS

$75.00$58.44
Save $16.56
FREE Shipping on orders over $100
smartavi_madeinusa

SmartAVI's USB2Nano Transmitter extends standard USB (Universal Serial Bus) 2.0 signals up to 150 feet using a single CAT5 cable. The USB2Nano supports all USB 2.0 high-speed devices, from keyboards to printers, and will operate on Windows¨, Mac and Linux¨ operating systems. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2Nano.

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio
  • PC KVM Extension
  • MAC Keyboard Mouse Extender

Features

  • Uses easy to install, inexpensive CAT5
  • External power adapter for the receiver unit
  • Compact size
  • Plug and play

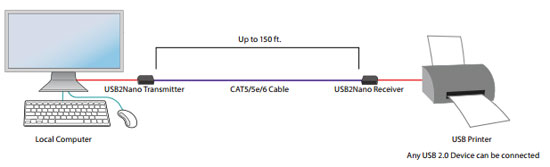

diagram

SmartAVI USB2Nano Transmitter Specifications

Local Upstream PortUSB Type A Male
Local Downstream PortRJ45 Jack
Local PowerBus-powered
Remote Upstream PortUSB Type A Female
Remote Downstream PortRJ45 Jack
Remote Power5VDC-2A
Built In Cable Length1 foot
Interconnect CableStandard CAT5/5e/6 Cable
Max Cable Length150 ft
UPC / EAN Barcode icon
UPC 813280023740
EAN 0813280023740
