SmartAVI USB Xpress CAT5 Extender Link



Recommended replacement: Icron Rover 1850
Alternative options: Contact Us

The SmartAVI USBxpress extends USB up to 150ft using CAT5 cable.

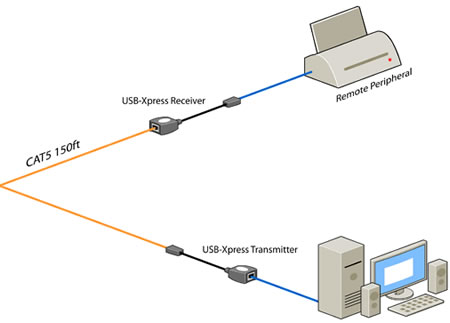

SmartAVI USB-Xpress Extender Application Diagram

SmartAVI USB-Xpress Extender Application Diagram


SmartAVI USBxpress Features:

  • Uses easy to install, inexpensive CAT5

  • Extends USB port up to 150 feet from the computer

  • Fully compliant with USB 1.1 Specifications

  • Supports 1.5 and 12 Mbps data rate

  • Uses a single CAT-5 UTP cable between transmitter and receiver

  • Bus powered transmitter unit

  • External power adapter for the receiver unit

  • Compact size

  • Metal enclosure with mounting inserts

  • Supports MAC, PC and SUN

  • Fully transparent (does not use any emulation)

  • Plug and play


SmartAVI USBxpress Specifications

Mechanical Transmitter Receiver
Weight 1lb 1lb
USB Data
Fixed Data Rate 12 Mbps 12 Mbps
Version Compatibility 1.1 1.1
Connector Type Type A Type B
Via USB 100mA 100mA
Connector ck (center+ve) ck (center+ve)
