• V2V-SDHD-S - SmartAVI V2V-SDHD - Click To Enlarge

HD-SDI/SDI to HDMI and Audio Converter



For upgrade or replacement options: Contact Us

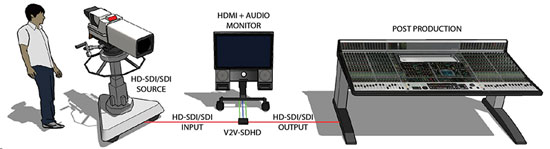

The V2V-SDHD enables you to connect your high-definition HD-SDI or SDI devices to HDMI displays or TVs with embedded HDMI audio. It also features 2-channel RCA audio output for monitoring or connection to external speakers. The V2V-SDHD also features a looping HD-SDI/SDI connection that allows you to daisy chain the signal to other outputs. This means that you can have multiple HDMI displays playing the HD-SDI/SDI signal.


  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio


  • Converts HD-SDI/SDI input signal to one HDMI 1.1 signal with embedded audio
  • Also has 2-channel RCA Audio output
  • Looping HD-SDI/SDI allows for daisy-chaining additional equipment
  • HDMI output : Supports up to 1080p/60HZ
  • HDCP 1.3b protocol compliant
  • Audio formats supported : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Digital with no loss of quality
  • Installs in minutes


SmartAVI V2V-SDHD Specifications

Height 1  in. (2.54 cm)
Width 5 in. (12.7 cm.)
Depth 3.37 in. (8.55 cm.)
FormatSMPTE-259-292-296 Compliant
Input InterfaceBNC
Resolution525i,625i, 720p, 50/59.94/60, 1080i 80/59.94/60
Output InterfaceBNC Loopback Equalized
Signal TypeDTS-HD/Dolby-trueHD/ LPCM7.1/DTS/Dolby-AC3/ DSD
Audio Input2-channel RCA R/L Analog
DVI ComplianceSingle-link DVI-D 1.1
PowerExternal 100-240 VAC/5VDC2A @ 10W
UPC / EAN Barcode icon
UPC 813280020251
EAN 0813280020251
